Description

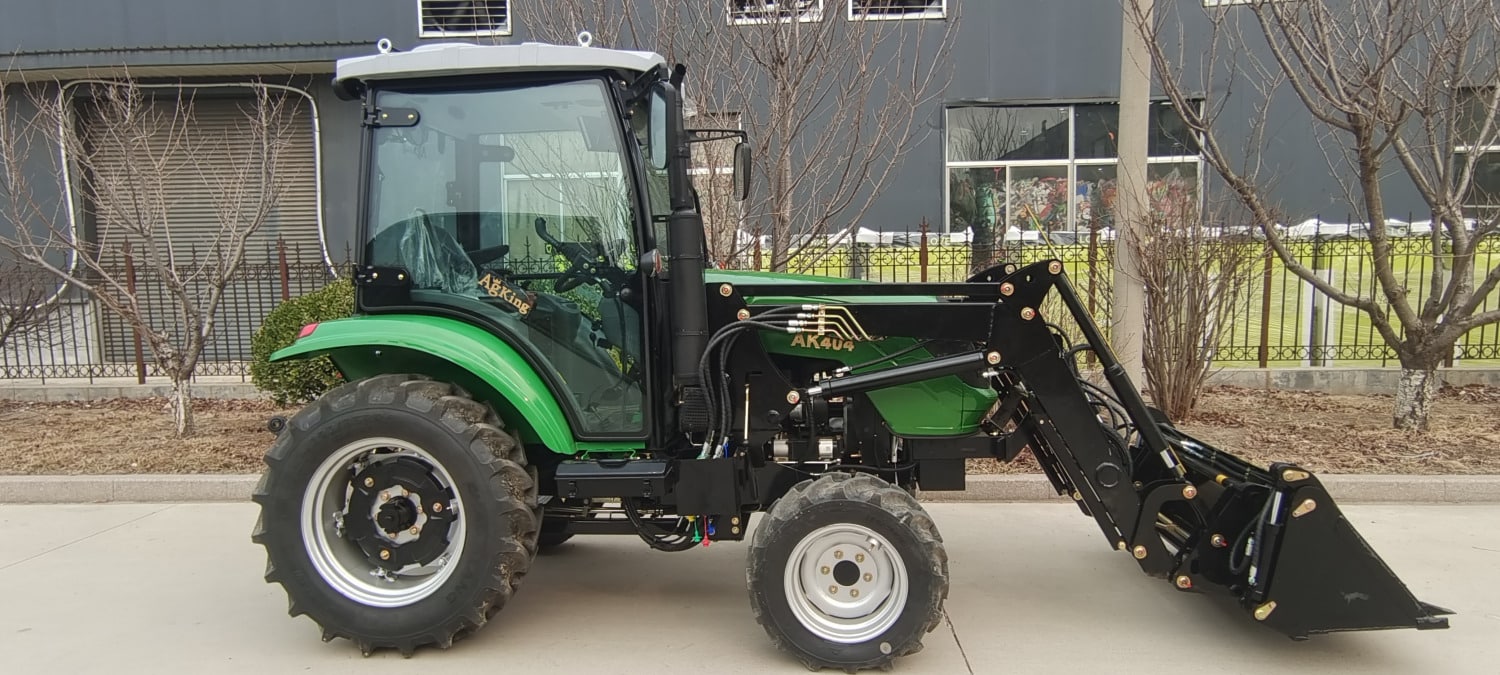

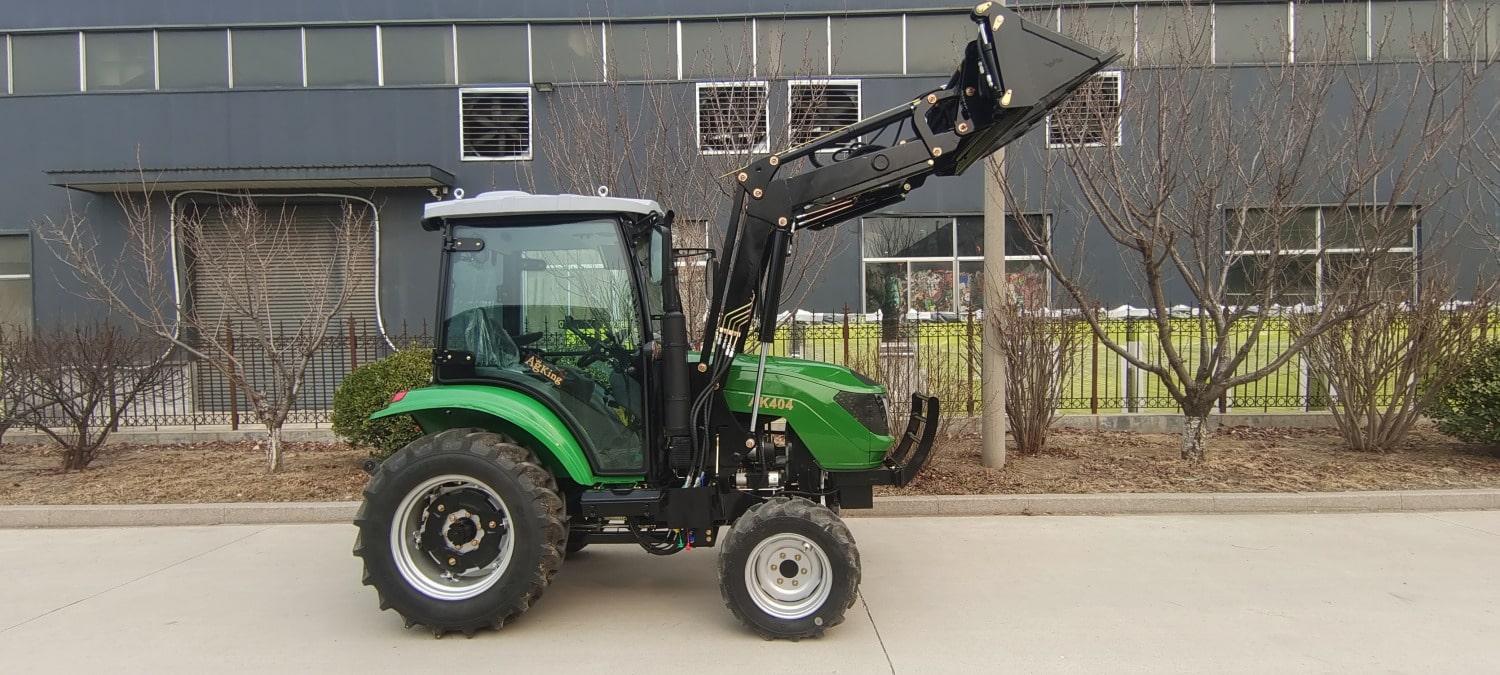

40hp Cabin Tractor AK404C
The 40hp Tractor AK404, featuring 4WD, shuttle shift with 8 fwd and reverse gears, and power steering, is suitable for a wide range of tasks. Additionally, various implement attachments are available. Furthermore, it is fitted with a heavy-duty front end loader and a quick release 4×1 bucket. Consequently, these 40hp Tractor AK404 are perfect for general purpose use, especially for slashing or any PTO work.
Features of 40hp Tractor AK404C

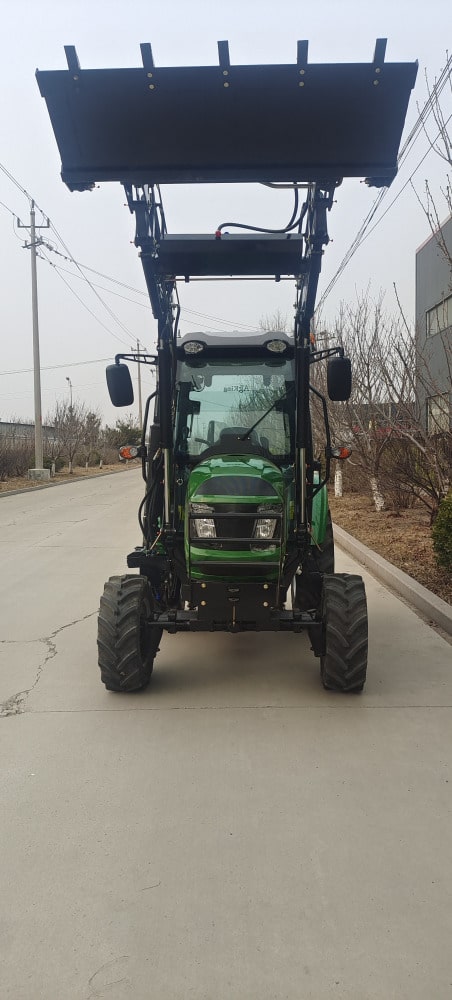

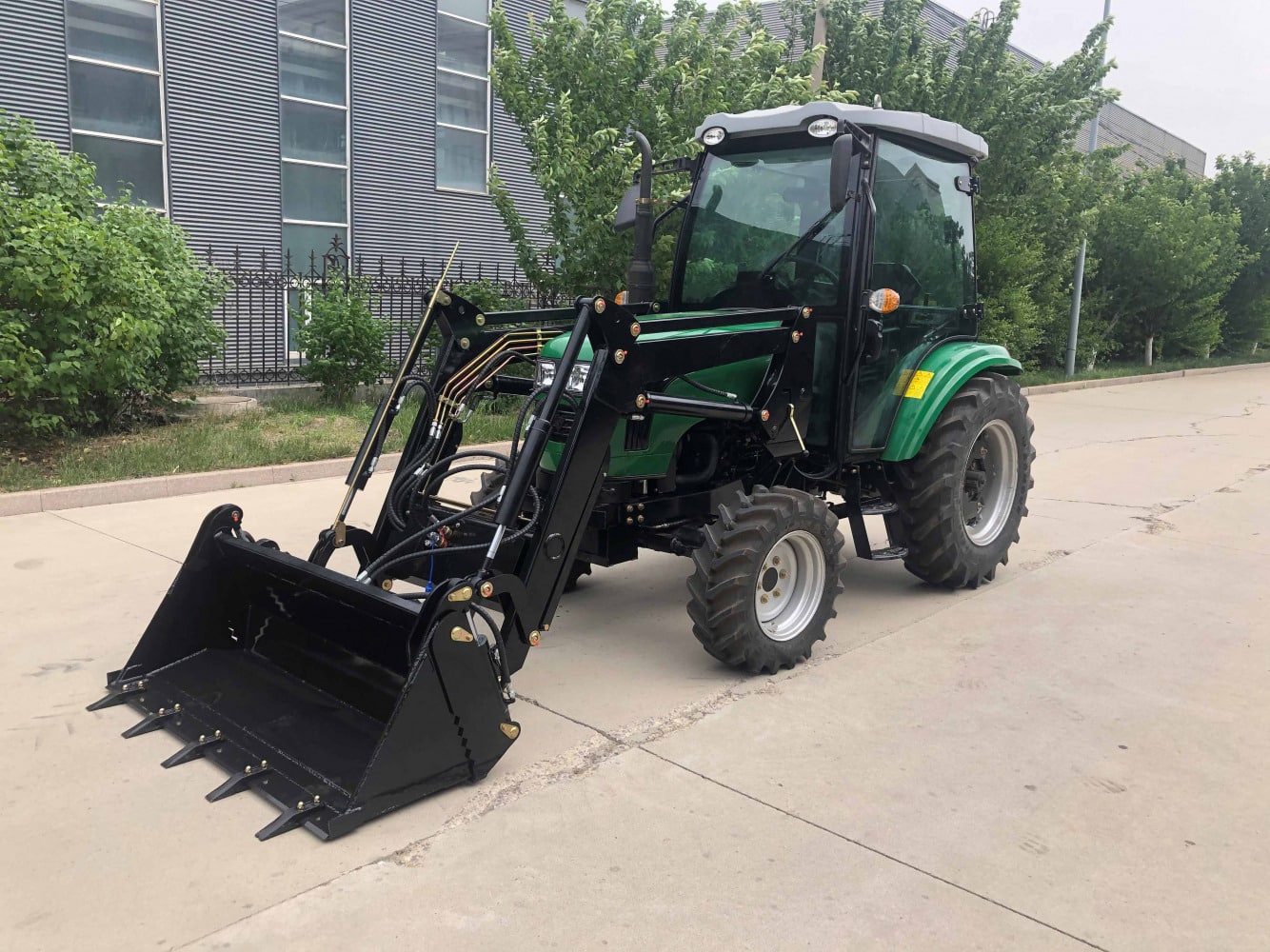

40HP 4WD WITH FRONT END LOADER

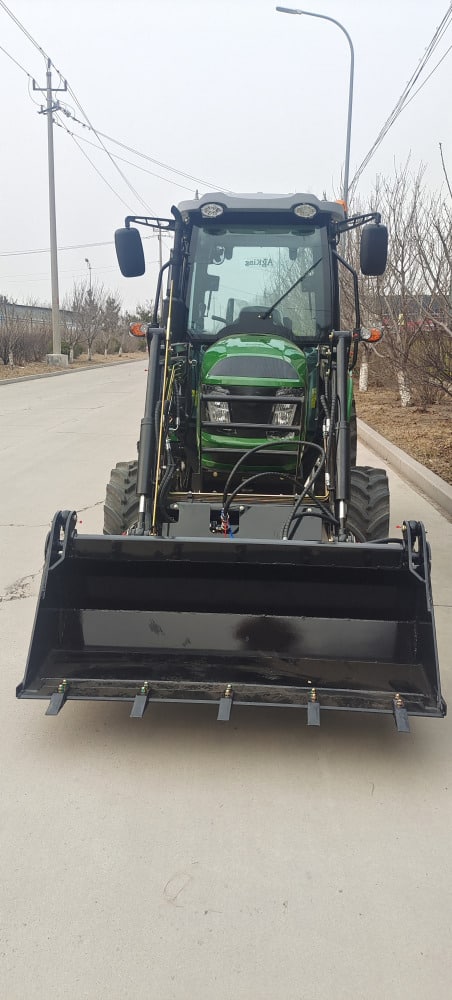

EURO QUICK HITCH FEL 4 IN 1 BUCKET
400KG FRONT END LOADER SAFE LIFT LOAD AND 600KG MAX LIFT LOAD
9 INCH DUAL FUNCTIONAL CLUTCH WITH METAL CERAMIC FRICTION
PLATE DEDICATED HYDRAULIC PUMP

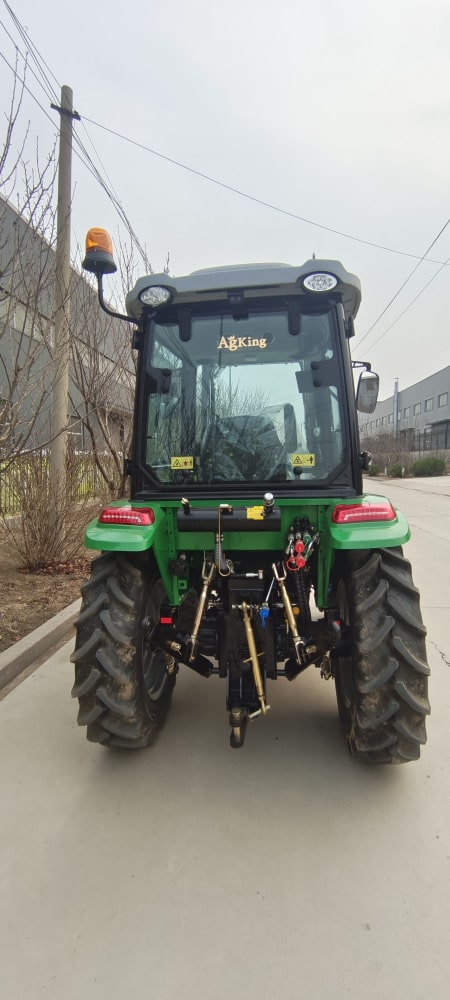

3PL POSITION & DRAFT CONTROL

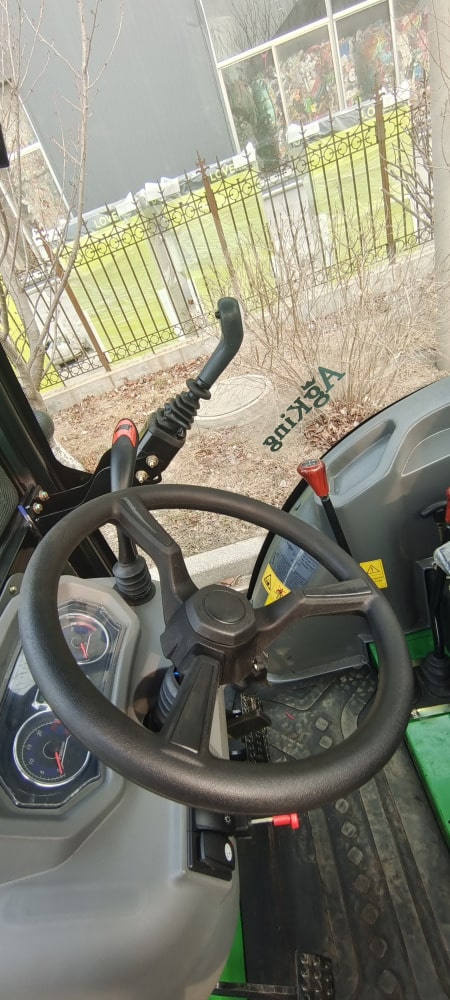

POWER STEERING

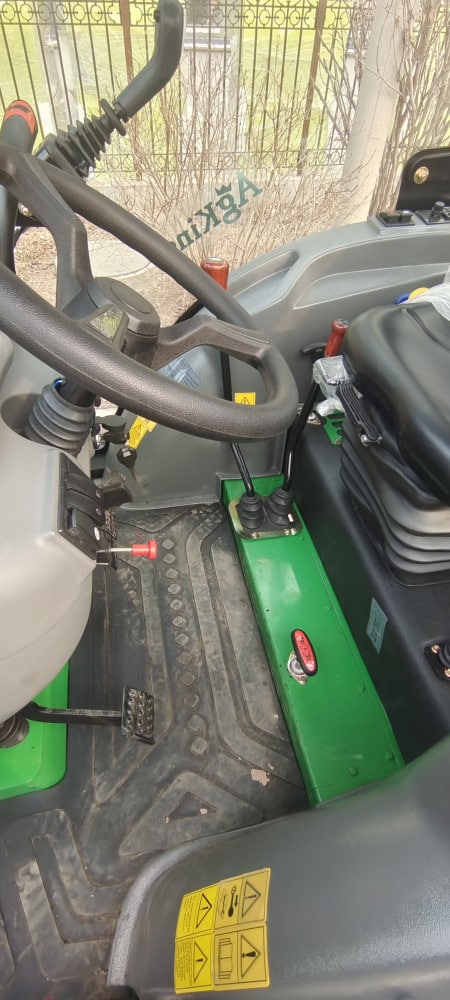

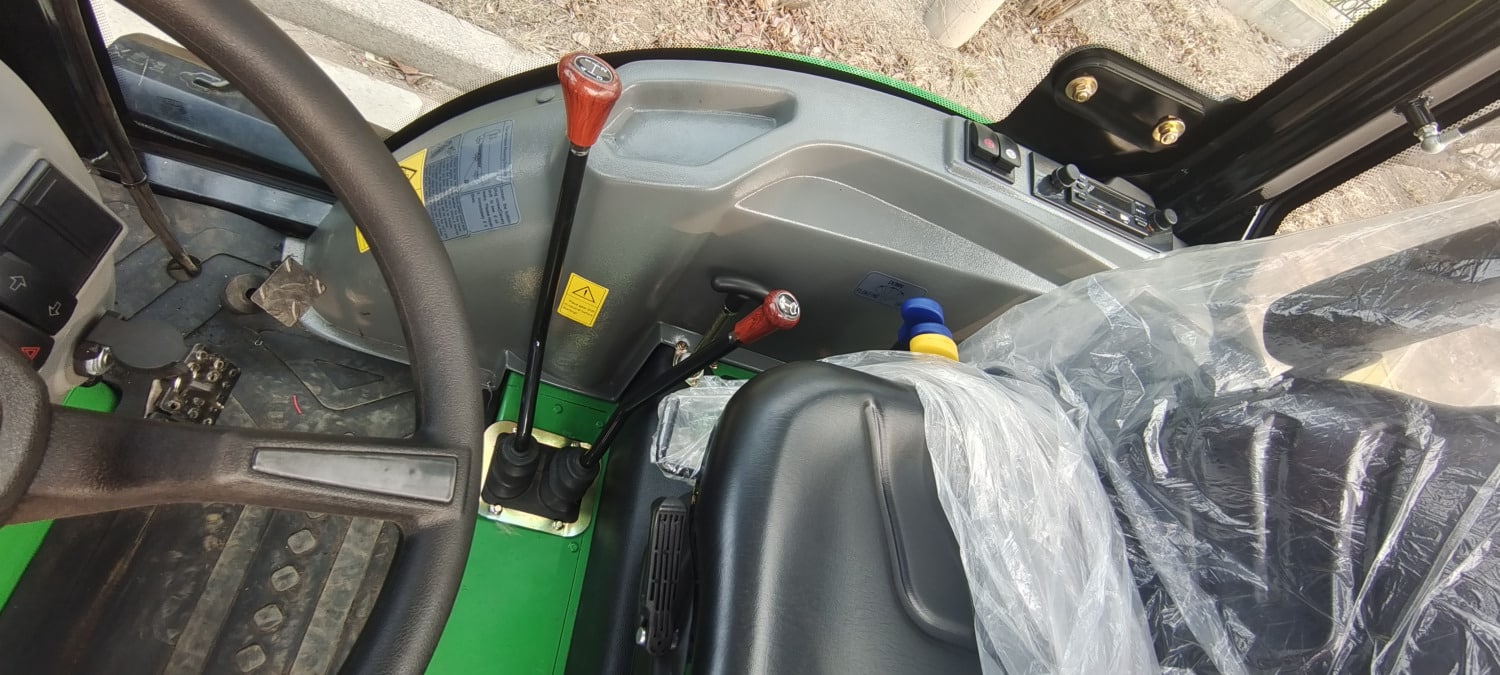

FLAT & CLEAR DECK WITH SIDE PLACED GEAR SELECTIONS
HEAVY DUTY FRONT AXLE & WHEEL RIM

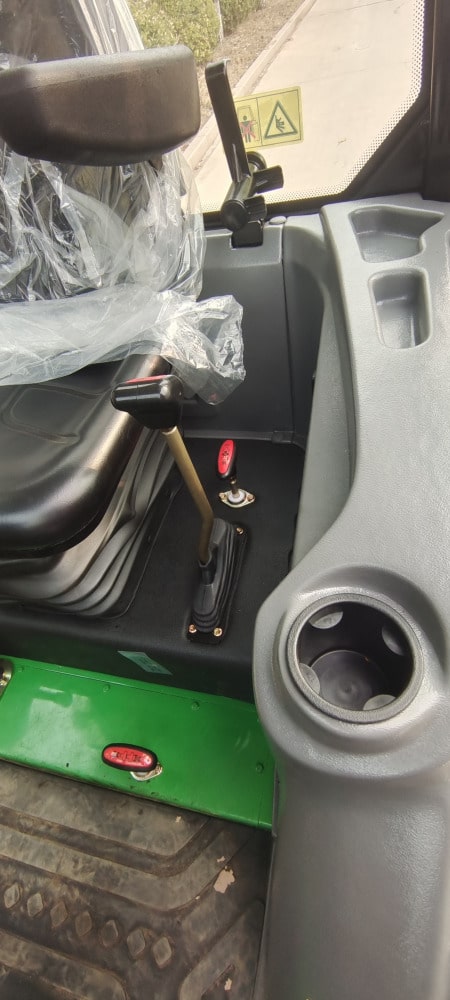

8F+8R SHUTTLE SHIFT WITH SYNCHRO CONTROL
The AK404 is, without a doubt, the best value 40HP tractor available for small acreage owners. Furthermore, it is a tried, proved, and tested tractor sold all over the world. In addition, it is reliable, comfortable to drive, and easy to use; moreover, it comes at a low cost to purchase and, consequently, a low cost to own and service.
All spare parts and consumables are kept at head office in Queensland; consequently, they are delivered Australia wide.
| Applicable Implements and Accessories – (click on item for details) | |||
| Tractor Slasher 4ft | Flail Mower 4ft | Tractor Disc Plough | |
| Specifications | |
| Model | AK404C |
| Rated Power | 40hp |
| Hydraulics | 2 Sets of rear remotes |
| Fuel Type | Diesel |
| Category of 3-Point Linkage | Category 1 3PL |
| Engine | |
| Brand | YTO YD4RT5 |
| Model | YD4RT5 |
| Engine Type | 4 Cylinder, water cooled, four stroke |
| Bore and Stroke (mm) | 90 x 105 |
| Compression ratio | 18.01 |
| Rated Power | 29.4 KW |
| Rated RPM | 2400 |
| Fuel consumption | 238g/kwh |
| Dimensions | |
| Length (incl FEL & 3PL) | 3558mm |
| Width | 1670mm |
| Height | 2450mm |
| Track Front Wheel | 1400mm |
| Track Rear Wheel | 1300mm |
| Rear Wheel Size | 12.4-24 |
| Wheel Base | 1800mm |
| Minimum Ground Clearance | 328mm |
| Transmission | |
| Clutch | 9 inch ,Dry, Dual Stage |
| PTO (Power Take – Off Speed) | 540/100RPM |
| Gears | 8 Forward and 8 Reverse |
| Shuttle Shift | Single Lever Forward to Reverse |
| 4WD | Select able 4WD |
| Brakes | |
| Brake Type | Mechanical drum, rear wheel only |
By AgKing
