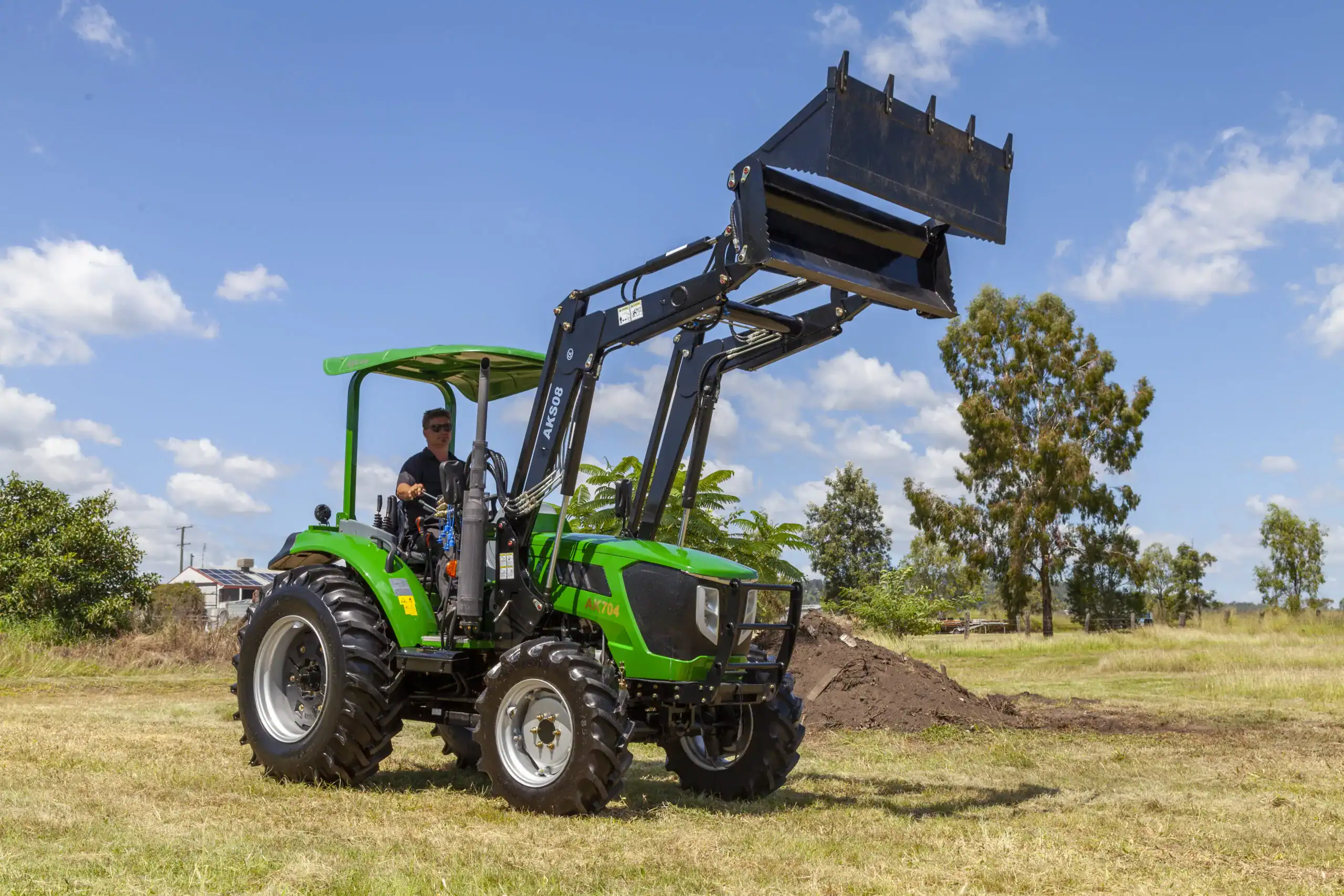

70hp Tractor AK704

70hp Tractor AK704 is the latest release of quality engineered tractors specifically designed for Australia. We have combined power and reliability with all the features needed to get serious work done. If you need manoeuvrability to negotiate tight places and the weight and traction to push, pull, lift, and load, then this 70hp Tractor is one to consider.

In addition to all the above features, it has a powerful 4-cylinder diesel engine. It has a 12-speed gearbox, shuttle shift, 4 wheel drive, diff lock and two-speed PTO with a hand-controlled clutch.

The AK704 70hp Tractor comes standard with two sets of remote hydraulic outlets. It has a massive 1.2 tonne rear ram lift but also includes draft control. It is high set with a comfortable seat and flat floor and so it is ideal for ground clearance and nice to drive.

Every detail has been considered so it is easy to service all parts of this 70hp Tractor. Improved design and quality engineering has been assured by the new Changlin Deutz Fhar factory.

The multipurpose 4 x 1 front-end loader is versatile and designed with euro hitch specifications. There are many optional front-end loader attachments to fit. The AK704 is unbeatable in its class when  considering power, functionality, reliability, serviceability and cost.

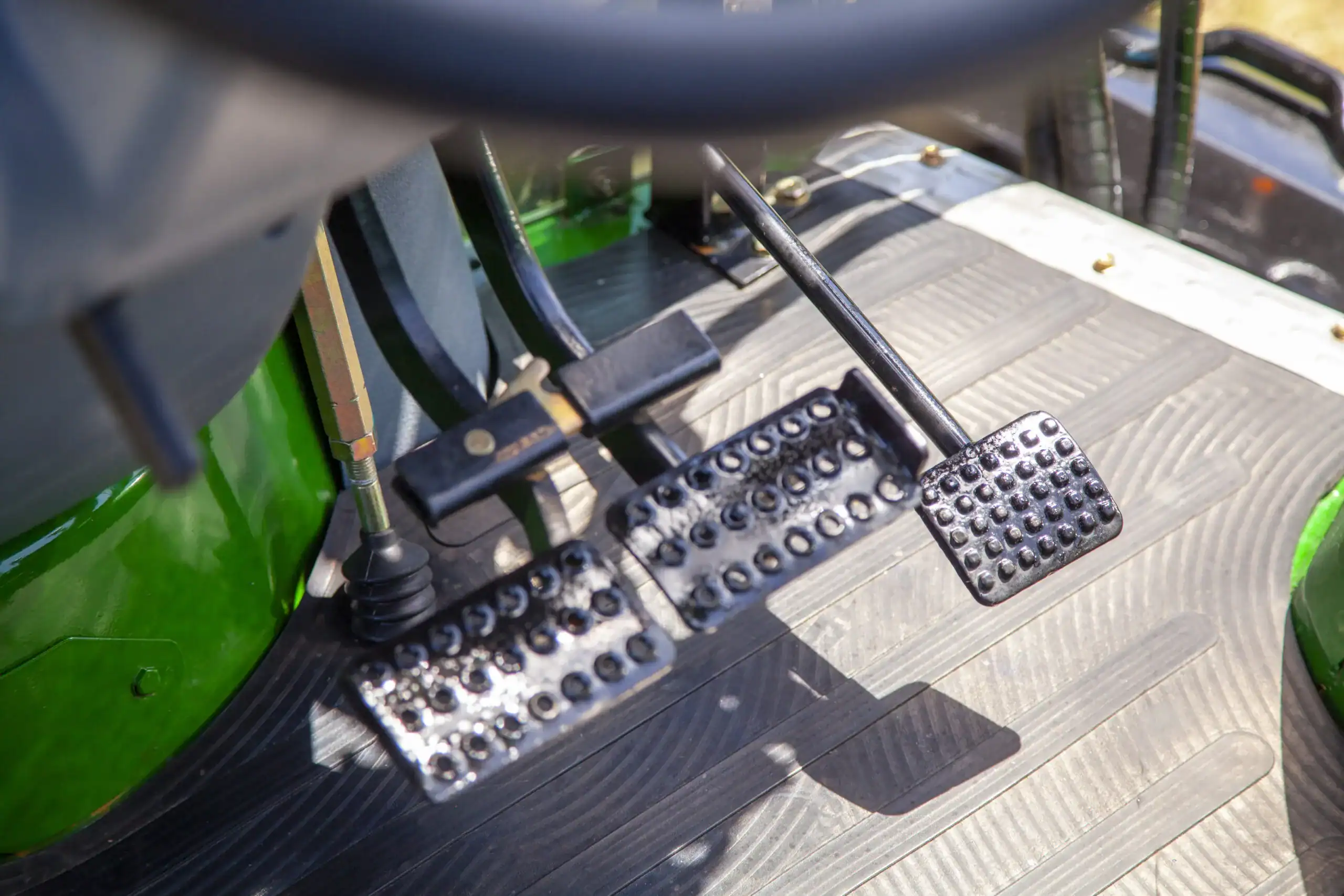

All gear selectors & pedals are noticeably lighter and smoother, providing a more effortless and refined shifting & operating experience.
All-in-one touchscreen: Apple CarPlay, Android Auto, front dash cam, and rear camera.
12 forward + 12 reverse shuttle shift, with optional Synchromesh transmission

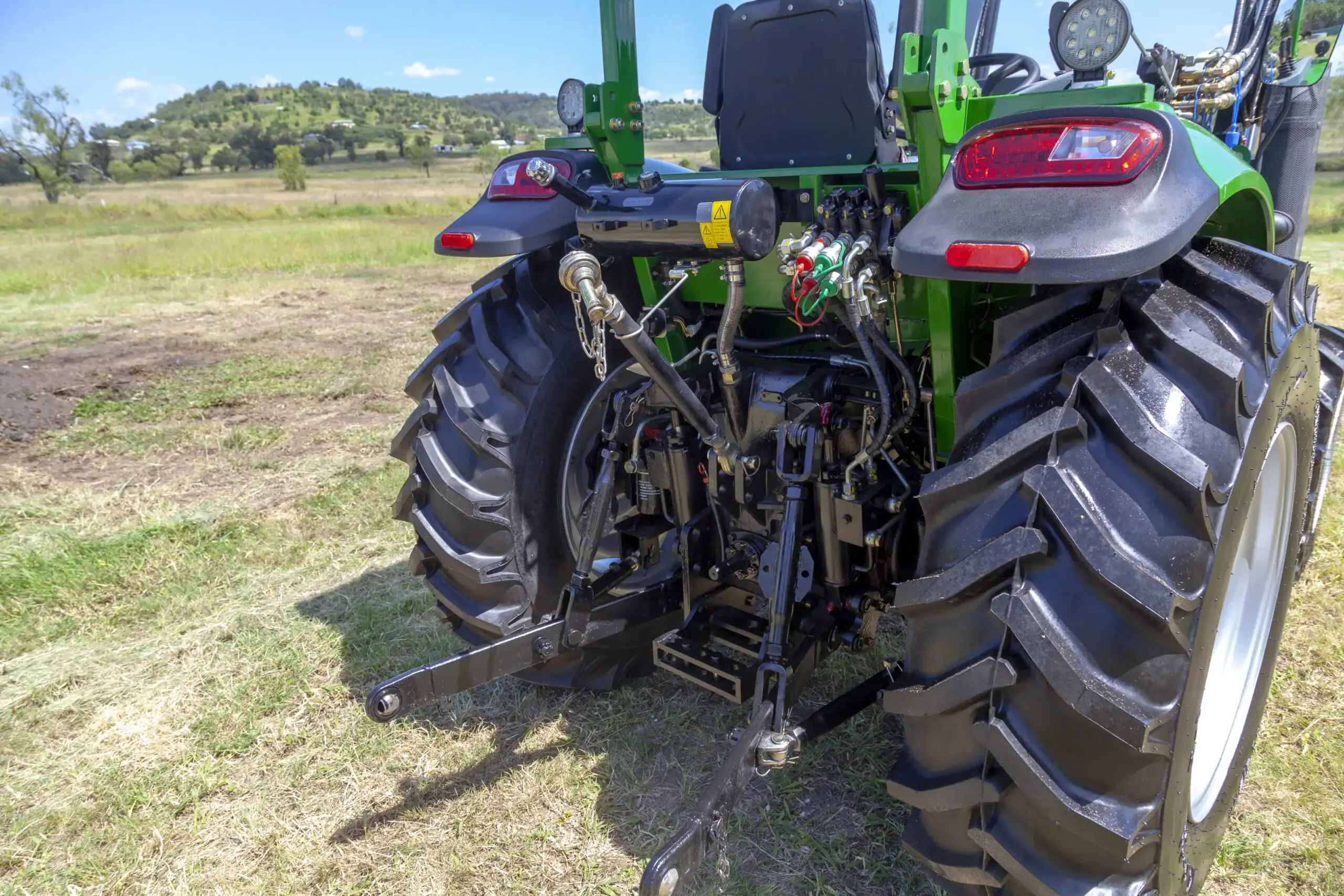

Hydraulic down pressure powered 3-point linkage (external control for easier maneuver)
3-point linkage quick hitch hooks
Super heavy-duty streamline front-end loader with a quick-release arm and quick-release 4 in 1 bucket

Double-sided mirrors
Heavy-duty radial tyres
Corrosion-resistant paint
Tinted windows (Cabin Models)
Advanced 3-point linkage adjustment design
New LED digital dash that also displays driving speed!
Adjustable rear wheel track
Rust protection paint
Premium Italian Heavy-Duty FEL Joystick with Rear Bucket Control

Main Features:
4WD & Diff Lock
1000kg front-end loader lifting capacity
Premium radial tires (front 280/85R20; rear 16.9-28)
Quick hitch FEL with 4-in-1 bucket
Premium joystick with solenoid control for 4-in-1 bucket
Grammer suspension seat
Dual-stage ceramic clutch plate
Oil-immersed braking system
wheel weights
Super quiet A/C cabin (cooling & heating) Cabin Models
Dual hydraulic pumps
Power steering
Two-speed PTO (540/760 RPM)
Dual rear remotes
Euro hitch quick-release front-end loader (Quick park)
Heavy-duty chassis for loader work
4-cylinder naturally aspirated diesel engine
Flat operator deck
Seed guard for radiator

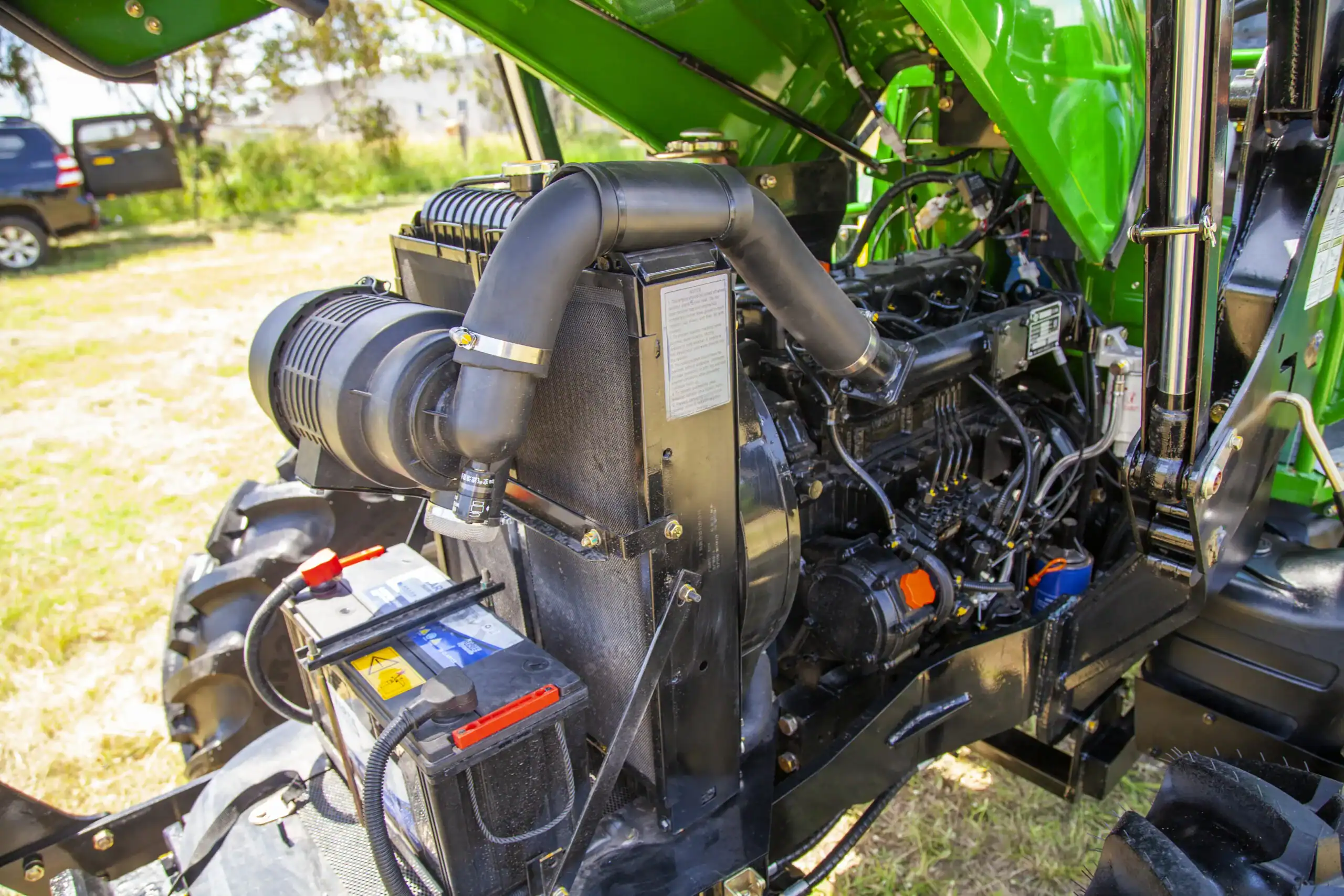

Engine:
Model: Quanchai 4108T
Type: Diesel
Gross Power: 51.5KW
PTO Power: 43.8KW
Cylinders: 4
Rated Speed: 2400 RPM
Battery: 12V
Alternator: 14V/0.75KW
Fuel Tank Capacity: 80L

Drivetrain:
Transmission: Synchromesh shuttle shift 12F + 12R
Steering: Hydraulic power
Brakes: Wet brakes
Clutch: dry
PTO: 540/760 RPM

Hydraulics:
Hydraulic Remotes: Two at the rear
Down Pressure Powered 3-Point Linkage
Total Hydraulic Flow: 75L/MIN
3-Point Linkage Lift Capacity: 1,600KG

Dimensions:
Overall Length (with bucket on the floor): 5,100mm
Tractor Length (without bucket): 3,800mm
Overall Width: 1,850mm
Overall Height: 2,800mm
Min. Ground Clearance: 360mm
Gross Weight with Loader: 3,850kg
Radial Tire Sizes: 280/85R20; rear 16.9-28

Exclusively  imported by AgKing the 70hp Tractor AK704 is available only through an AgKing distributor
