Description

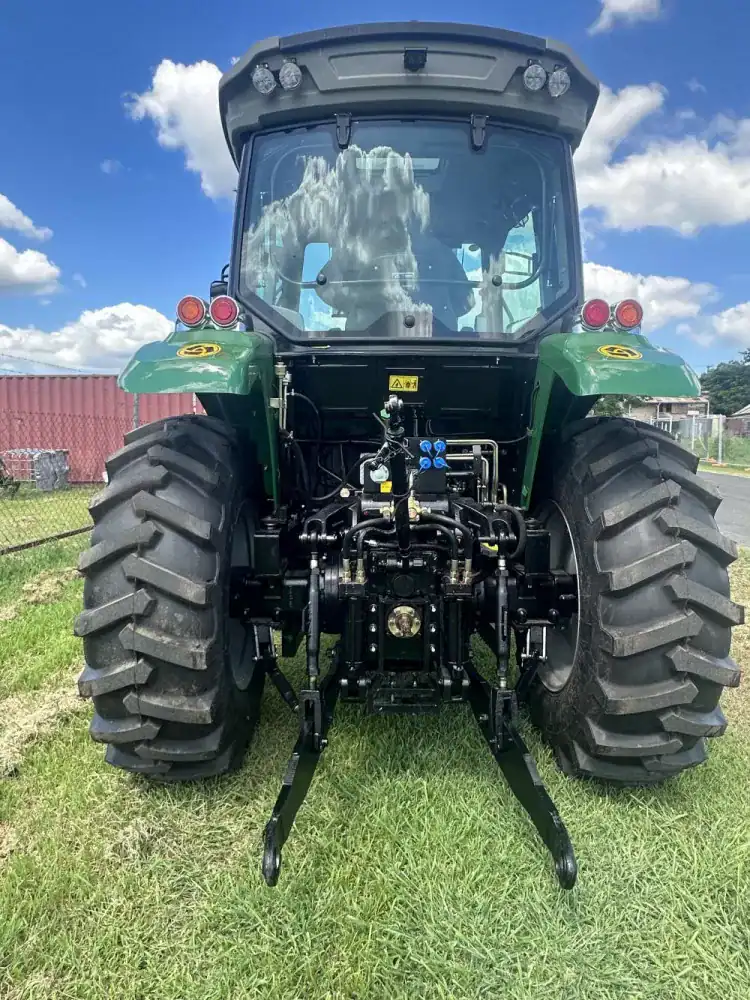

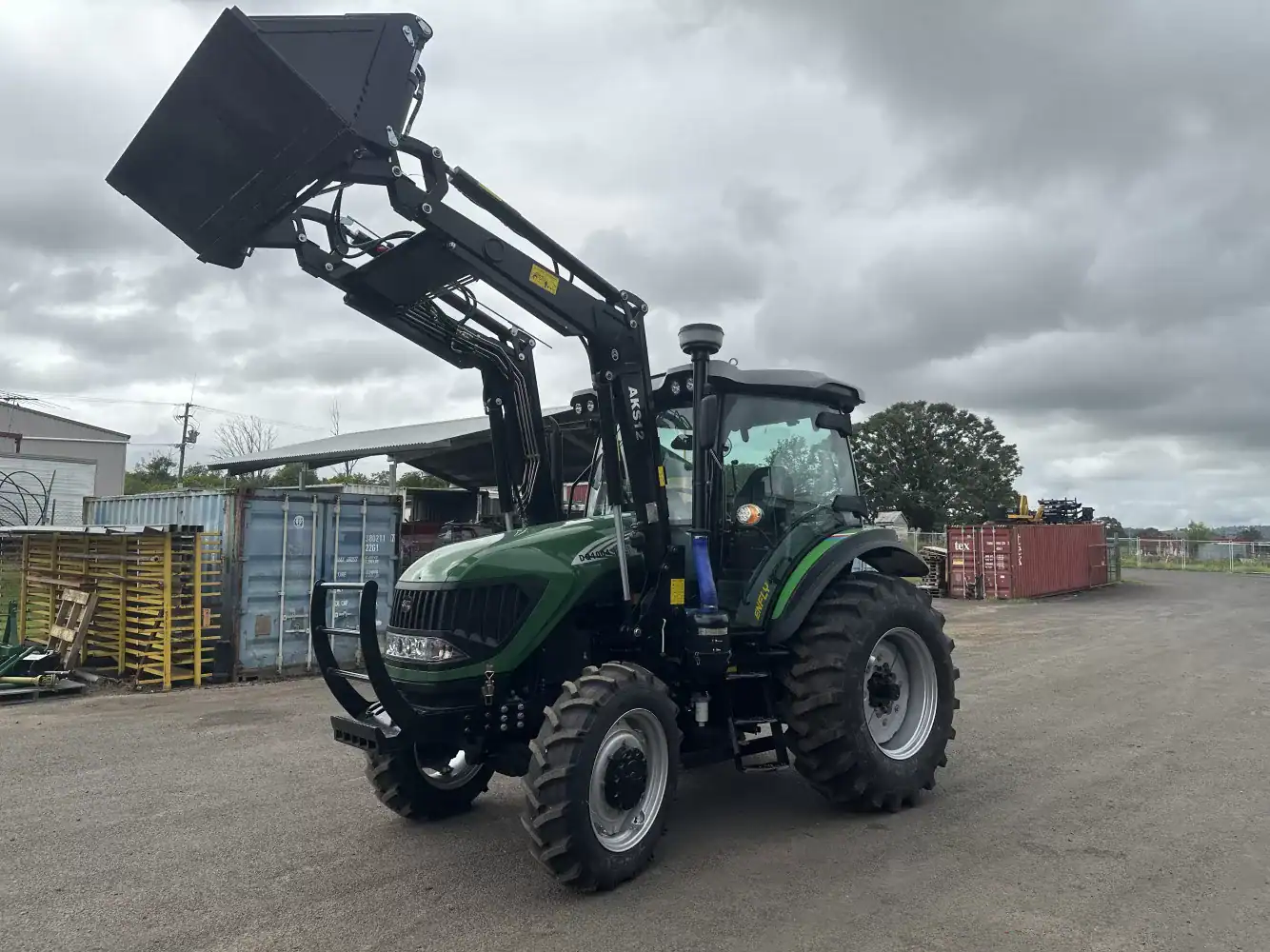

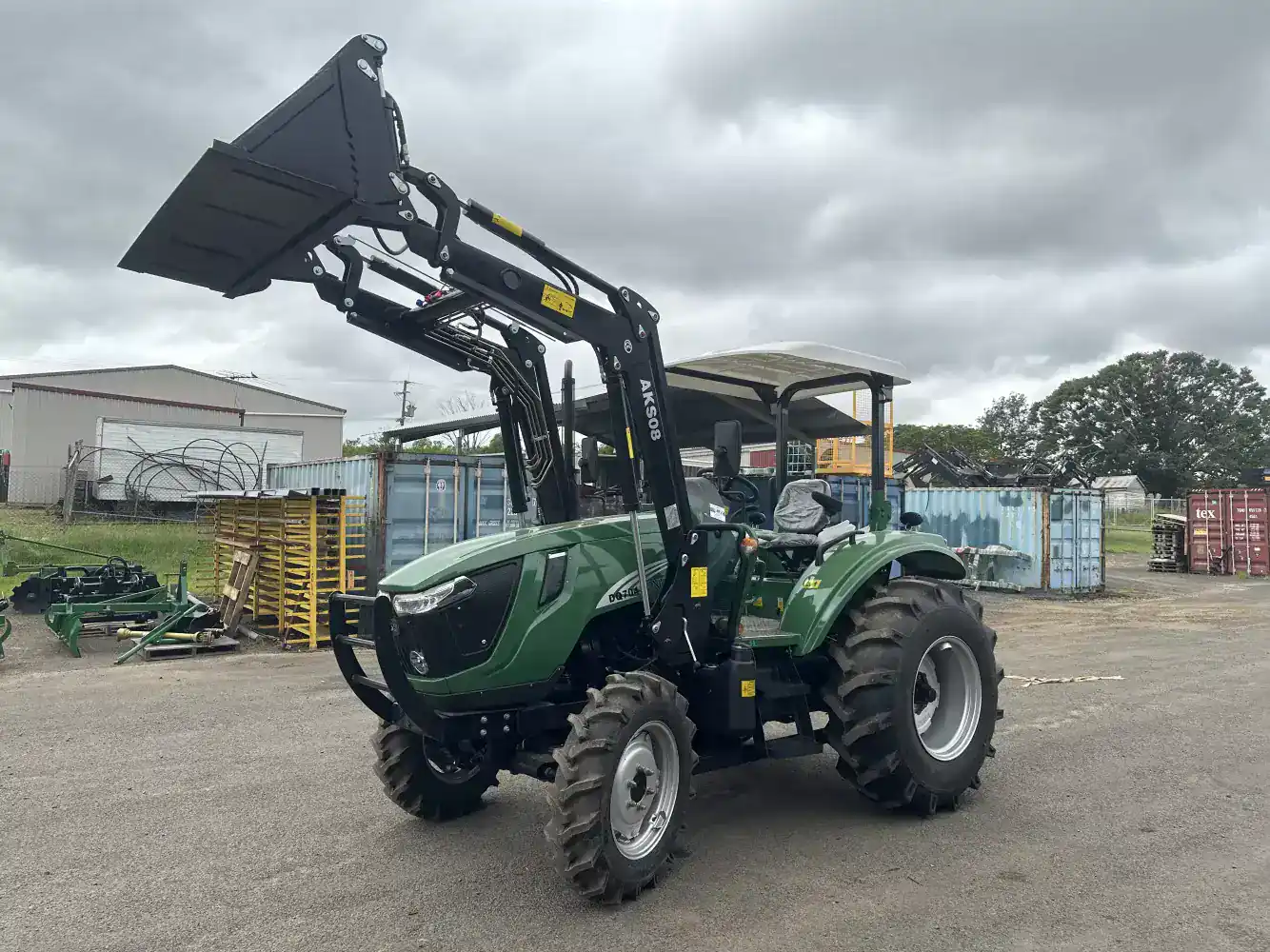

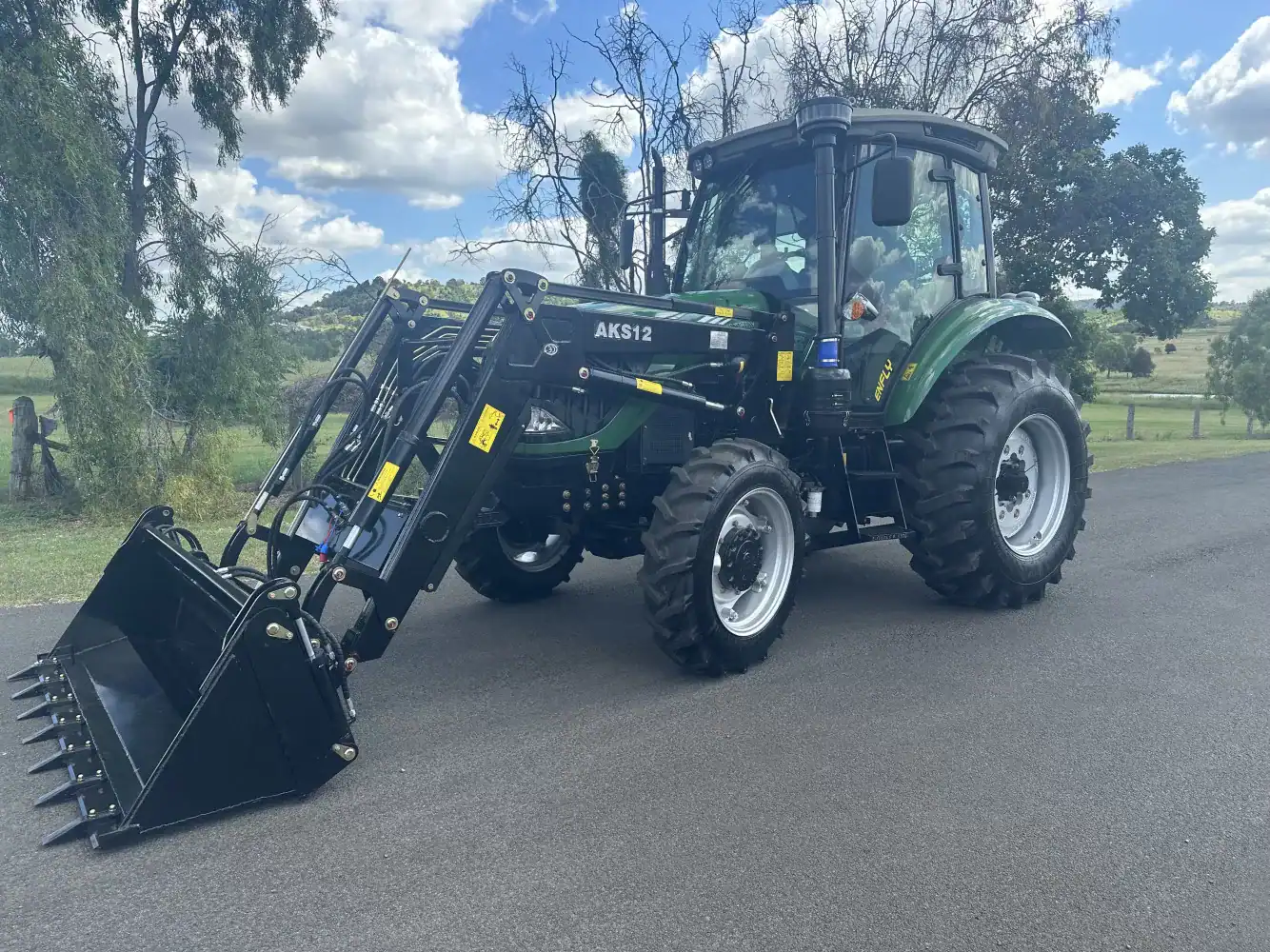

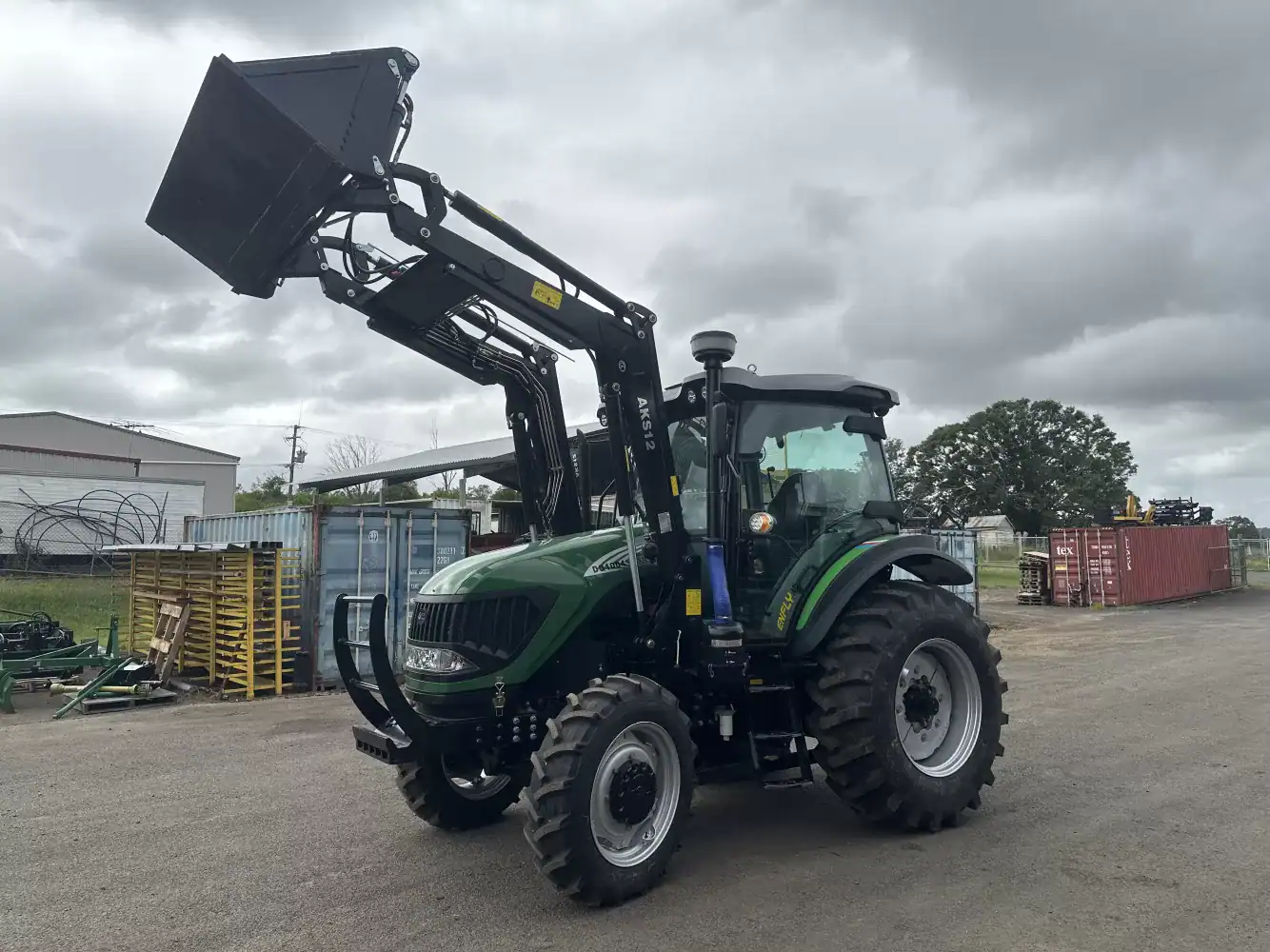

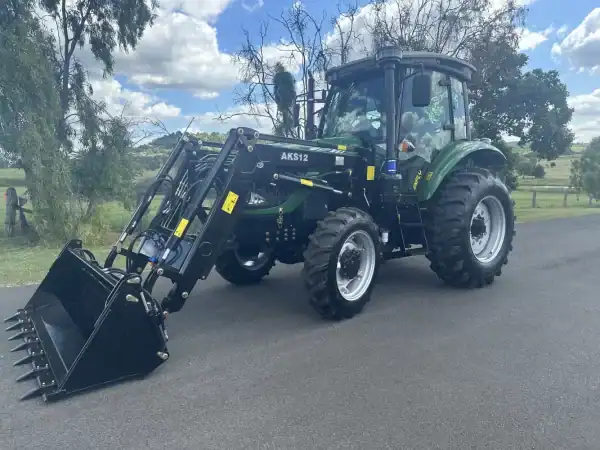

100hp Tractor Enfly DQ1004C
100hp Tractor – The Enfly DQ1004C is part of the HD series. This is the heavy duty range of Enfly tractors, with superior transmission system including planetary drives on front axles. The DQ1004 10HP tractor is exceptional value for money for a commercial grade tractor that can do the jobs you would expect. With unparalleled power and performance the 4 cylinder YTO diesel engine will out perform much more expensive tractors in the same range. Available with loader and optional cabin. The machine is comfortable to drive with well protected seating area and well placed controls.
Features
100HP 4WD WITH FRONT END LOADER
EURO QUICK HITCH FEL 4 IN 1 BUCKET
1200KG FRONT END LOADER SWL
DEDICATED HYDRAULIC PUMP
HYDRAULIC LIFT – DOWNWARD FORCE
POWER STEERING
FLAT AND CLEAR DECK WITH SIDE PLACED GEAR SELECTIONS
12” DOUBLE ACTION CLUTCH WITH METAL CERAMIC FRICTION PLATE
HEAVY DUTY FRONT AXLE AND WHEEL RIM
STEERING WHEEL ADJUSTABLE
SEAT HEIGHT ADJUSTABLE
Specifications | |
Model | DQ1004C Cabin |
Engine Type | 4 Cylinder |
Rated Power | 100hp |
PTO | 540/760 rpm x 6 spline 35mm shaft clockwise rotation |
Diff Lock | Standard |
Brakes | Wet disk type |
Rear lifting capacity (Kilo Newtons) | 12 |
Gear Speeds (km/hr) | Low: 2.65, 3.85, 5.25, 8.1 High: 11.4, 16.53, 22.57, 34.78 |
Hydraulics: | Dual Gear type pumps. |
Swinging Draw Bar | Standard |
ROPS | Foldable with sunshade |
Length (mm) | 3513 |
Structure Weight | 5000 KG |
Rear Ballast Weight | 540 KG |
Width (mm) | 1750 |
Height (mm) | 2130 |
Wheel Base (mm) | 2040 |
Front Track (mm) | 1250 |
Rear Track (mm) | 1200-1500 (usual 1300) |
Min ground clearance (mm) | 323 |
Agricultural ground clearance (mm) | 375 |
Min turning radius (m) | 3.4 |
Minimum operational mass (kg) | 2120 |
Rated Traction (KN) | 12 |
Front Wheels (Ag tyres) | 8.3-20 |
Rear Wheels (Ag tyres) | 12.4-28 |
Front Wheels (Turf Tires) | 13×9.5-16 |
Rear Wheels (Turf Tires) | 13-20 |
Lights & Electrical | 12V System. Headlights with low high beam, rear lights, brake, indicators, rear working light, rear mirrors, horn, neutral safety switch, rpm, temp gauges. |
The fuel tank | 150 Litres with easy access cover |
Seat | Adjustable suspension Style |
