Description

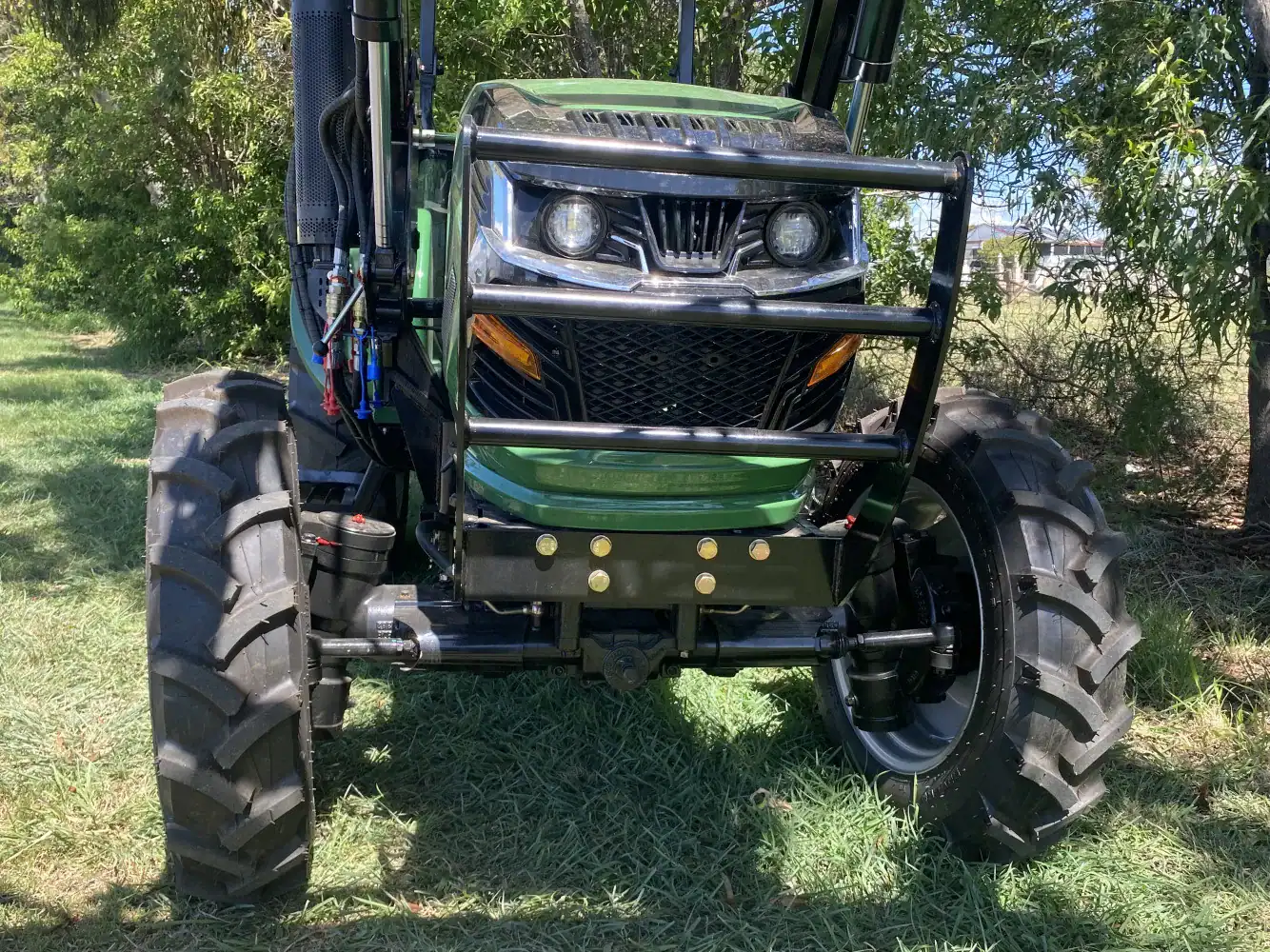

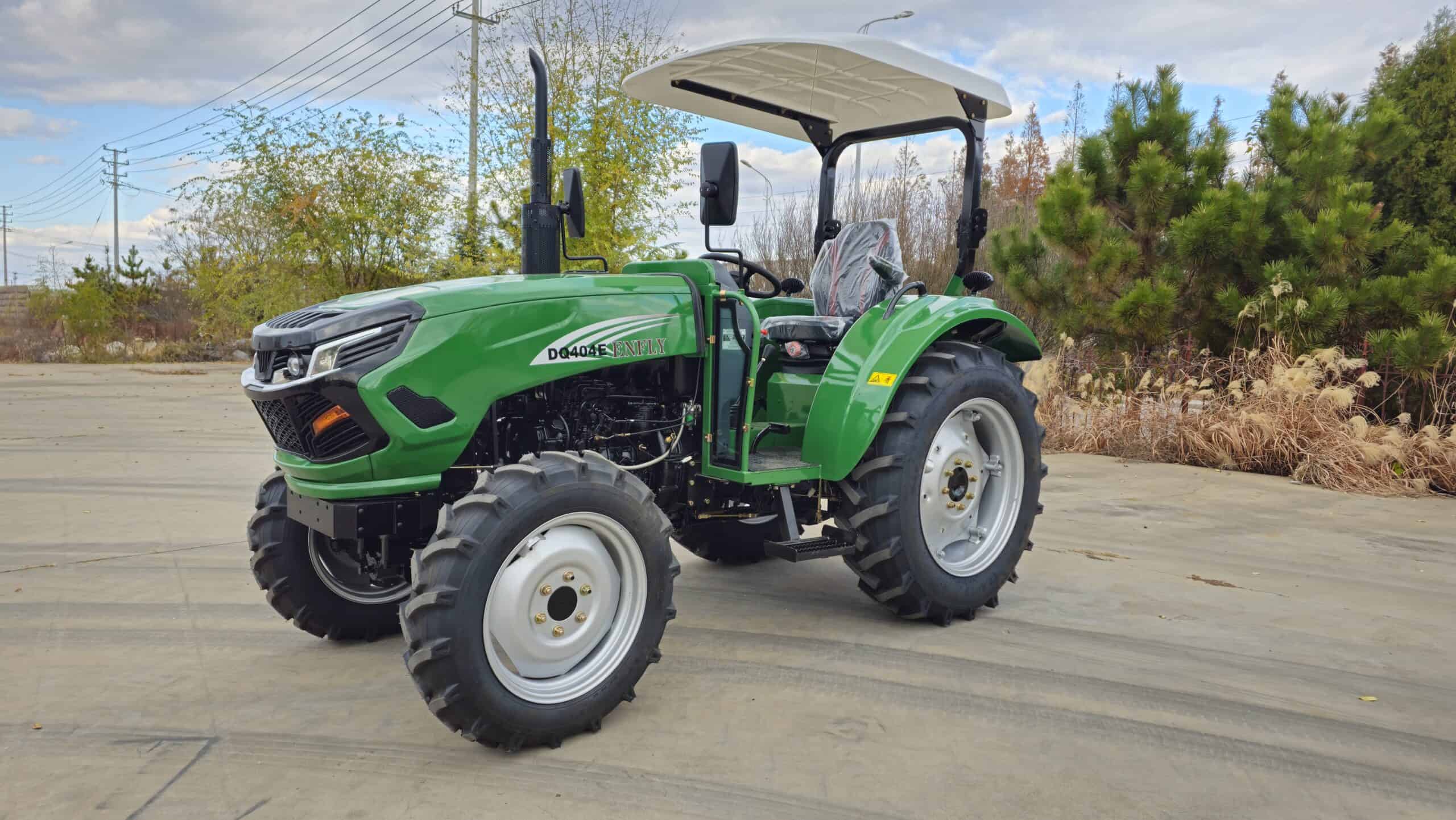

40hp Enfly Tractor DQ404

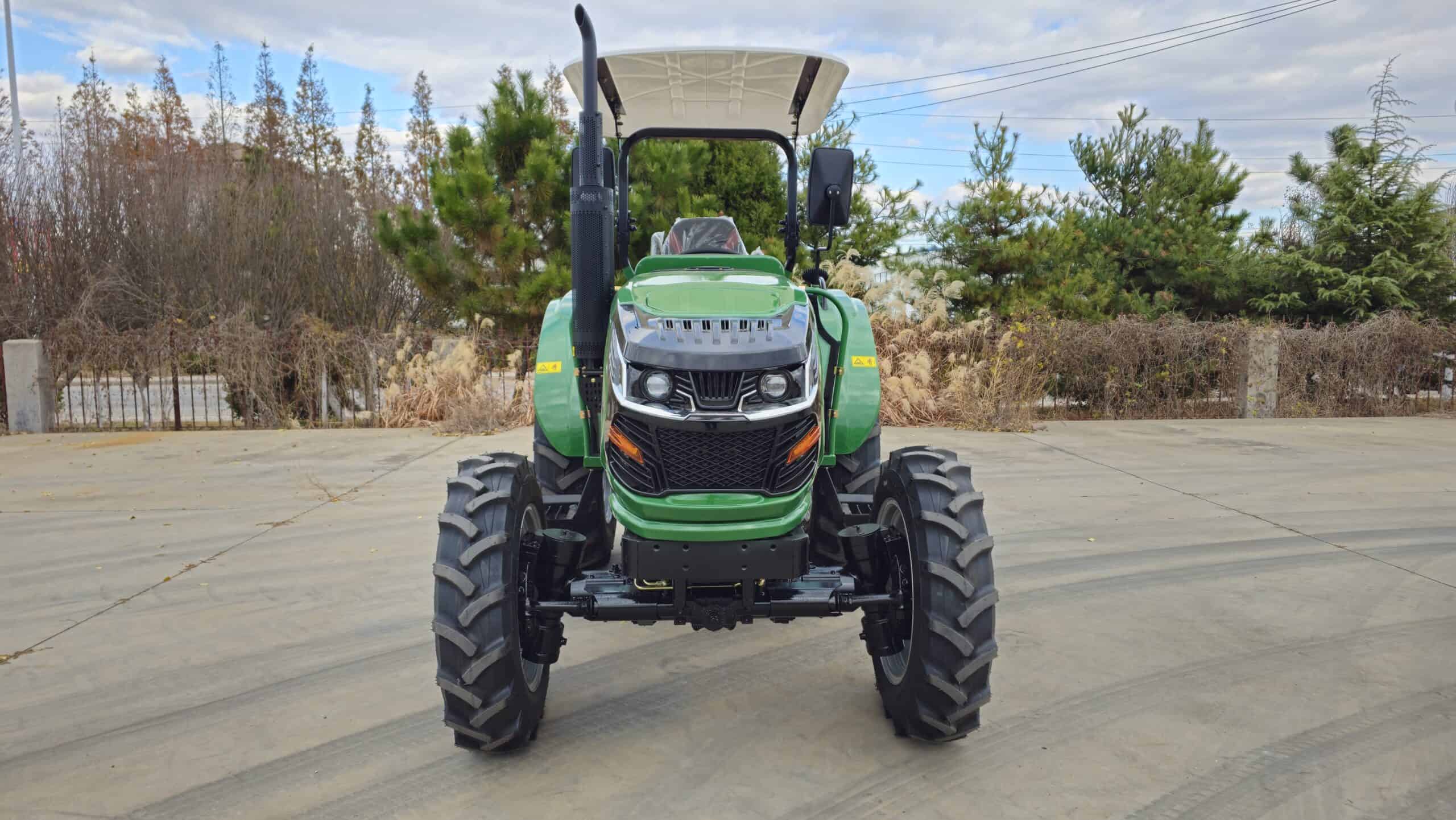

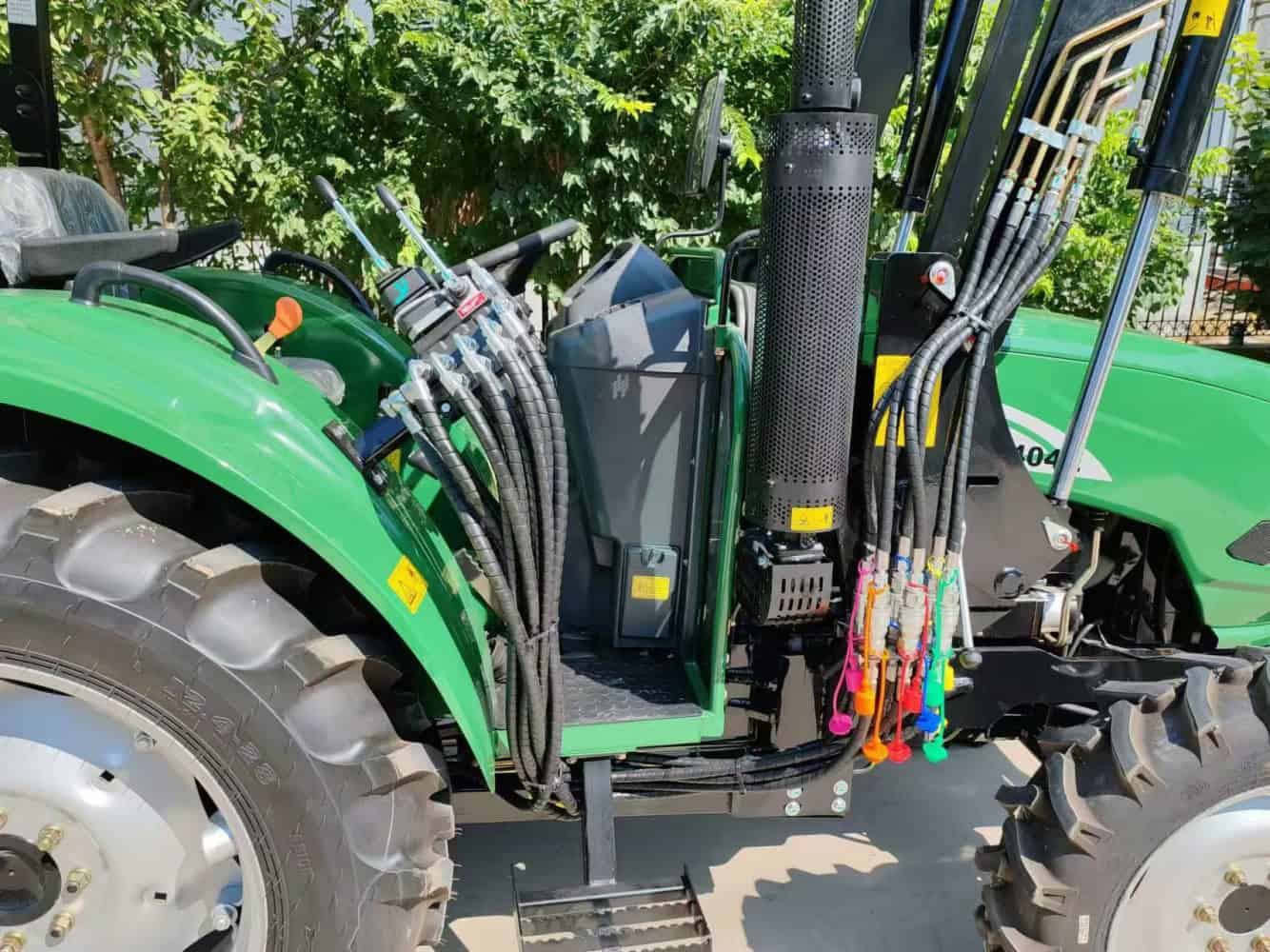

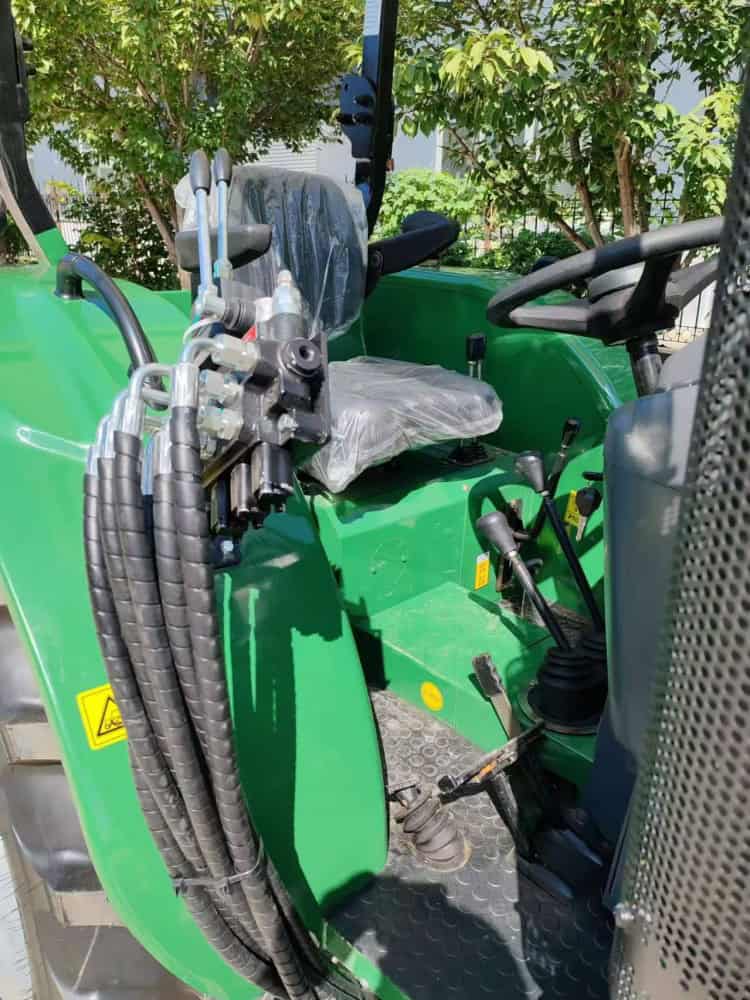

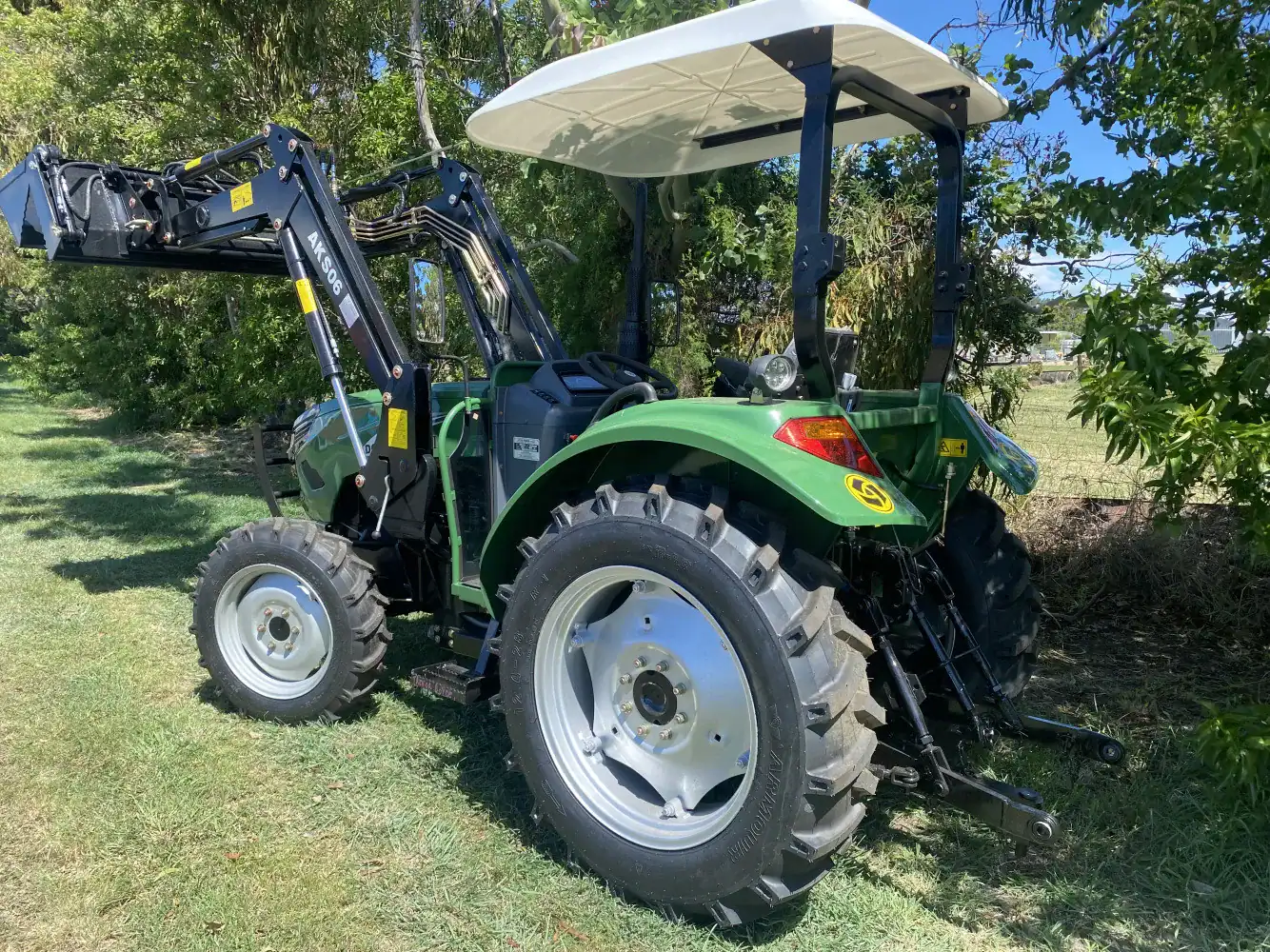

The 40hp Enfly Tractor DQ404 is a 4cyl diesel tractor, with ROPS and shade canopy, 4 wheel drive, shuttle shift, power steering, wet disc brakes, diff lock, 2 sets remote hydraulic valves, swing bar, 2 speed PTO.

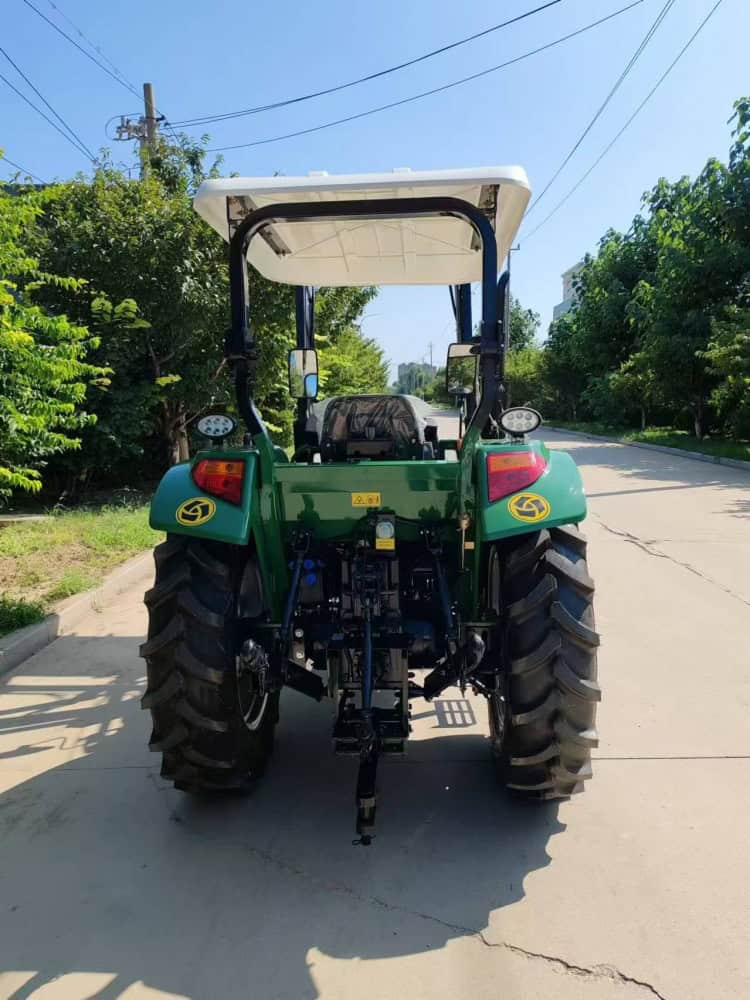

The rear lift arms handle up to 1.2 ton and fitted with draft control. The 40hp Enfly Tractor DQ404 is a heavy duty general purpose tractor

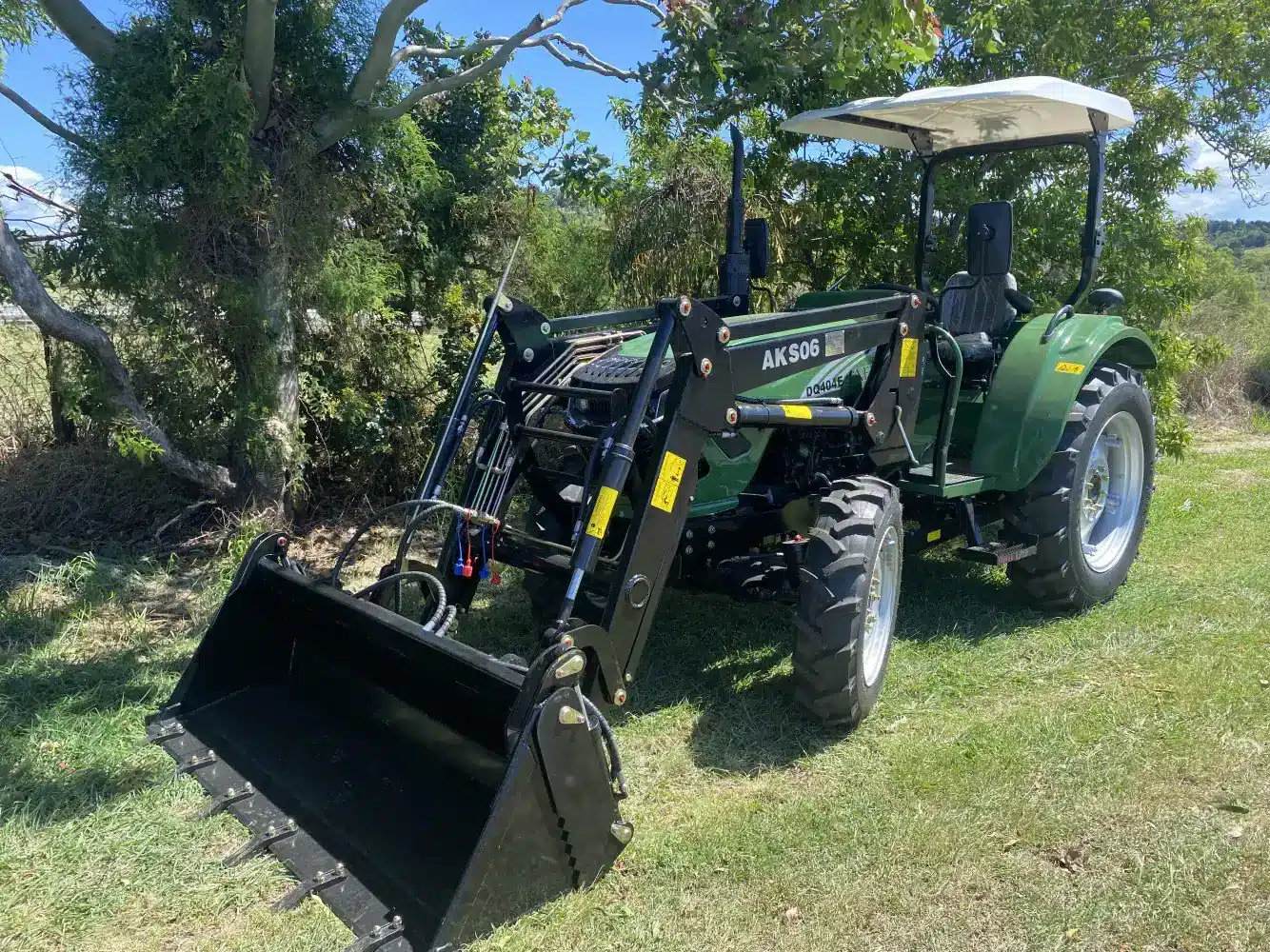

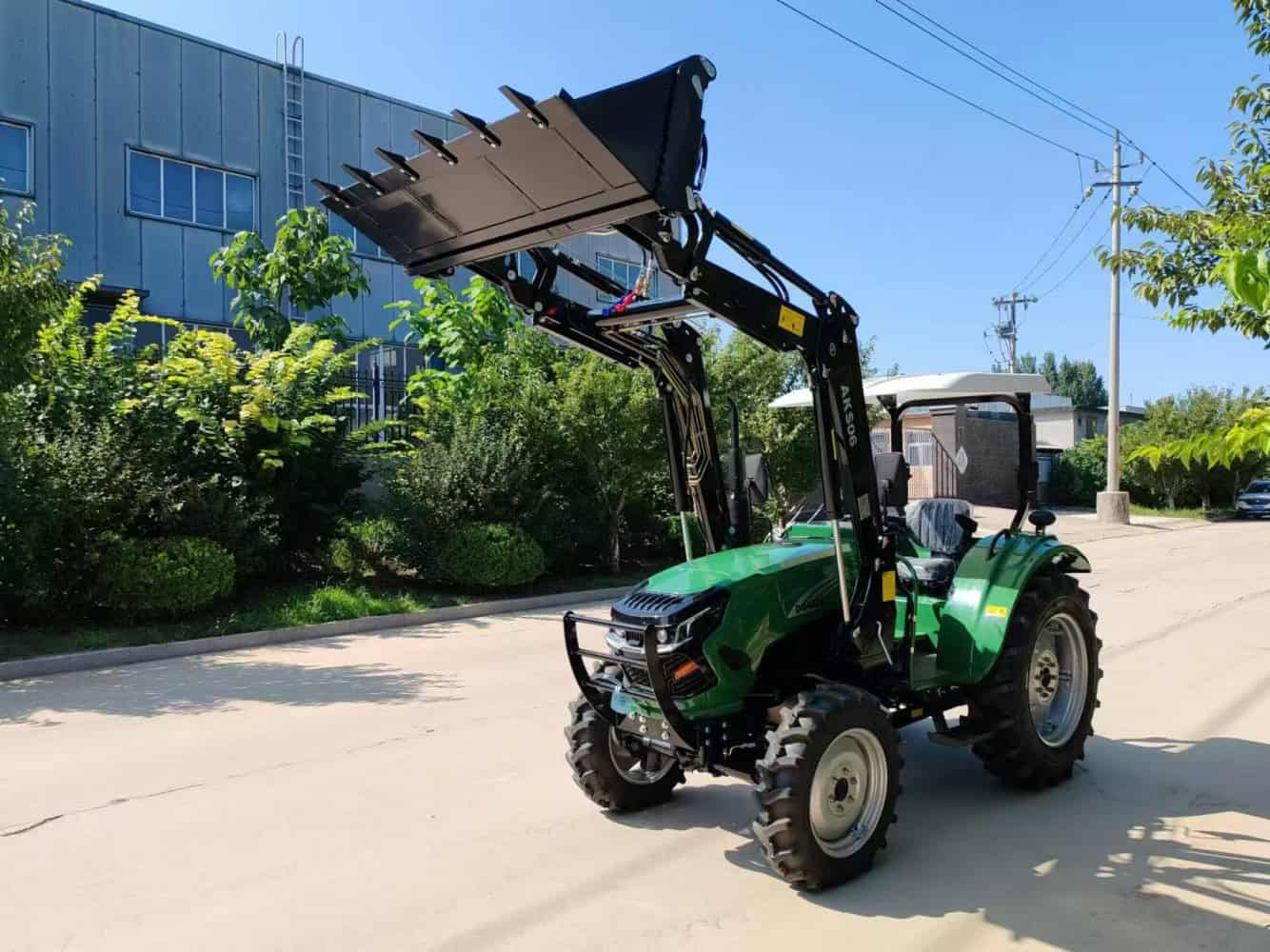

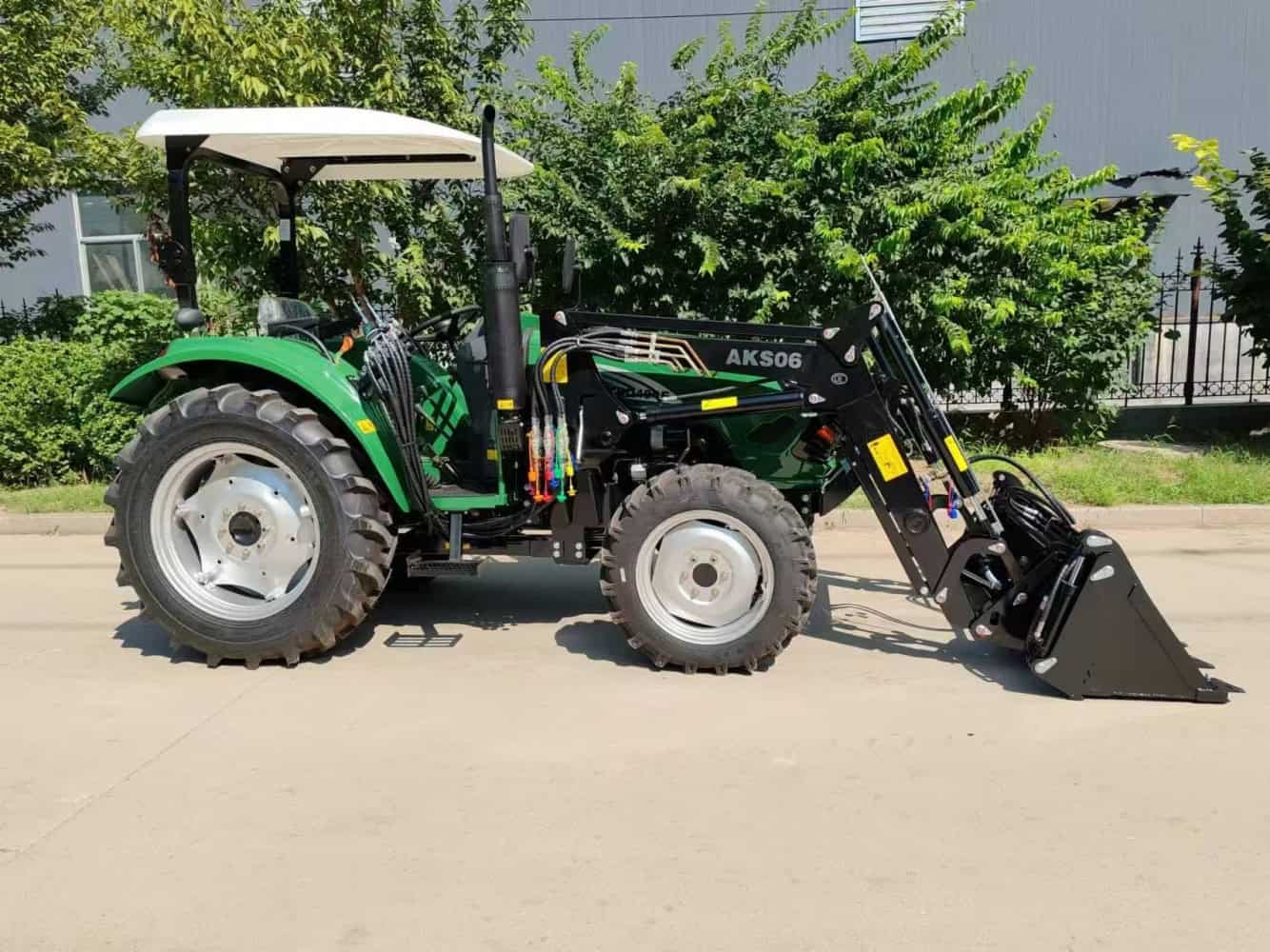

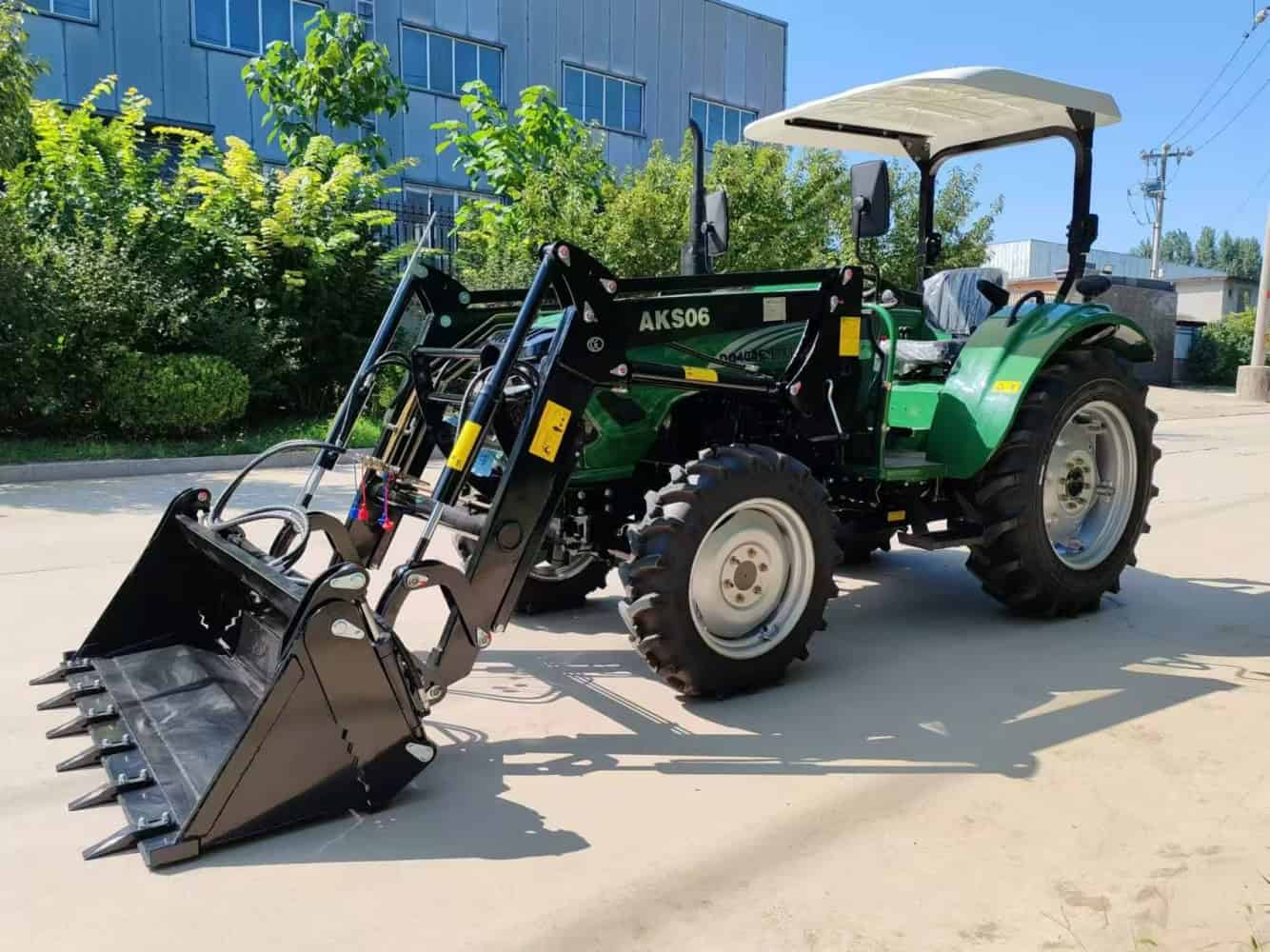

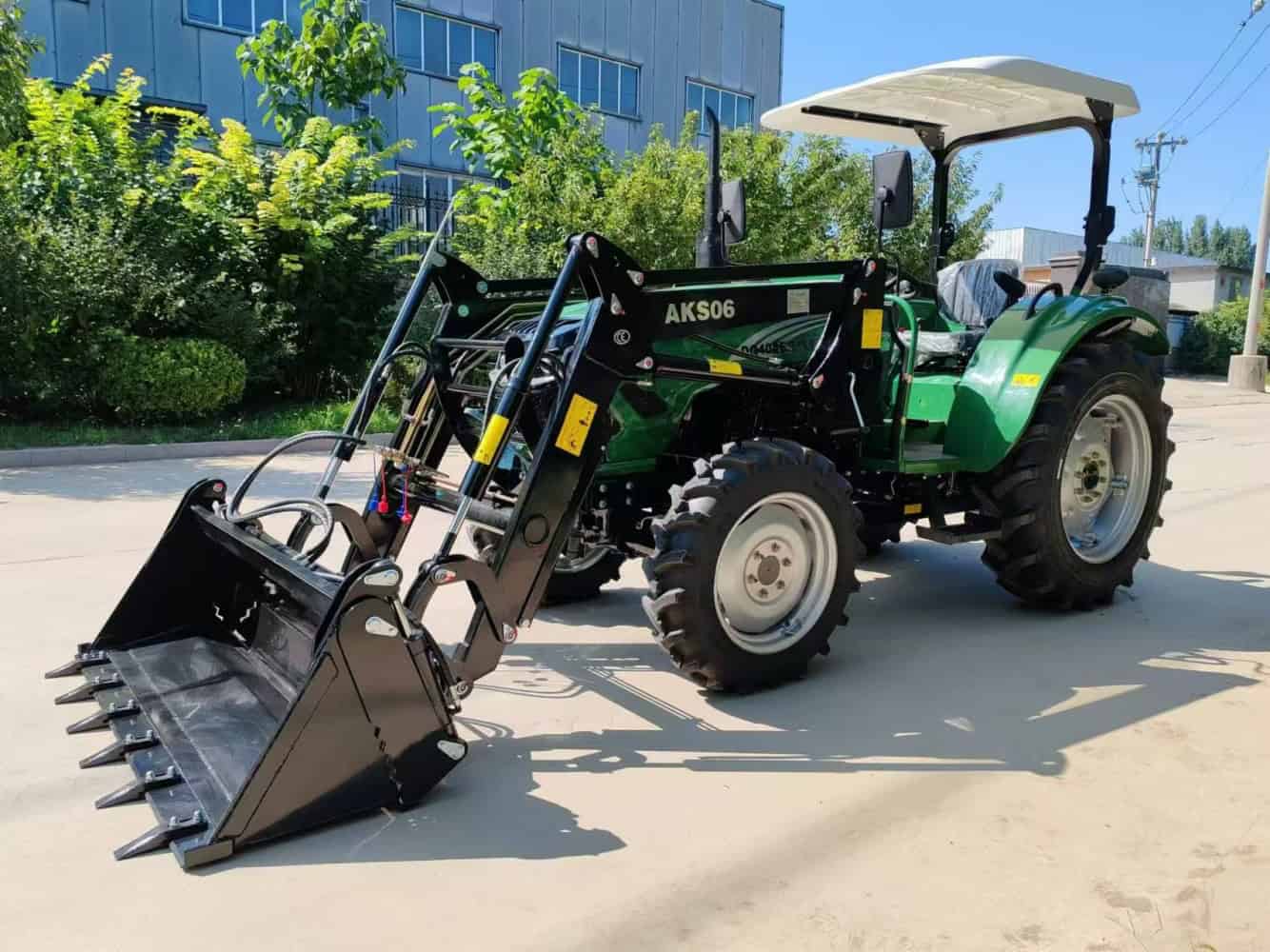

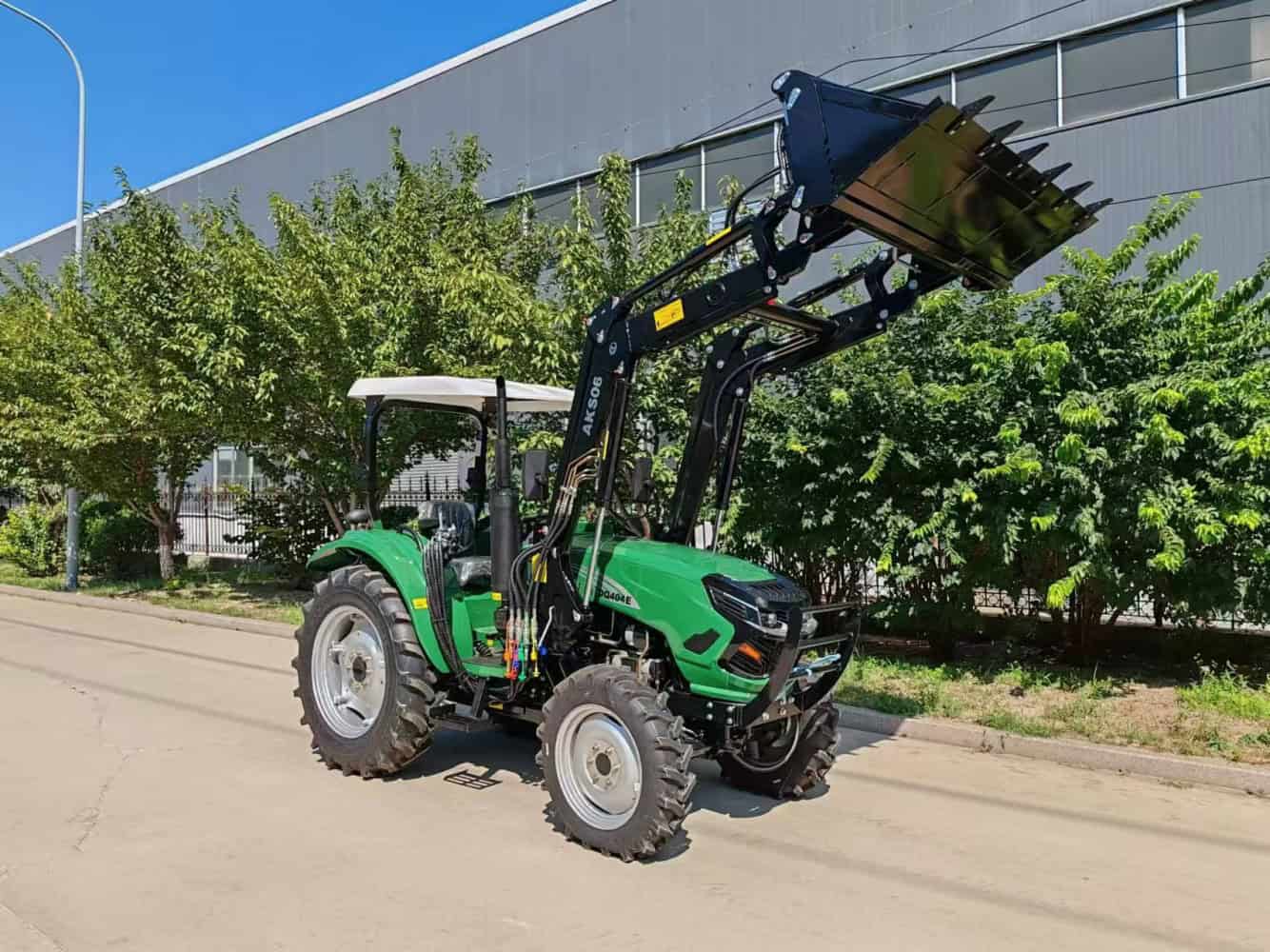

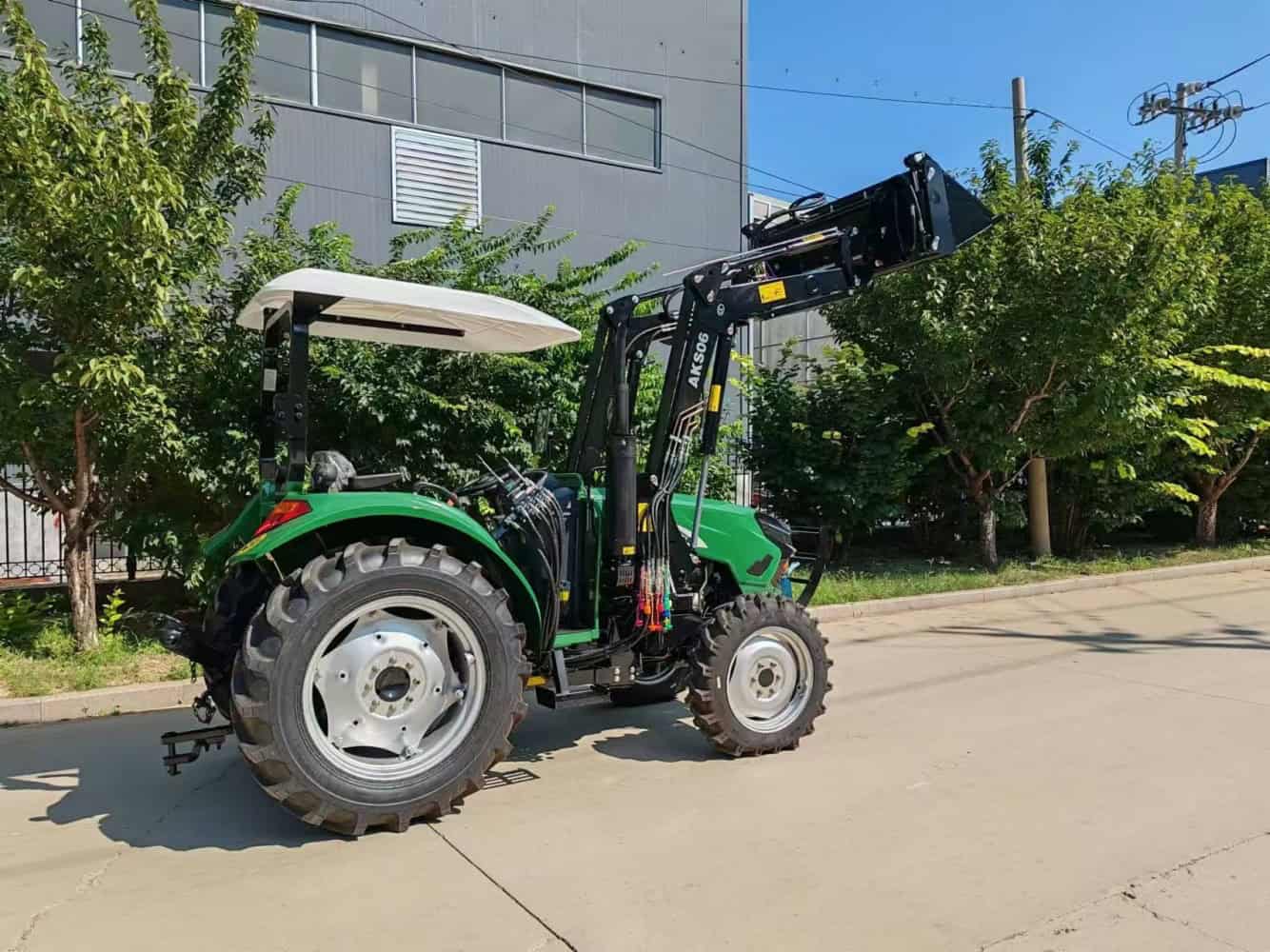

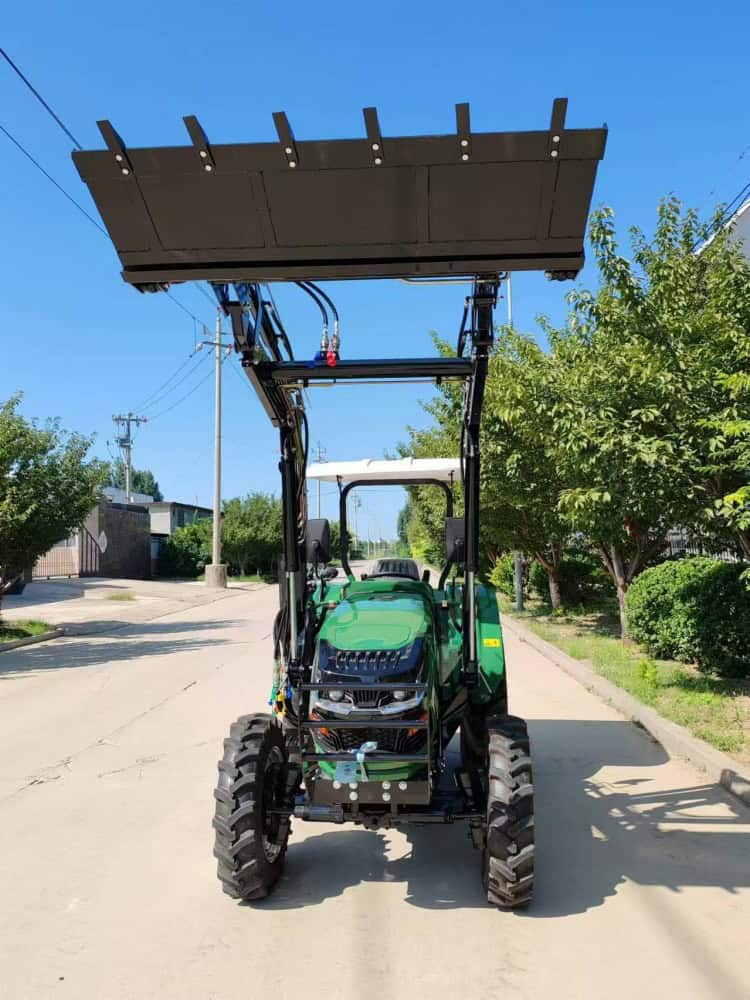

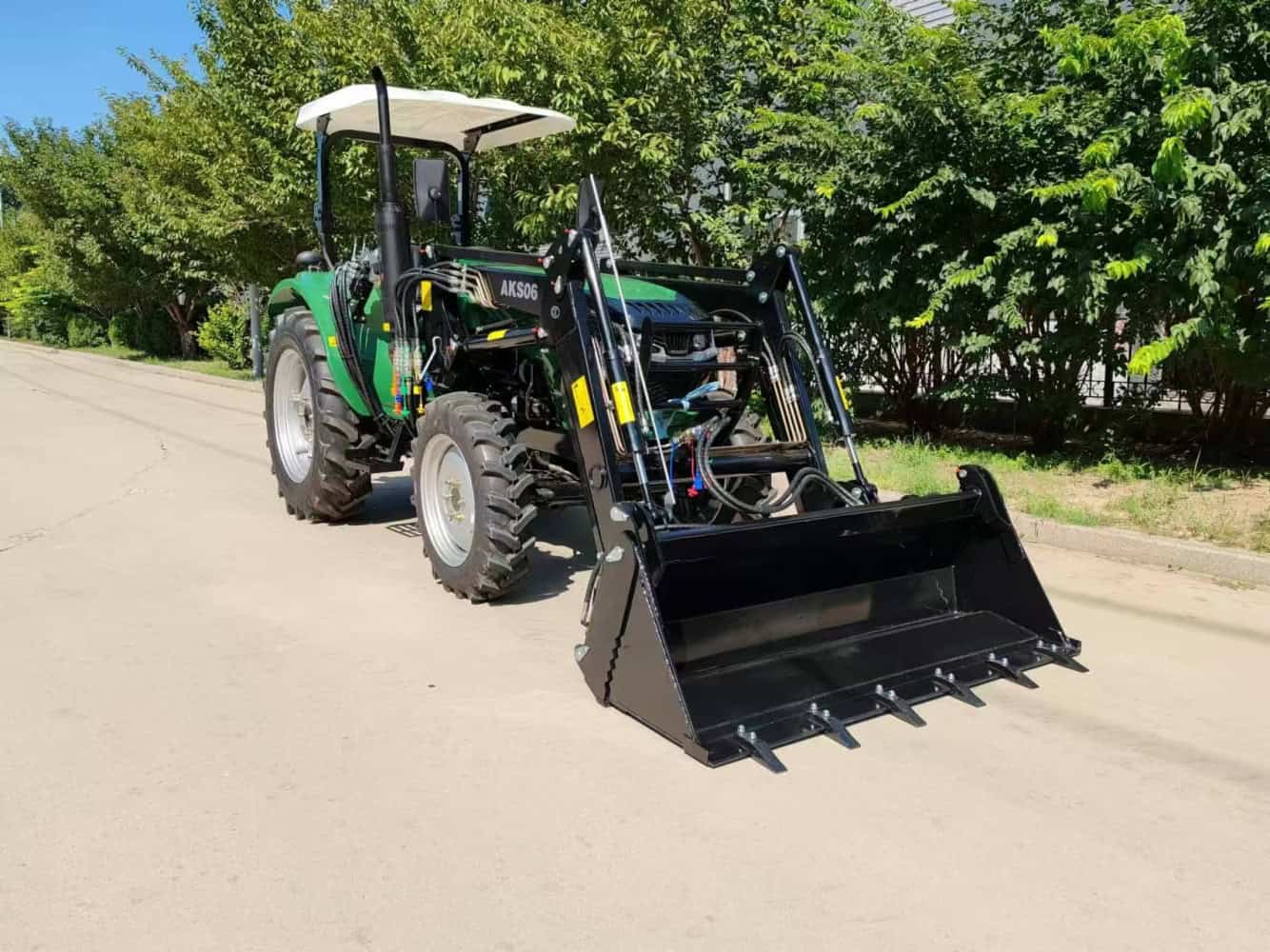

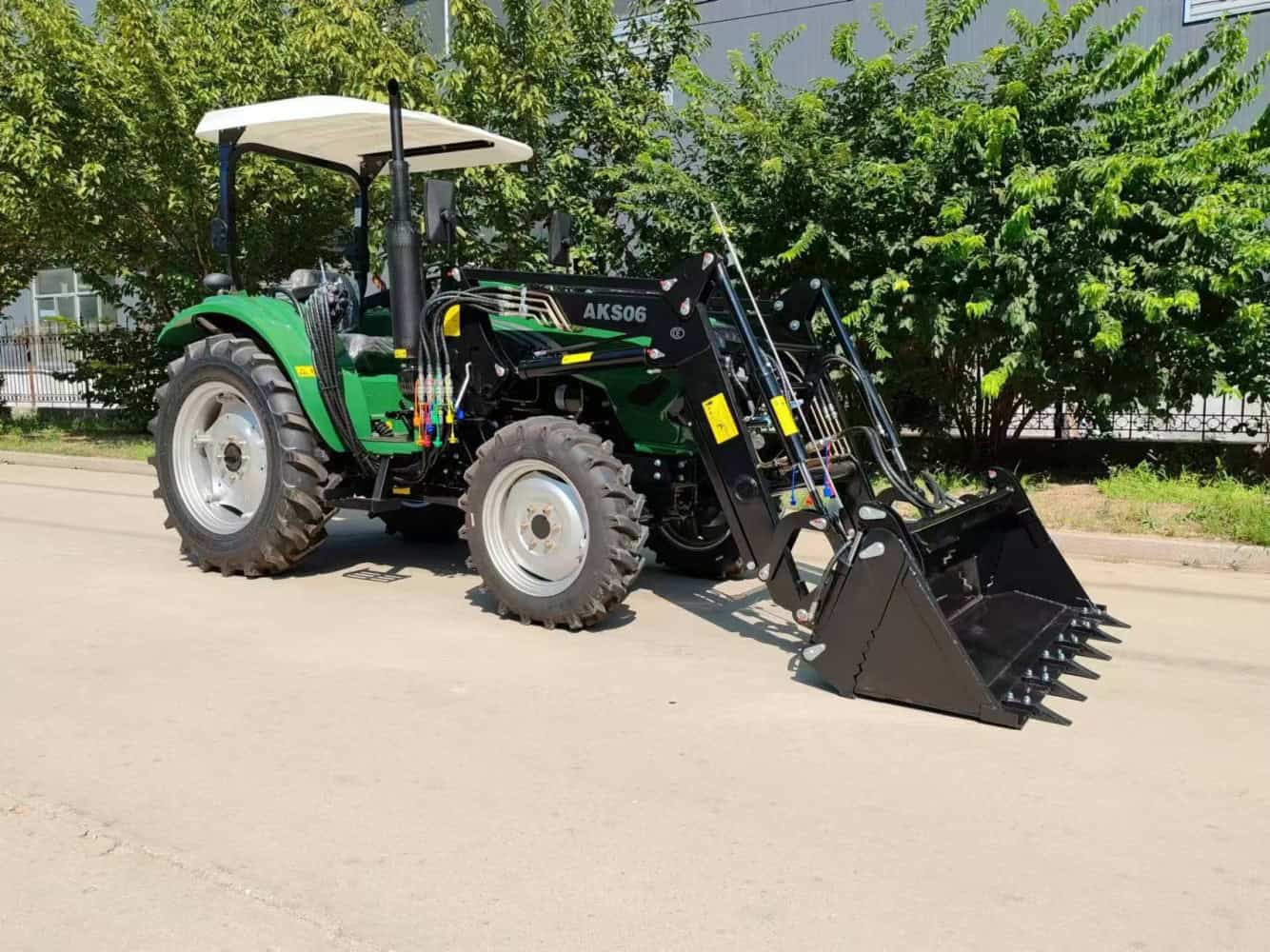

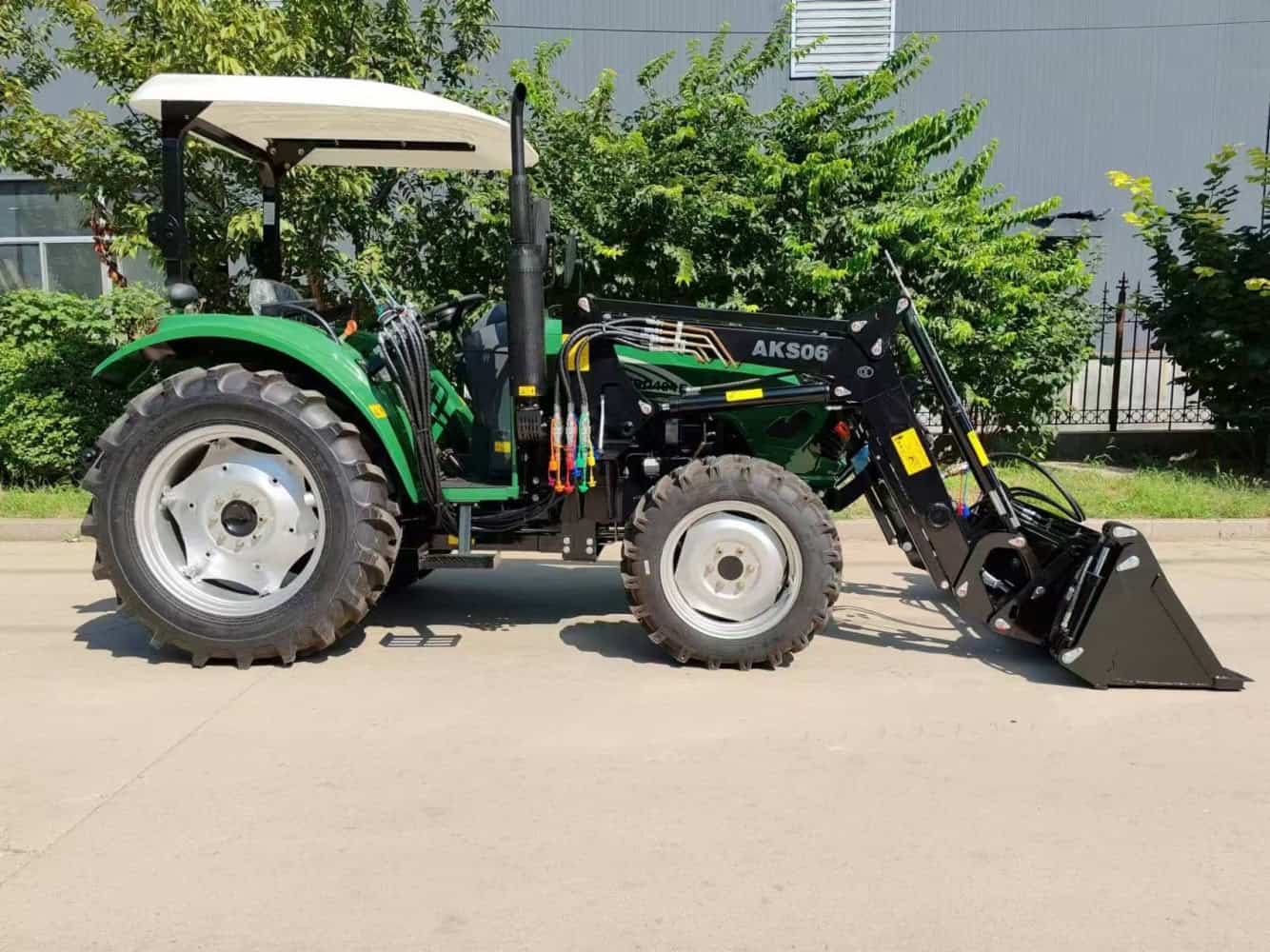

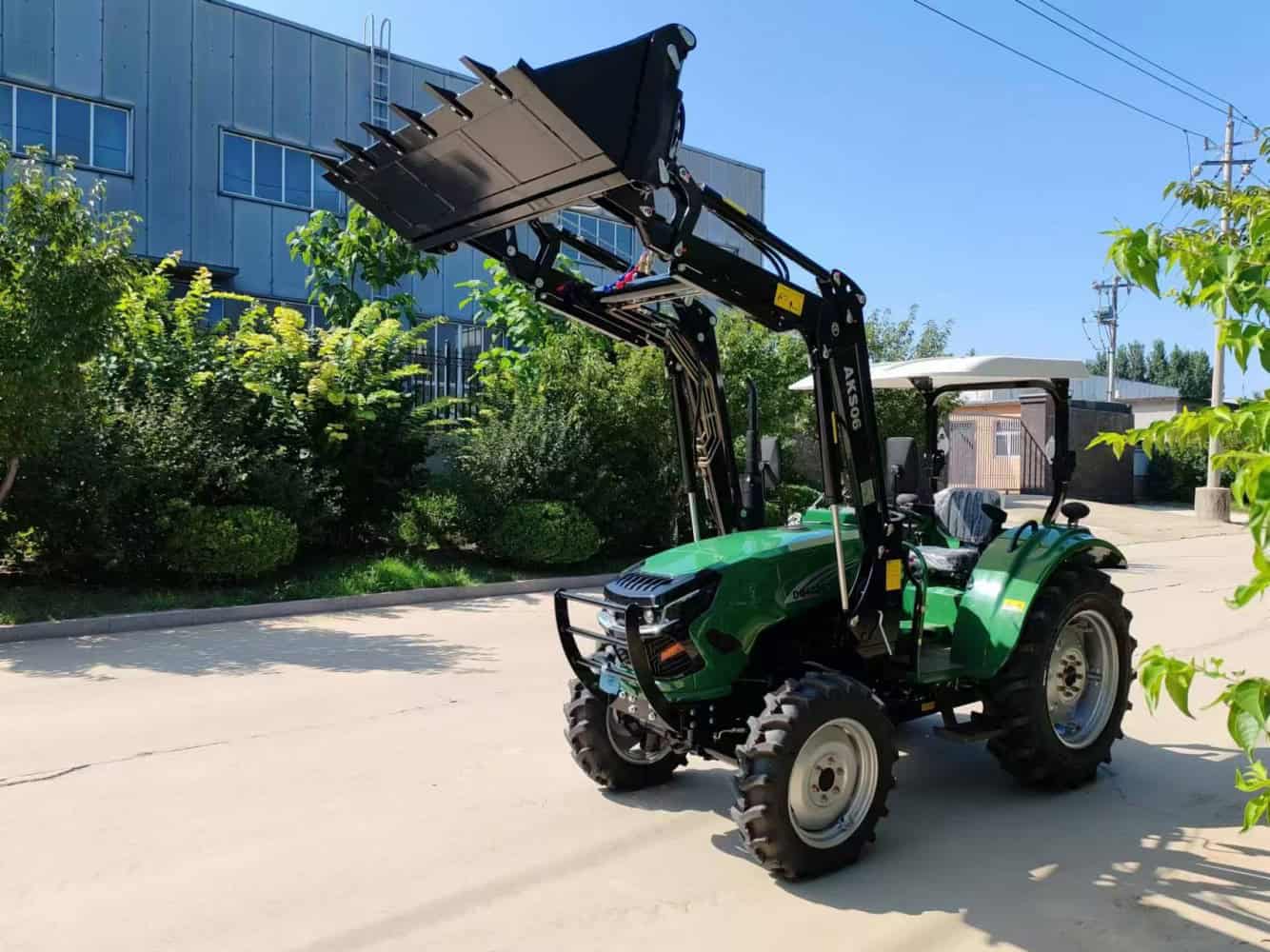

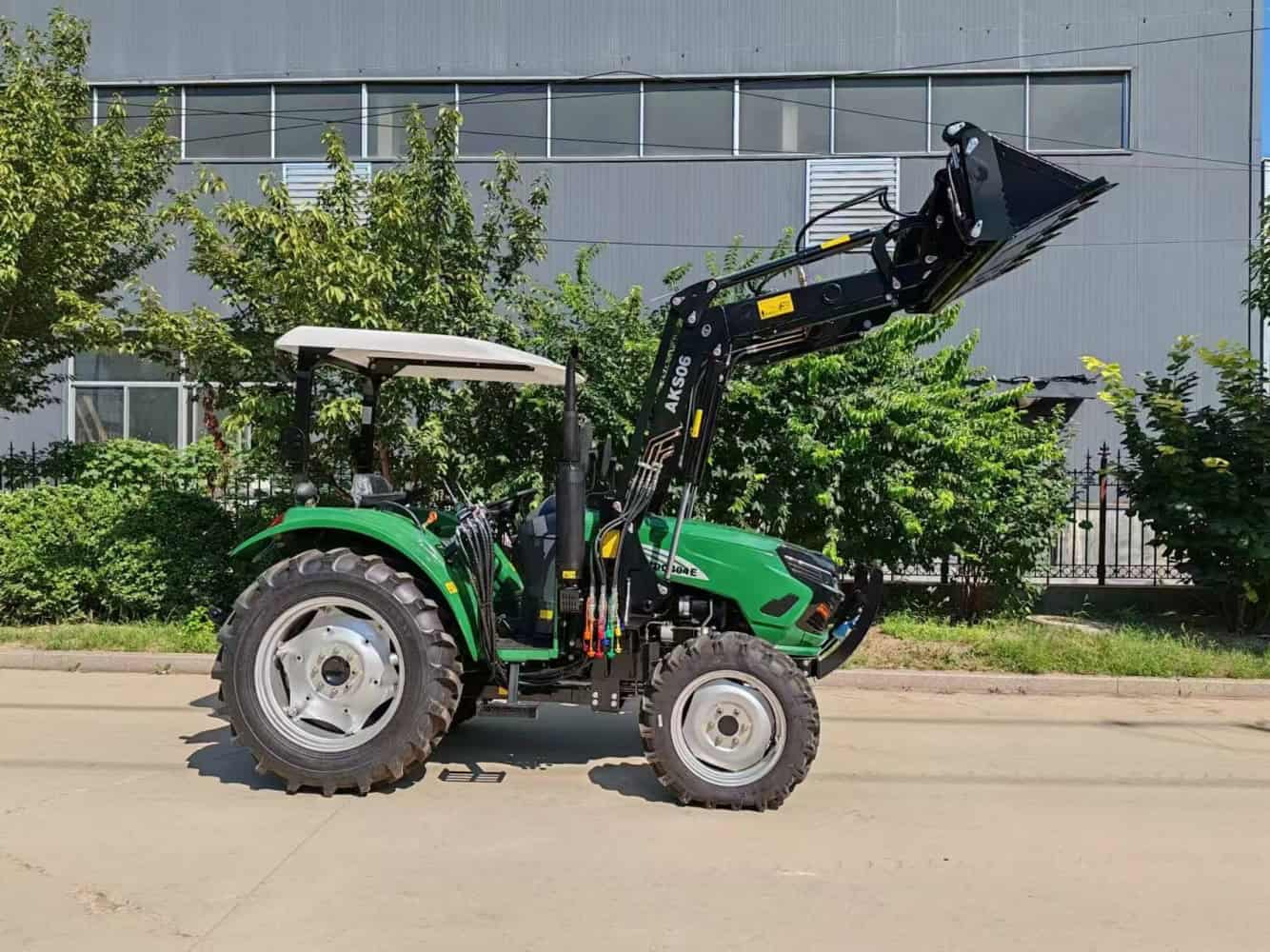

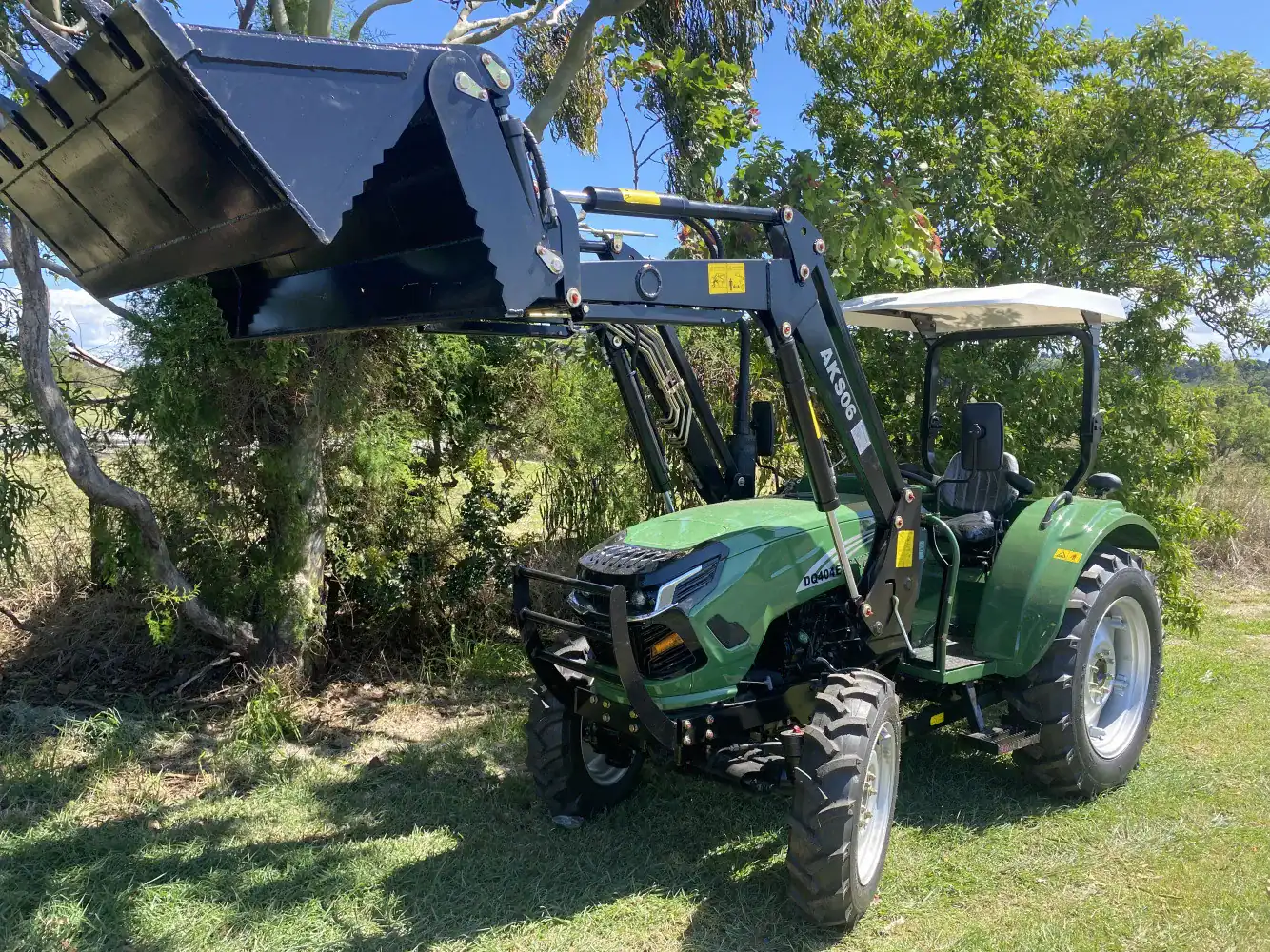

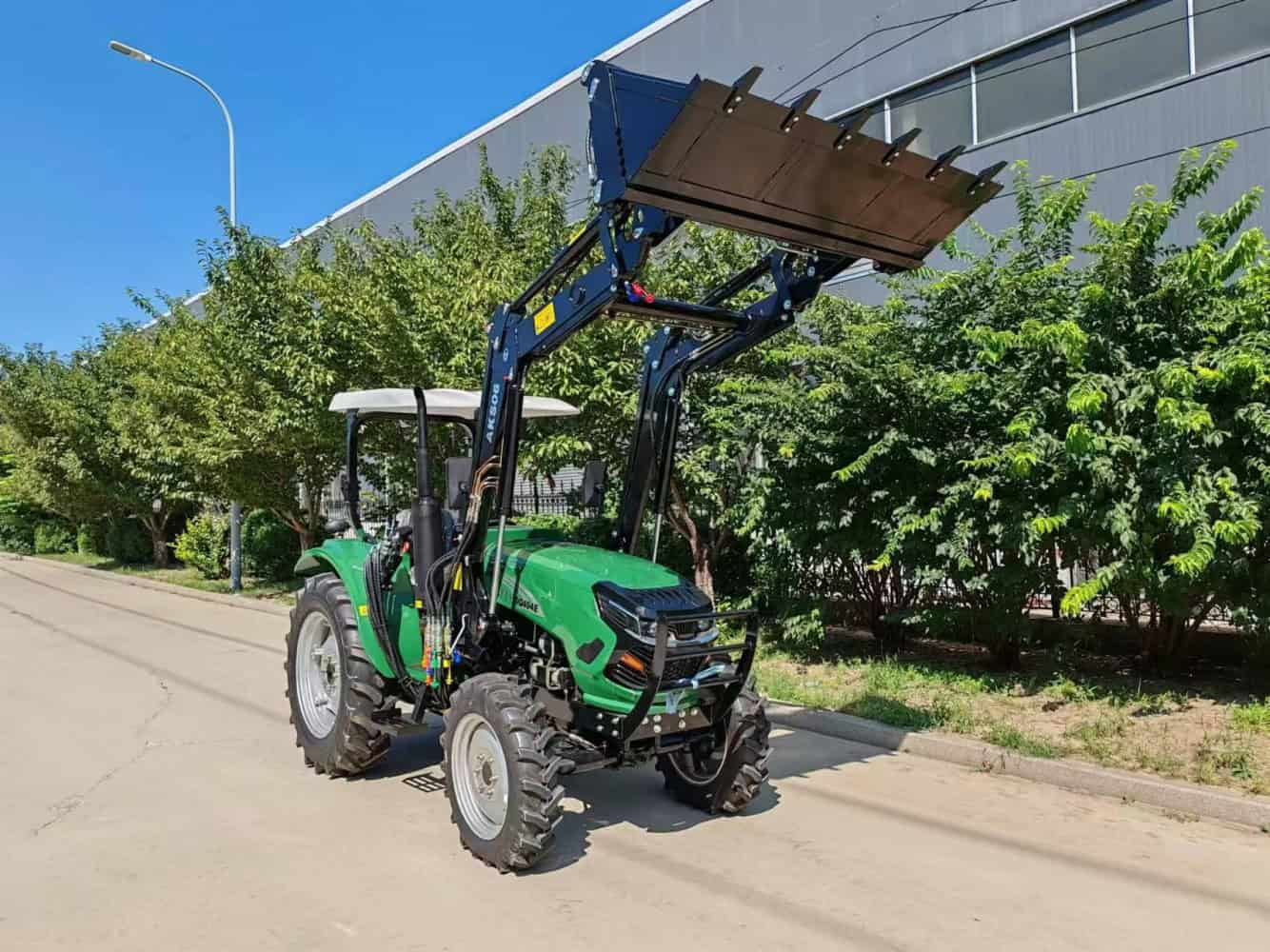

designed for hard work. The optional TZ600 front end loader comes with Euro Hitch quick release bucket and front level bar indicator. The front teeth may be removed from the bucket.
Applicable Implements and Accessories – (click on item for details) | |||
TZ06 front end loader | 5ft slasher | LZ6 Backhoe | Mini hay baler |
LZ7 Backhoe | LZ7E Backhoe |
Specifications | |
Model | DQ404 |
PTO | 540/760 rpm x 6 spline 35mm shaft, clockwise rotation |
Diff Lock | standard |
Brakes | Wet disk type |
Rear lifting capacity (KN) | 11 |
Gear speeds (km/hr) | Low: 2.65, 3.85, 5.25, 8.1 High: 11.4, 16.53, 22.57, 34.78 |
Hydraulics | Dual gear type pumps |
Swinging draw bar | standard |
ROPS | Foldable with sunshade |
Length (mm) | 3513 |
Width (mm) | 1750 |
Height (mm) | 2130 |
Wheel base (mm) | 1924 |
Front track (mm) | 1250 |
Rear track (mm) | 1200-1500 (1300 standard) |
Min ground clearance (mm) | 323 |
Agricultural ground clearance (mm) | 375 |
Min turning radius (m) | 3.4 |
Min operational mass (kg) | 2080 |
Rated traction (KN) | 12 |
Front wheels (Ag Tyres) | 8.3-20 |
Rear Wheels (Ag Tyres) | 12.4-28 |
Front Wheels (Turf tyres) | 13×9.5-16 |
Rear Wheels (Turf tyres) | 13-20 |
Lights and Electrical | 12v system, Headlights (dual beam), rear lights, brake, indicators, rear work light, rear mirrors,horn,safety switch,fuel – rpm – temp gauges |
Fuel tank | 38 Litre with easy access cover |

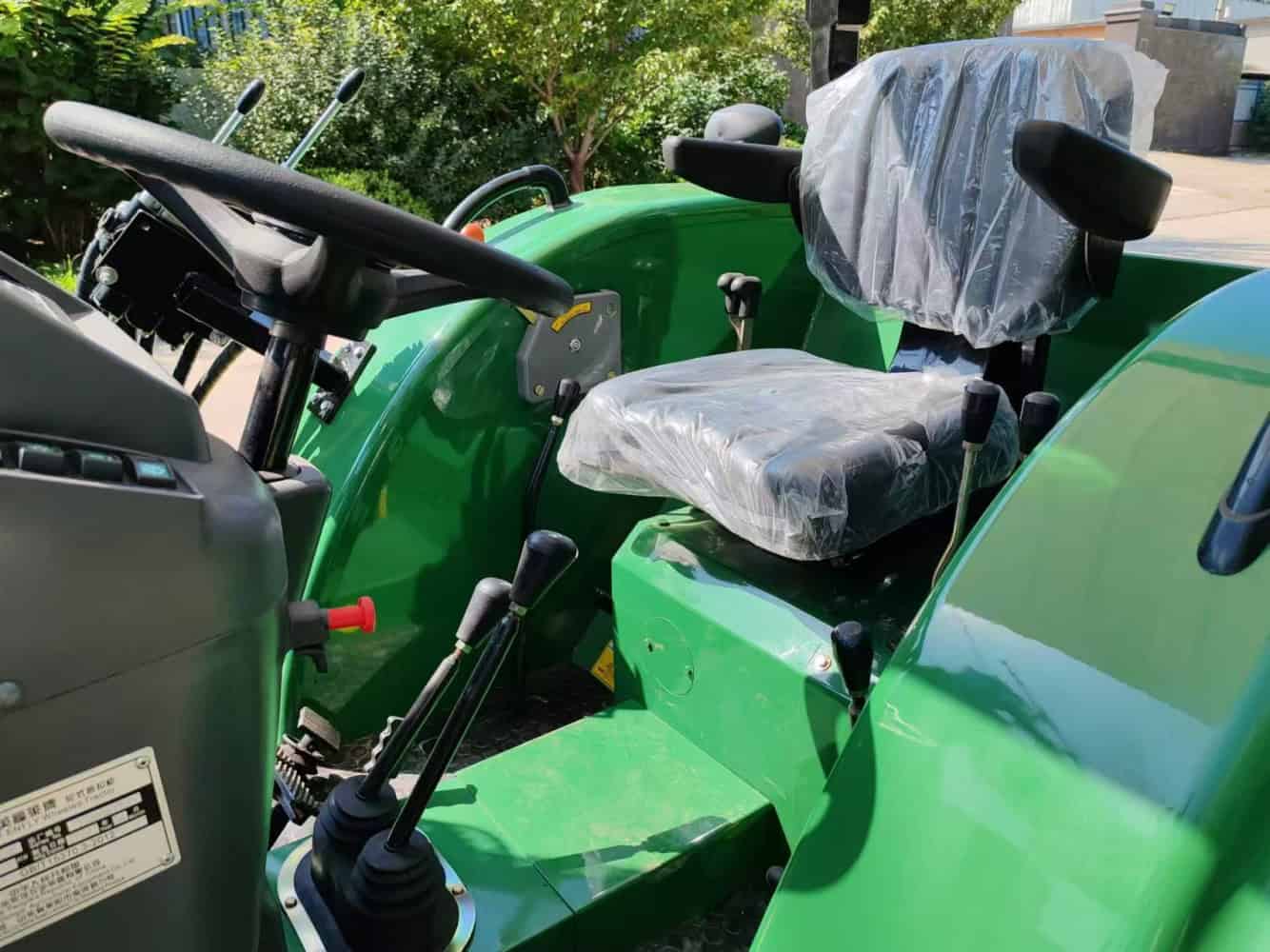

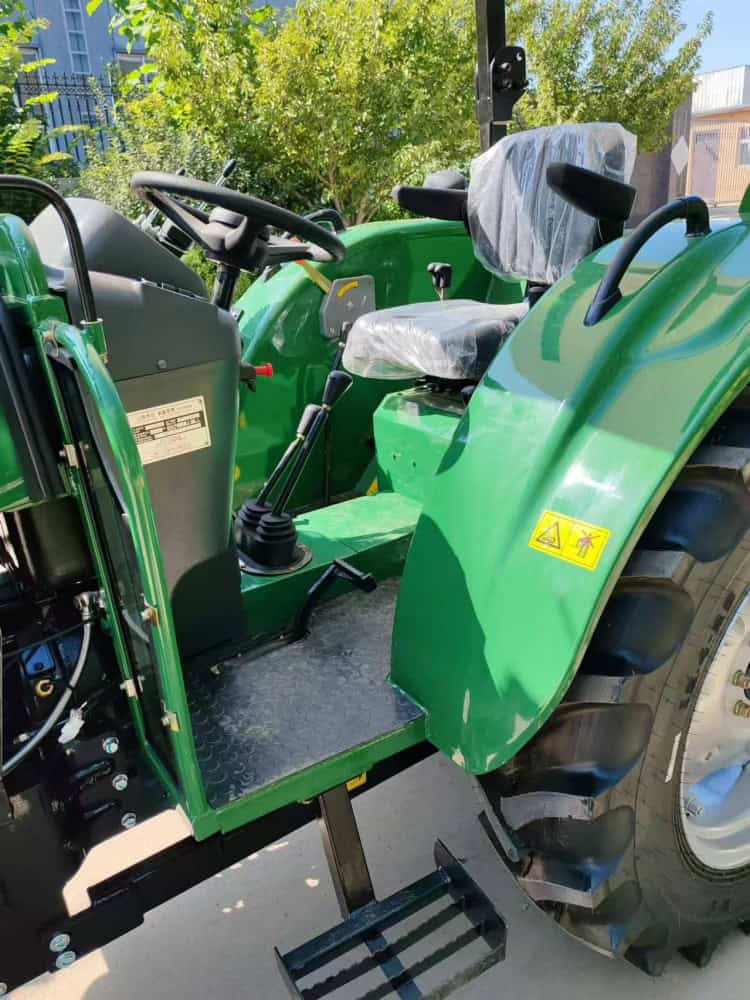

Seat | Adjustable suspension style |
