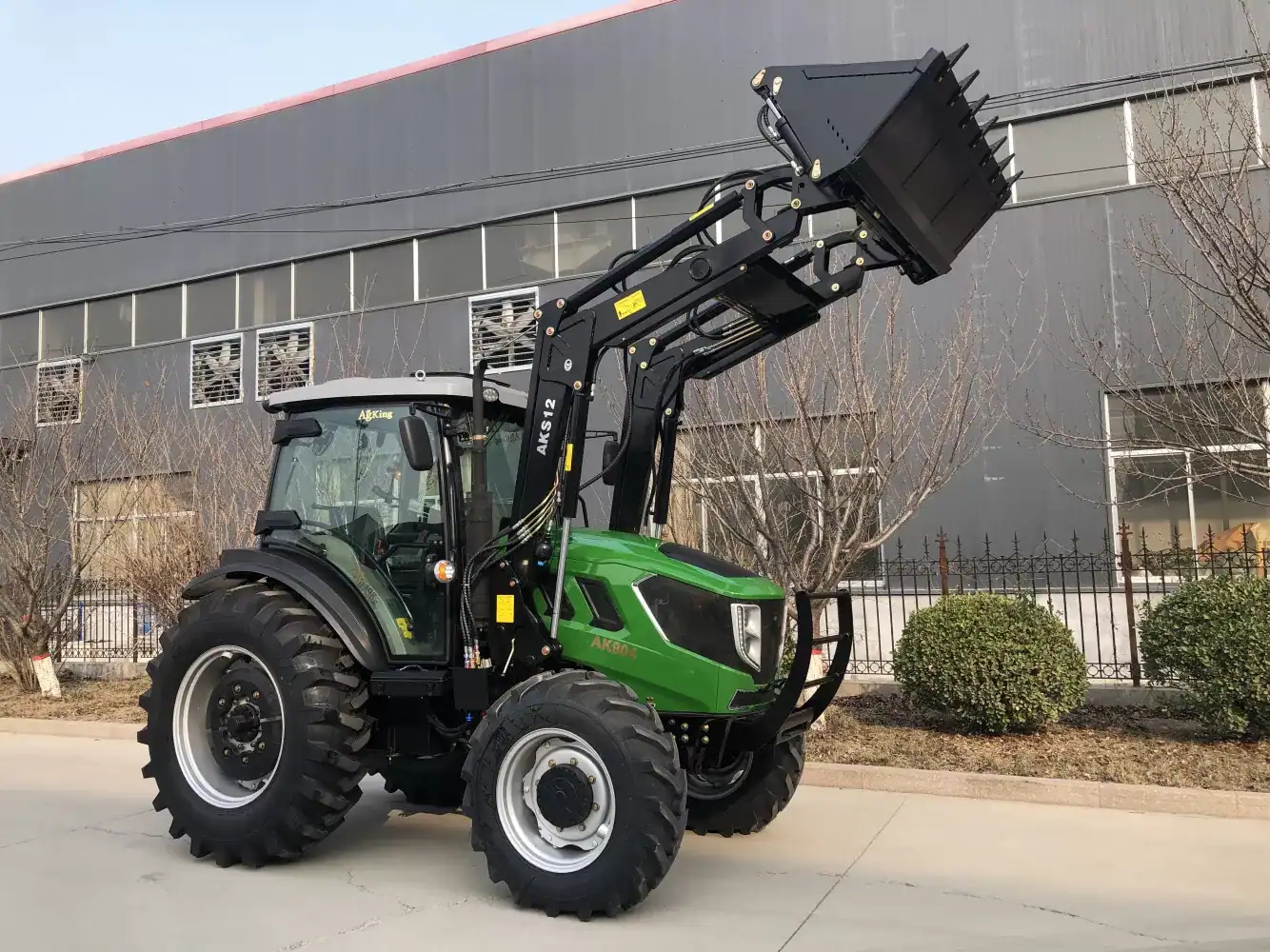

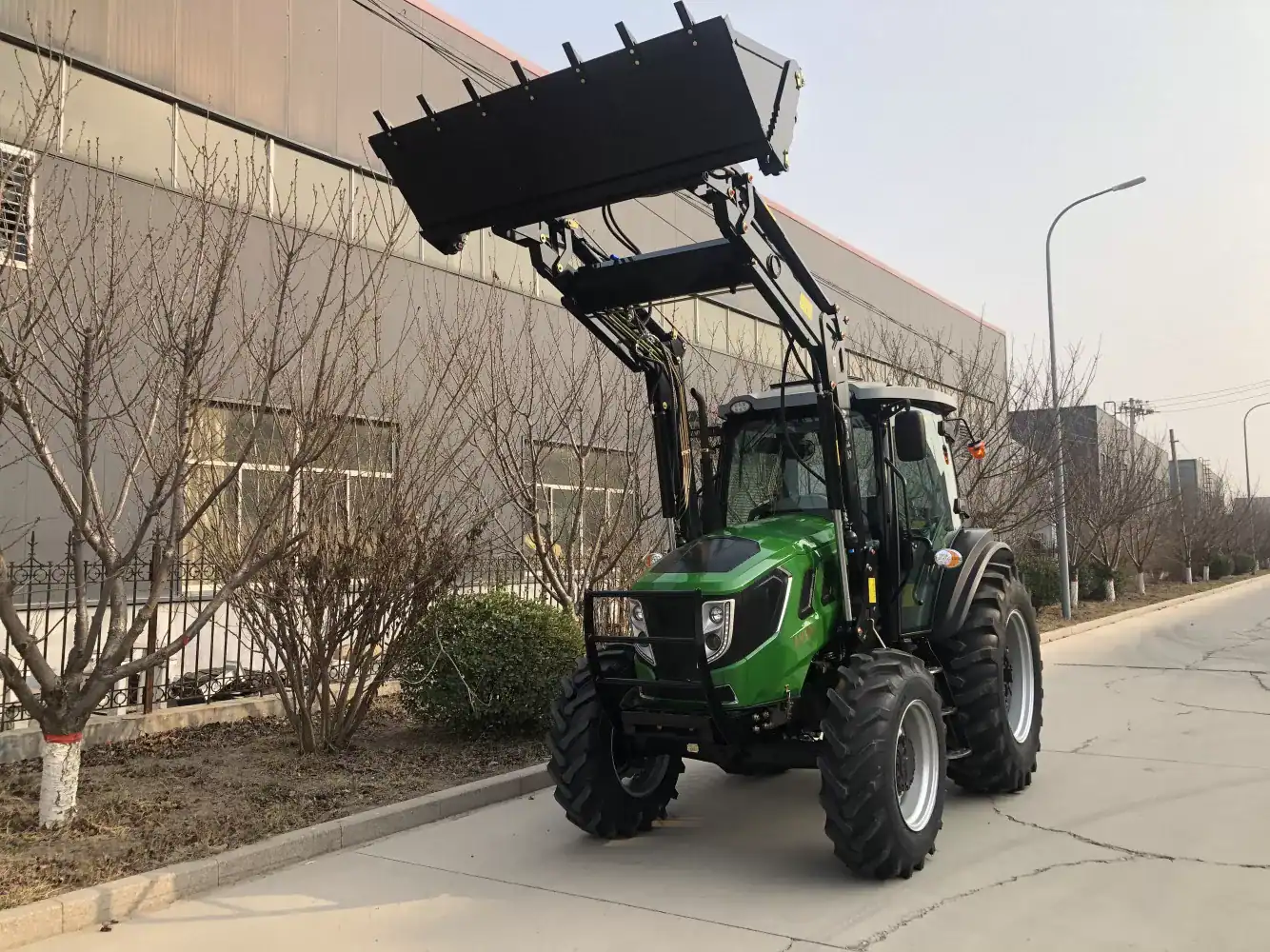

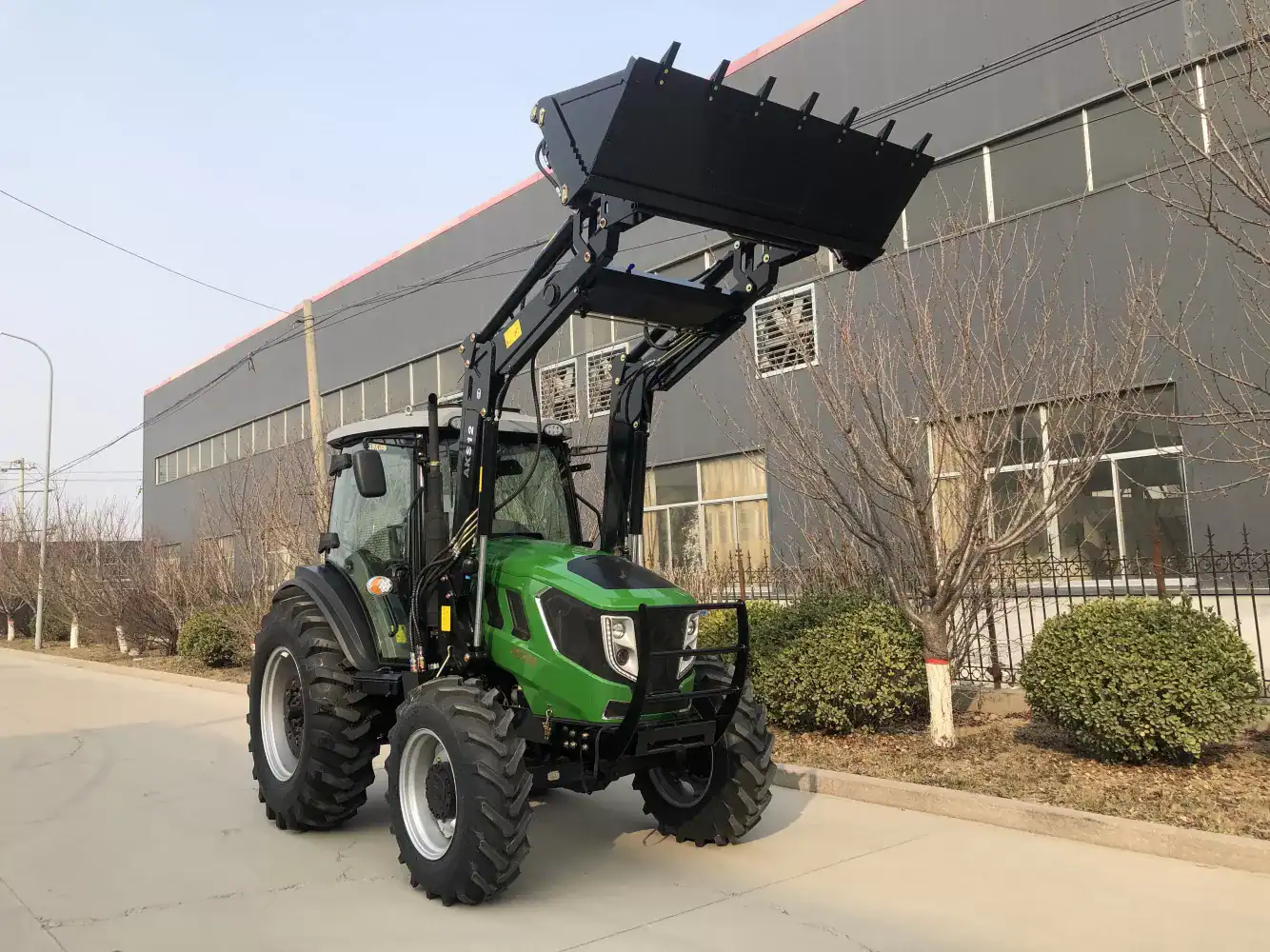

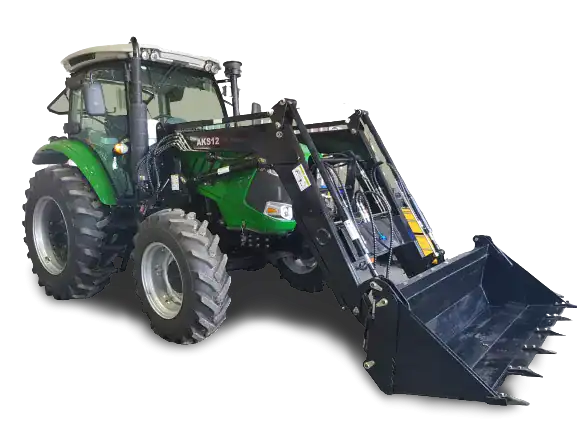

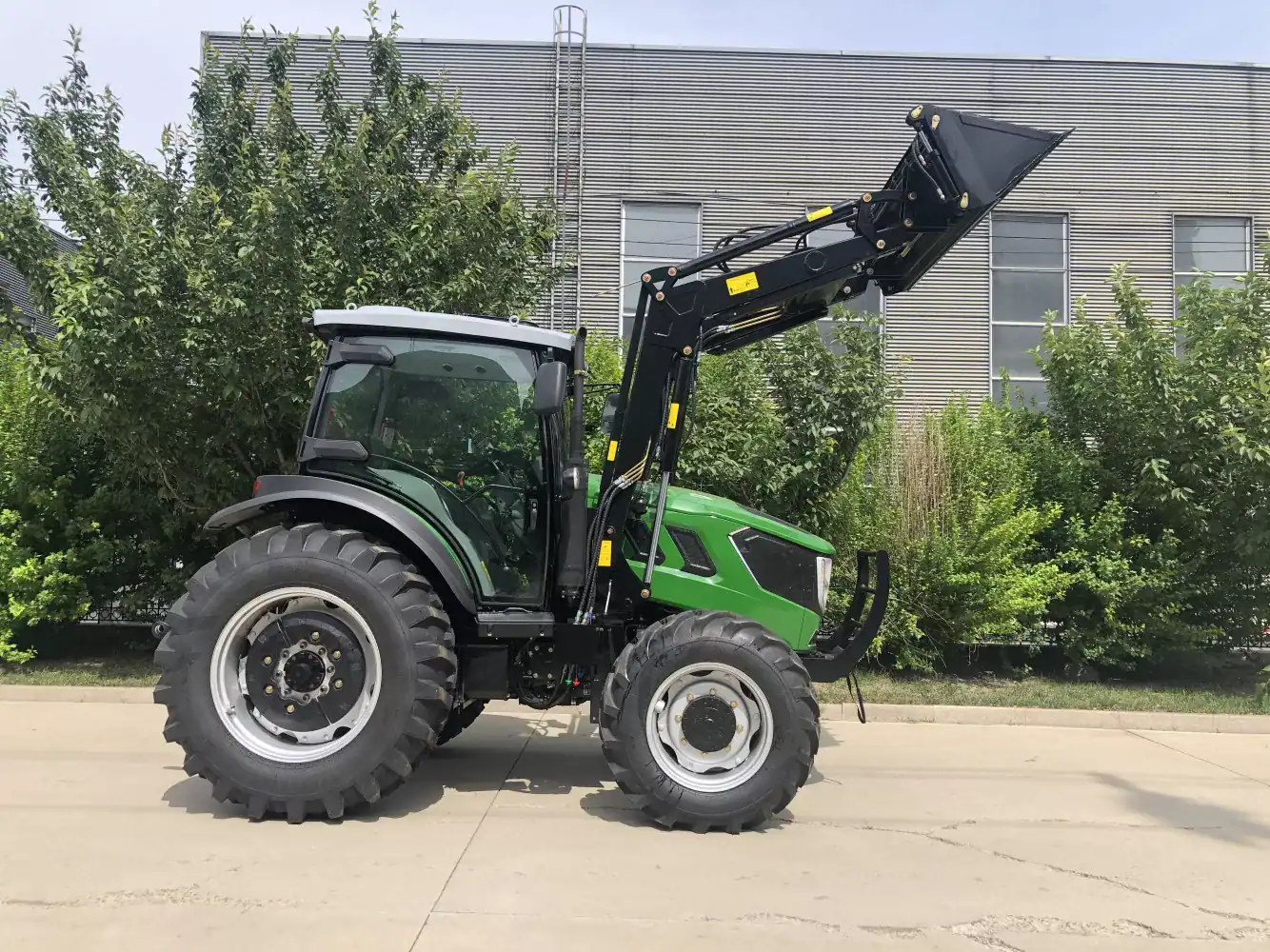

90hp Tractor AK904PD
90hp Tractor AK904PD features an air-conditioned cabin and is powered by a 90HP four-cylinder YTO diesel engine. It offers 4 Wheel Drive and comes with 12 speeds for both forward and reverse, along with a smooth shuttle shift, differential lock, and oil disc brakes. Additionally, this model includes two sets of remote hydraulics, a two-speed hand control PTO, and a twin filter air intake system. Additional features include work lights, a draw-bar, a comfortable driver seat, a USB radio, a reverse camera, and a sun visor. It also has remote control levers for the rear lift arms and hydraulic controls for added convenience.

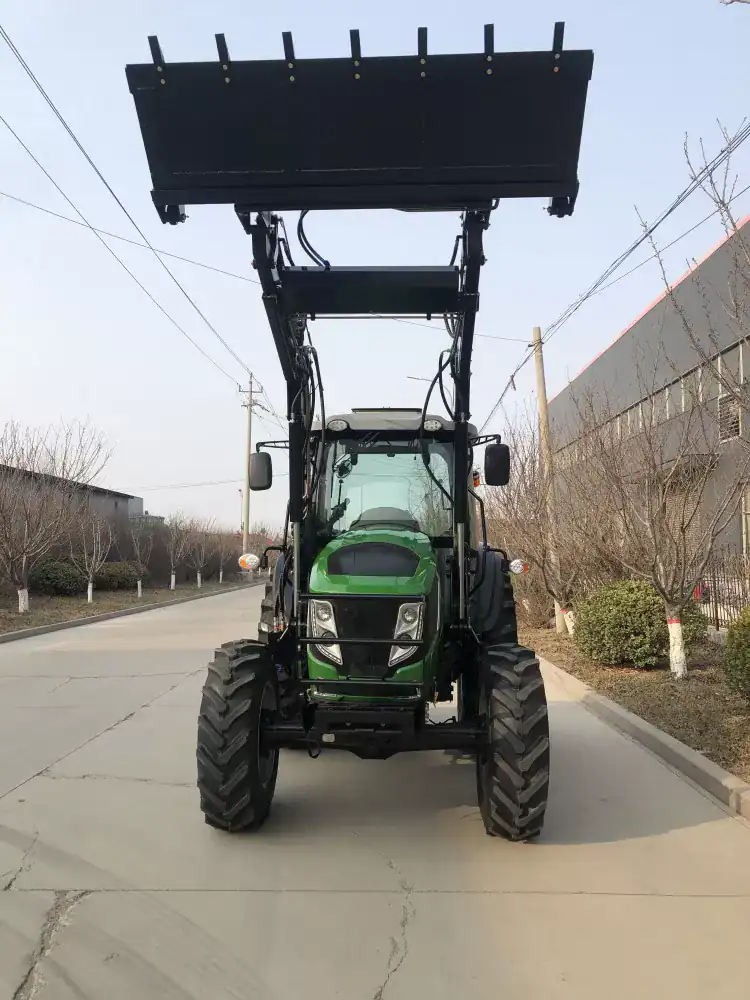

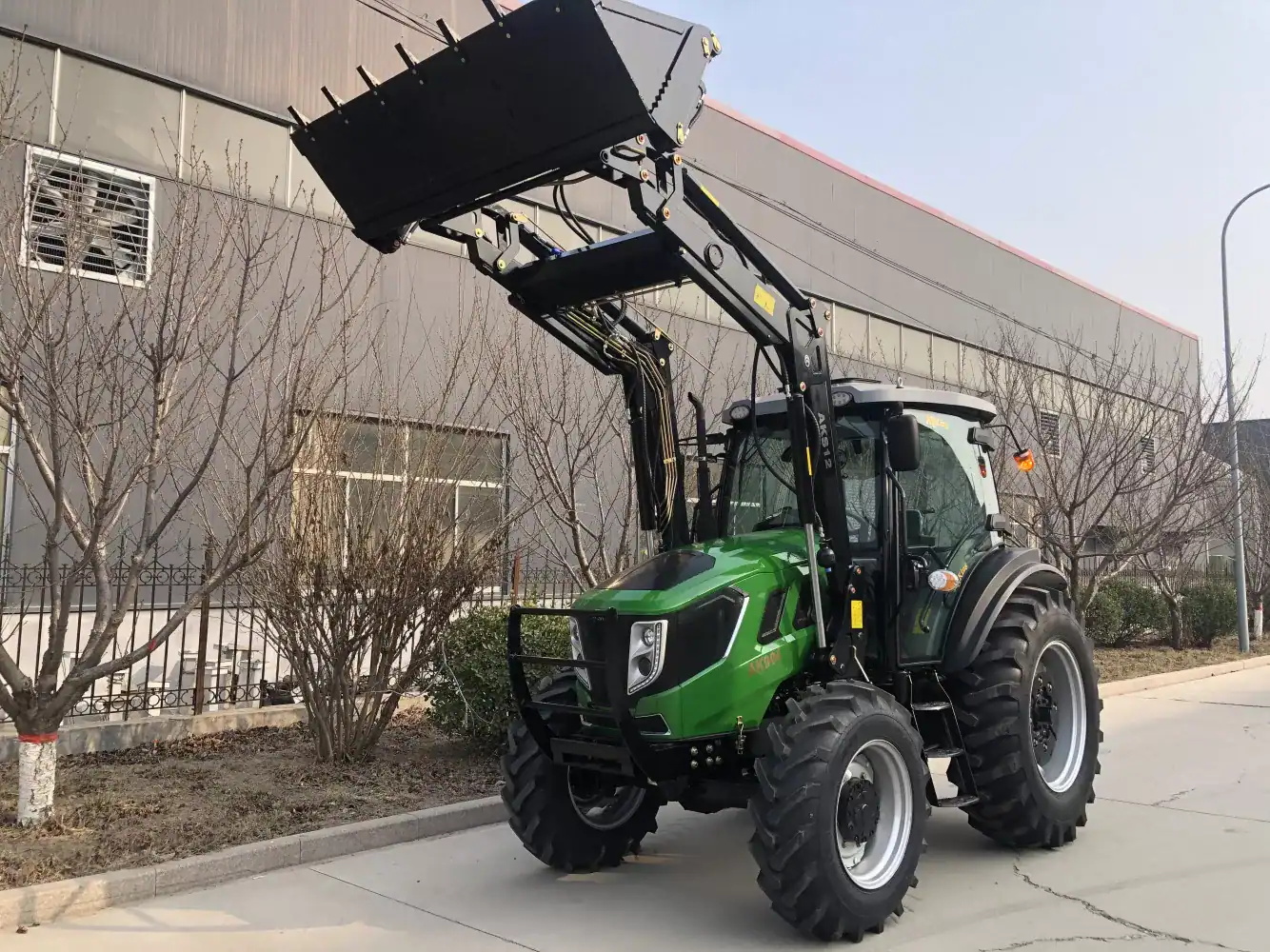

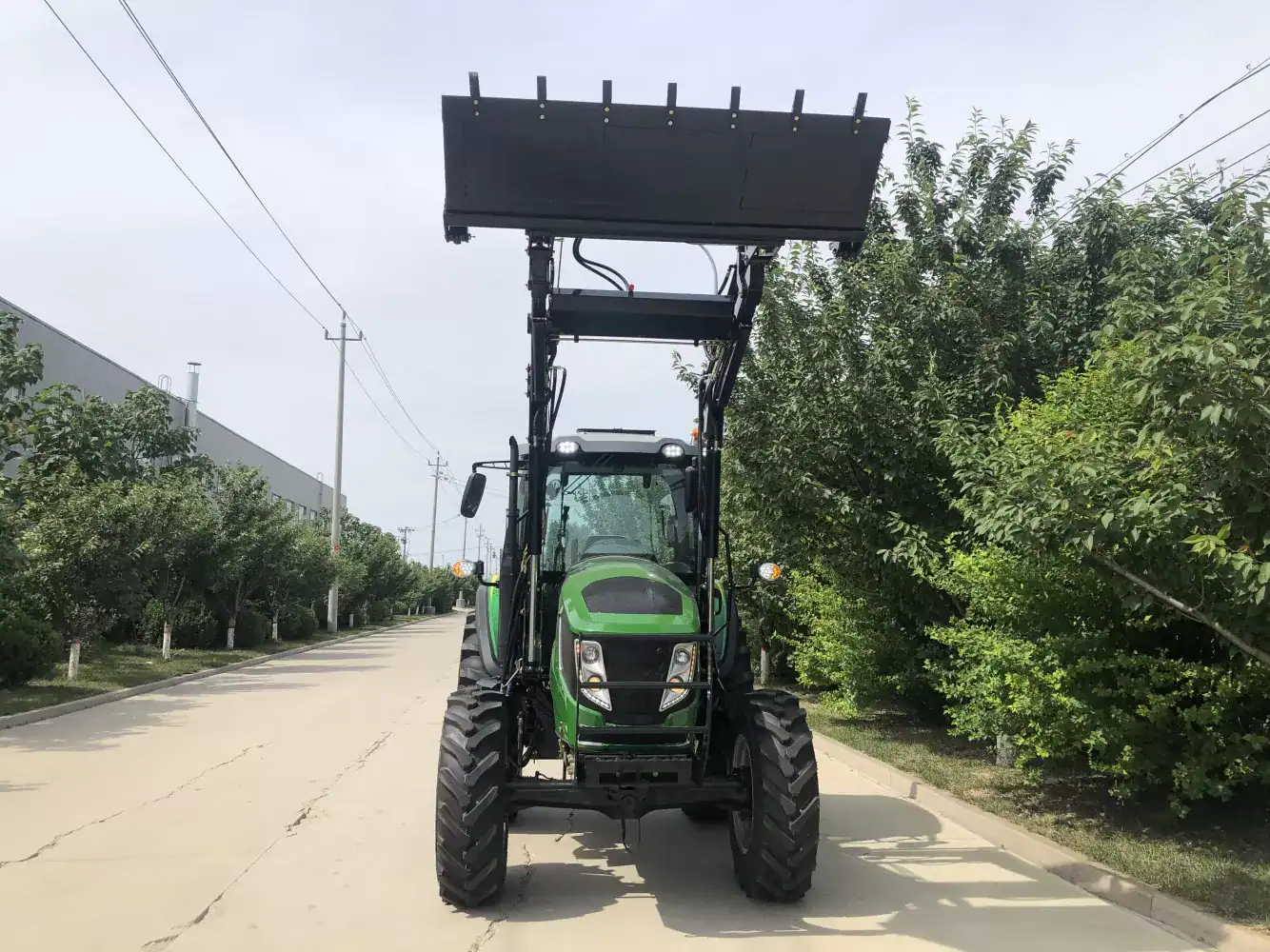

- 90HP 4WD WITH FRONT END LOADER
- EURO QUICK HITCH FEL 4 IN 1 BUCKET
- 1200 KG FRONT END LOADER SWL AND 1500KG MAX LIFT LOAD
- 12 INCH DUAL FUNCTIONAL CLUTCH WITH METAL CERAMIC FRICTION PLATE
- DEDICATED HYDRAULIC PUMP
- FORCED LIFT AND DOWN
- POWER STEERING

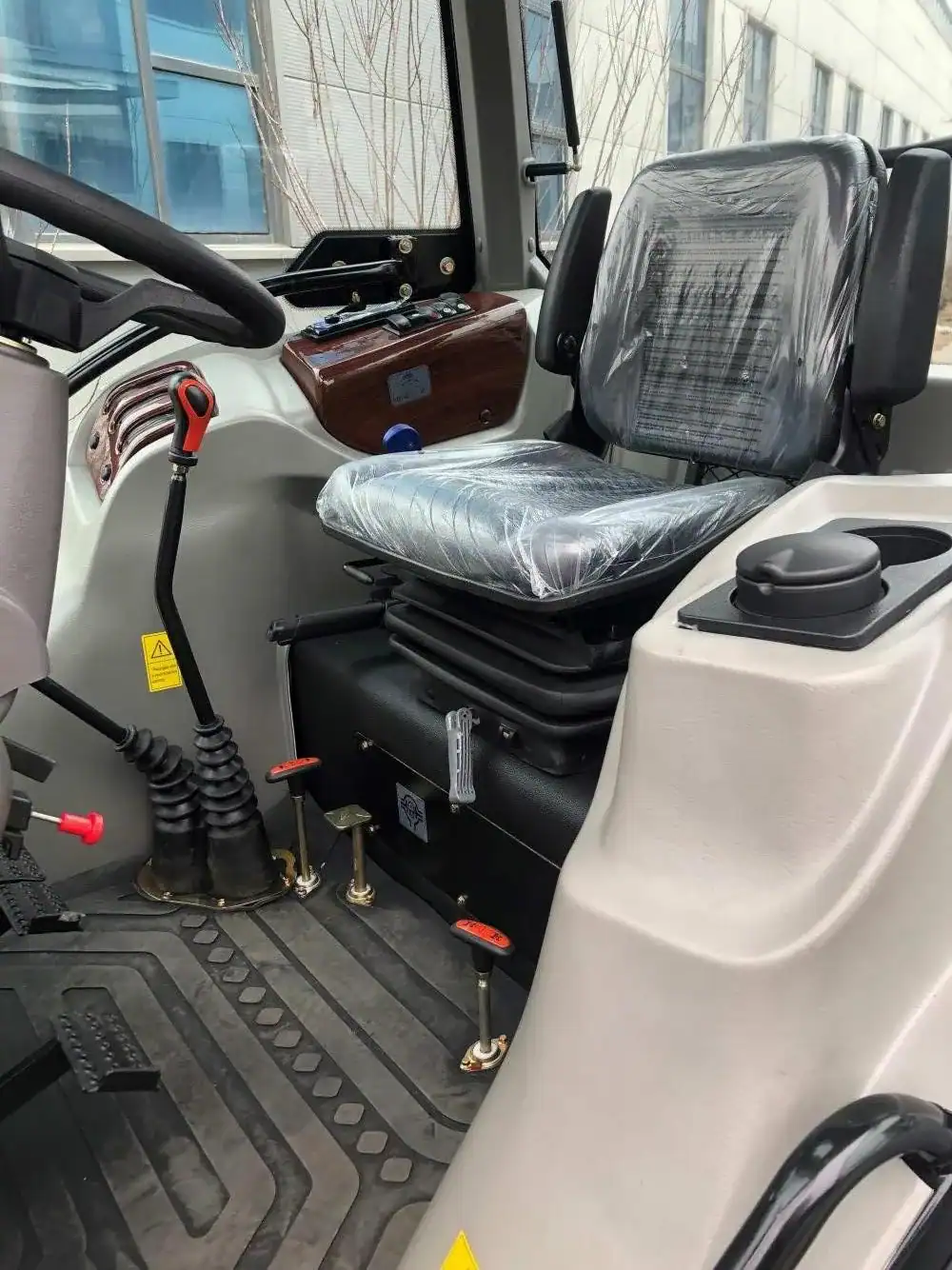

- FLAT AND CLEAR DECK WITH SIDE PLACED GEAR SELECTIONS
- HEAVY DUTY FRONT AXLE AND WHEEL RIM
- STEERING WHEEL ADJUSTABLE
- SEAT HEIGHT ADJUSTABLE

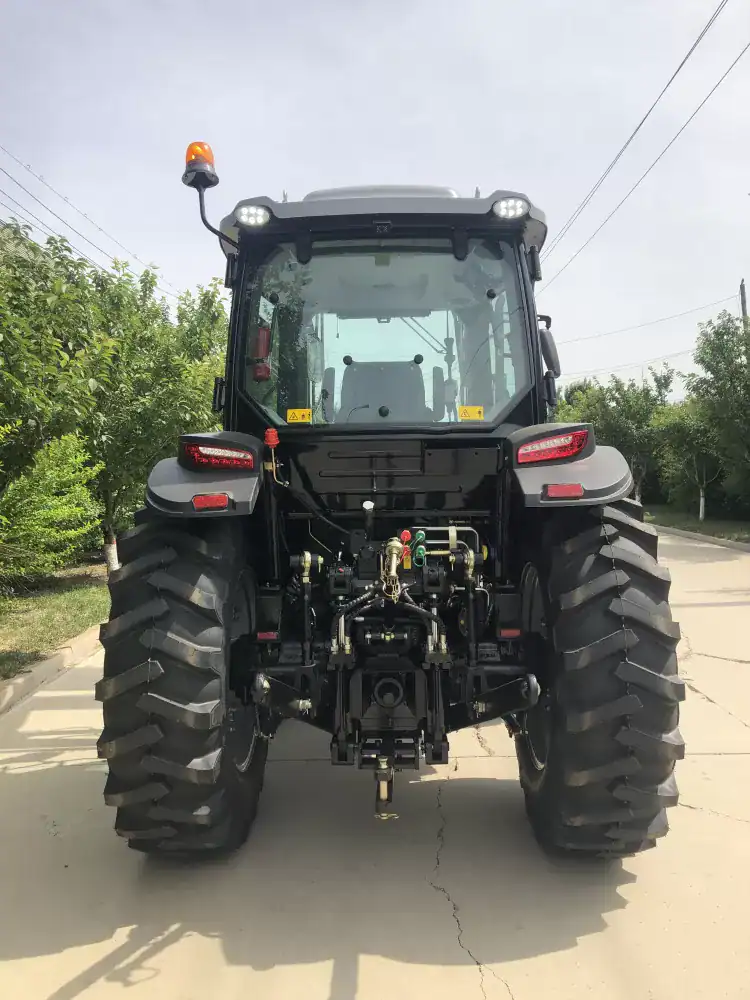

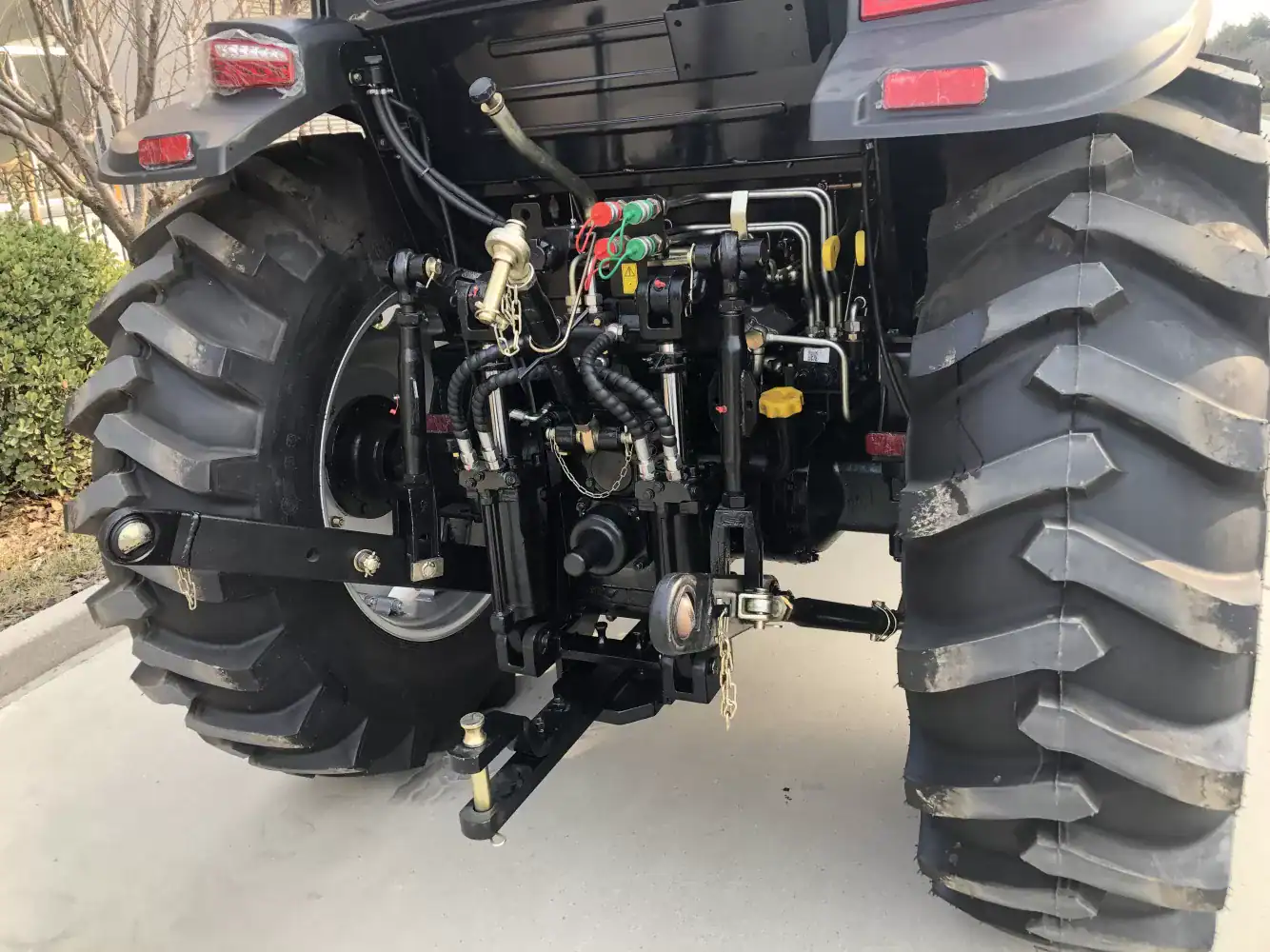

- REAR OPERATING LEVERS FOR LIFT AND HYDRAULIC REMOTE
- FRONT LOADER FIT SHOCK ABSORPTION SYSTEM
Specifications of 90hp Tractor AK904PD
| Tractor Model | 90hp Tractor AK904 | |||||||
| Rated Power | 90hp | |||||||
| Type | 4 wheel drive | |||||||
| Dimensions of tractor | Length with front loader | 6100mm | ||||||
| Width | 2180mm | |||||||
| Height | 2880mm | |||||||
| Tread | Front Wheel | 1610mm | ||||||
| Rear Wheel | 1620-2020mm | |||||||
| Wheel Base | 2200mm | |||||||
| Mini Ground Clearance | 405mm | |||||||
| Weight with front Loader | 5100kg | |||||||
| Engine | Model | YTO LR4M5-23 | ||||||
| Type | 4 cylinders, Water Cooled and 4-stroke | |||||||
| Rated Power | 90HP (66.2KW) | |||||||
| Rated speed | 2300r/min | |||||||

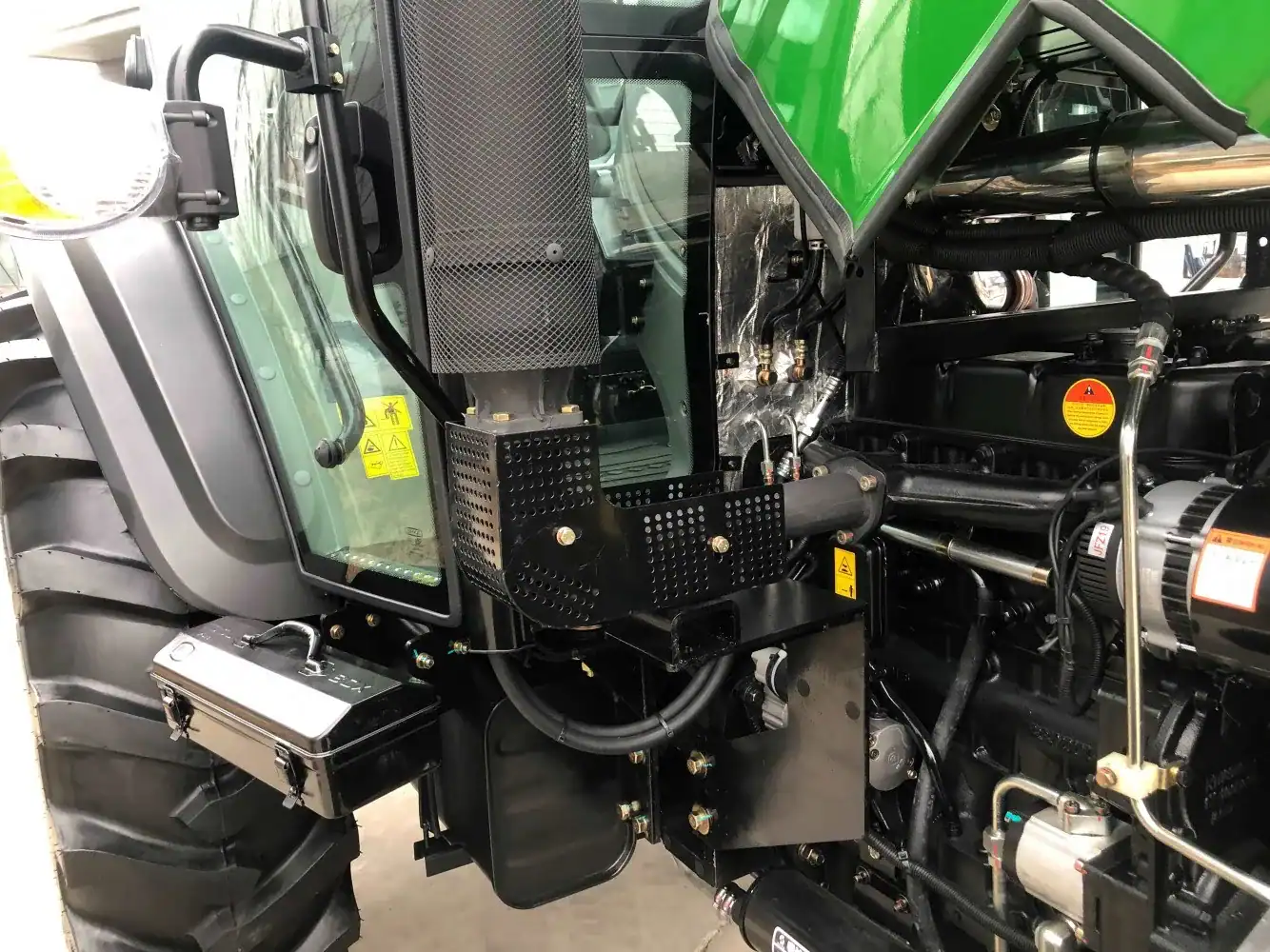

| Double air filter | extra protection from dust | |||||||
| Fuel | Diesel Oil | |||||||
| Tire | Tire type | Agri tyre | Radial tyre | |||||
| Front Wheel | 13.6-24 | 320/85R24 | ||||||
| Rear Wheel | 18.4-34 | 460/85R30 | ||||||
| Fuel tank capacity | 150L | |||||||
| Hydraulic tank | 20L | |||||||
| Clutch | Dry-friction，Two Stage,Ceramic disc | |||||||
| Clutch safety start switch | Yes | |||||||
| Easy clean radiator screen | Yes | |||||||
| Tool box | Yes | |||||||
| Service tools | Yes | |||||||
| Swing draw bar | Yes | |||||||
| Wheel ballast weight | 340kg(two layers) | |||||||
| Steering | Power steering | |||||||
| Air conditioning cabin | Full view cab with air conditioning,external service door to access cabin top for air con service,with USB charger | |||||||
| Transmission Box | 16F+8R | |||||||
| Speed range | Forward(1.5-32.2km/h)/ Reverse(2.3-33.2km/h) | |||||||
| rear lift arm control lever | operates lift arm from rear of tractor | |||||||
| rear remote hydraulic valve control | operator can control remote valves from the back | |||||||
| Hydraulic output | 2 sets of rear remotes,60L/min | |||||||
| Suspension Type | three-point suspension rear auto hitch for lower link arms(Cat 3 ball pin) | |||||||
| Lift capacity at 610mm behind hitch point | 2000kg | |||||||
| PTO shaft | Type and Rev（r/min） | Non-independent type 540/1000 | ||||||
| SplineSize | I35 Rectangle Spline With 6 teeth | |||||||
| Spare Parts | Oil Filter, Fuel Filter, Fuses, Oil Seal, etc | |||||||
Front End Loader Model |
WS1500 |
||||||
| Matching Tractor | AK 904 | ||||||
| Specification | as shown in below drawings | Unit | |||||
| Max lifting height at implement pivot pin | H | mm | 3710 | ||||
| Dumping Height | A | mm | 2720 | ||||
| Overloading Height | L | mm | 3490 | ||||
| Dumping Distance | W | mm | 740 | ||||
| Ground Clearance at Arm Pivot Pin | B | mm | 1780 | ||||
| Max.Tip in Angle | X | degree | 54 | ||||
| Tip out Angle | Z | degree | 58 | ||||
| Crowd angle at lowered lift arm | V | degree | 145 | ||||
| Digging Depth | S | mm | 180 | ||||
| Lifting Force at implement pivot pin | Q1 | kg | 2308 | ||||
| Q2 | kg | 1452 | |||||
| Bucket Width | mm | 2000 | |||||
| Bucket Capacity | m3 | 0.7 | |||||
| Safe/Max Lifting weight | kg | 1200 / 1500 | |||||
| Front end Attachments | Pallet forks, Hay forks, Bale grabber, Log grabber,Level Bar, Post Hole Digger, Rock Bucket, Clamp on Pallet Forks, Clamp on bale forks. |
||||||
By AgKing
AgKing also provides a genuine 36 Months warranty for the Tractors and Implements we sell. Furthermore, we hold parts in Australia.
