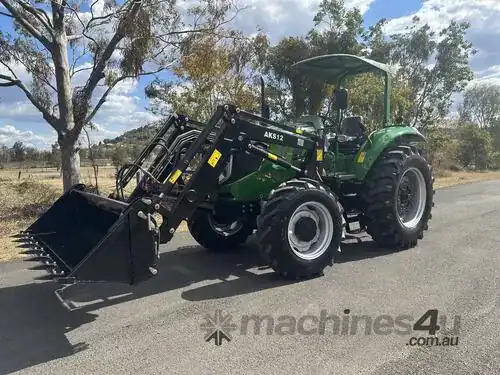

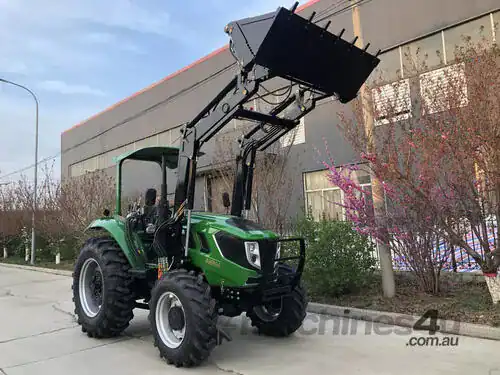

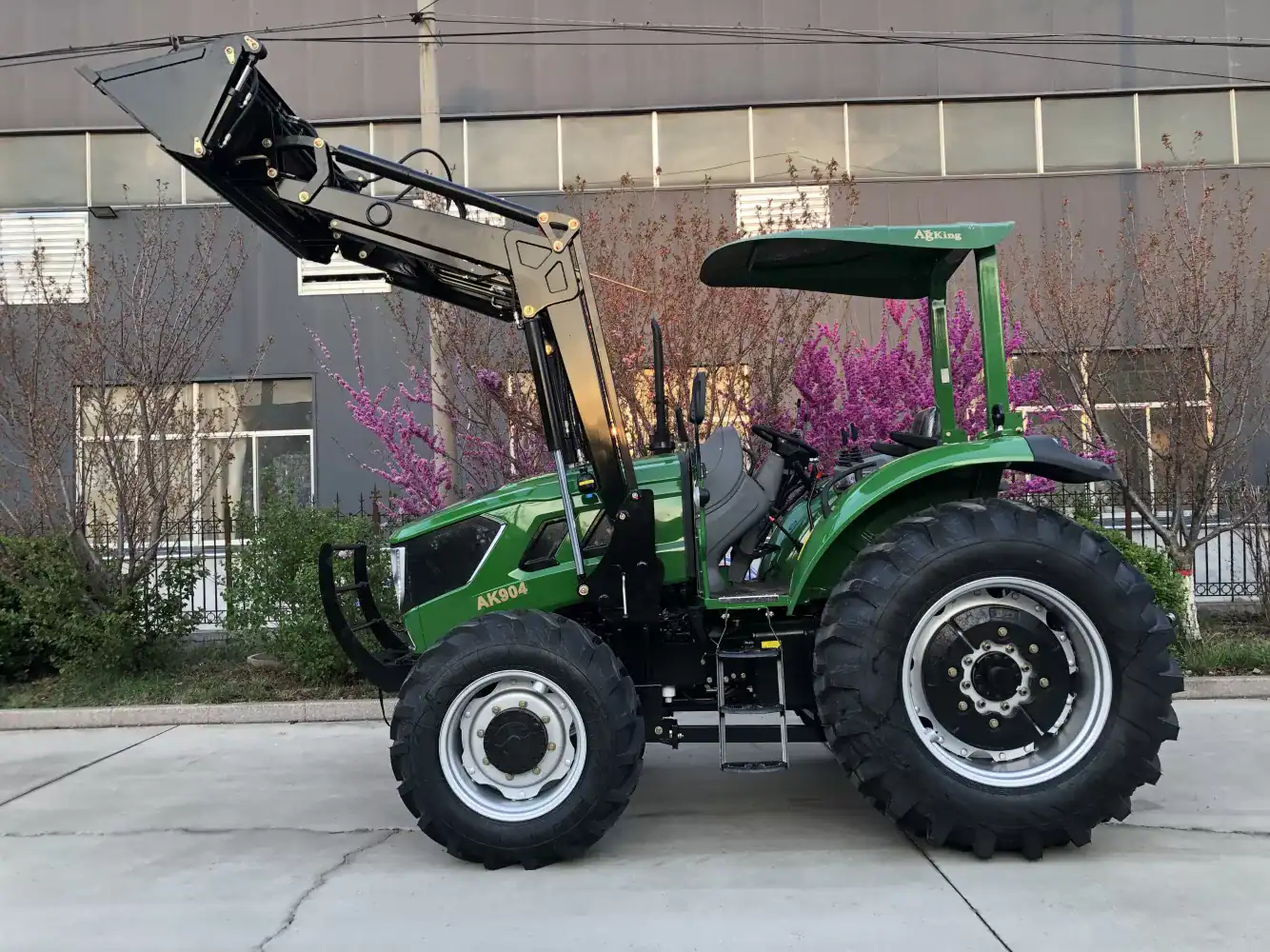

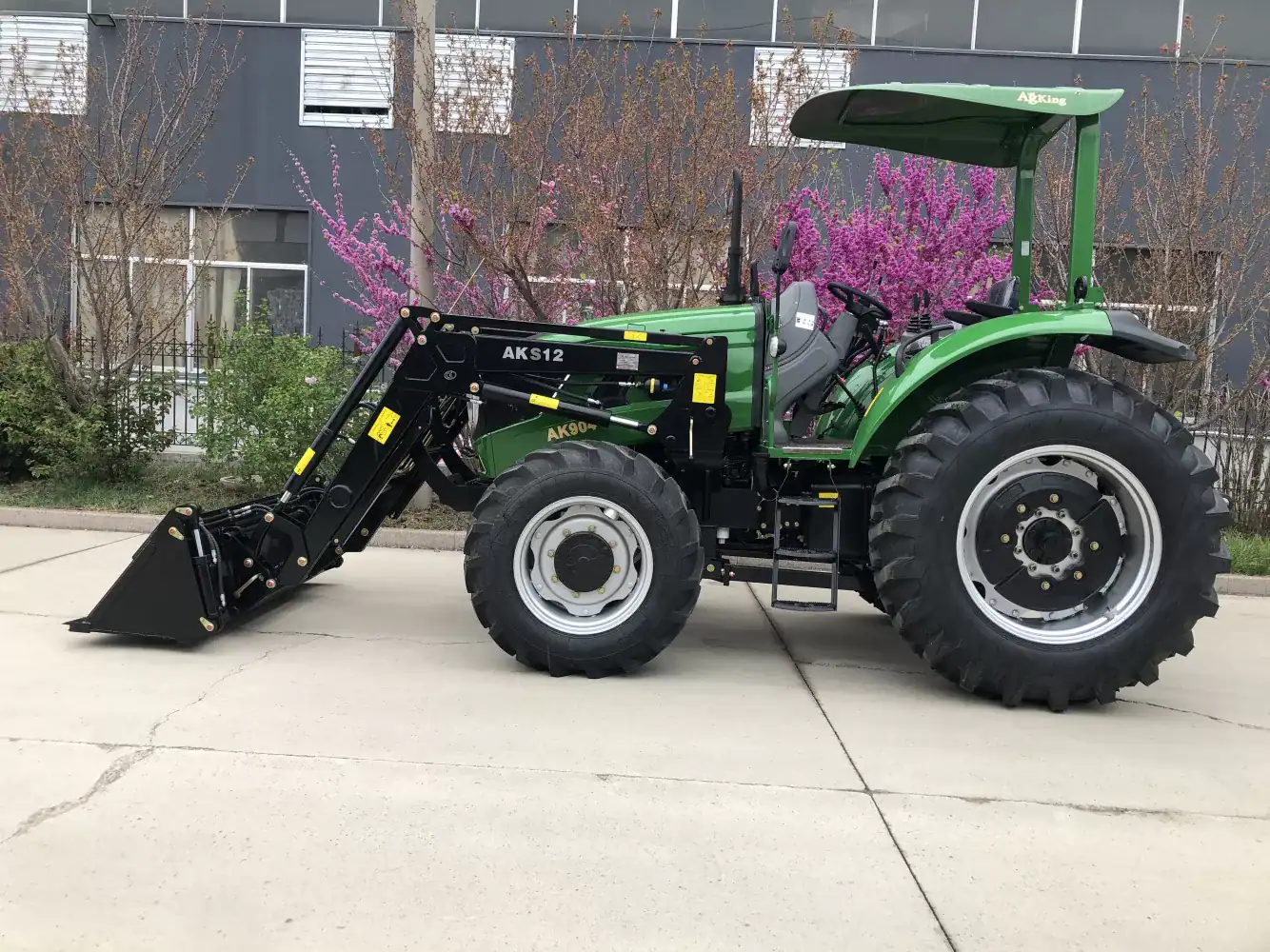

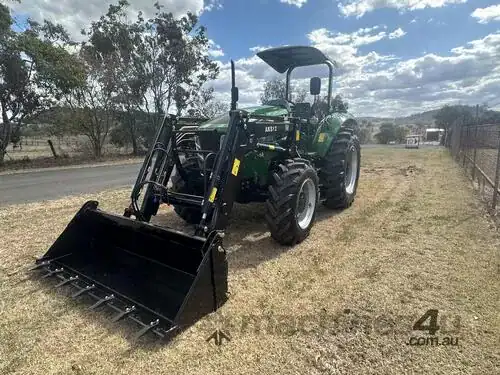

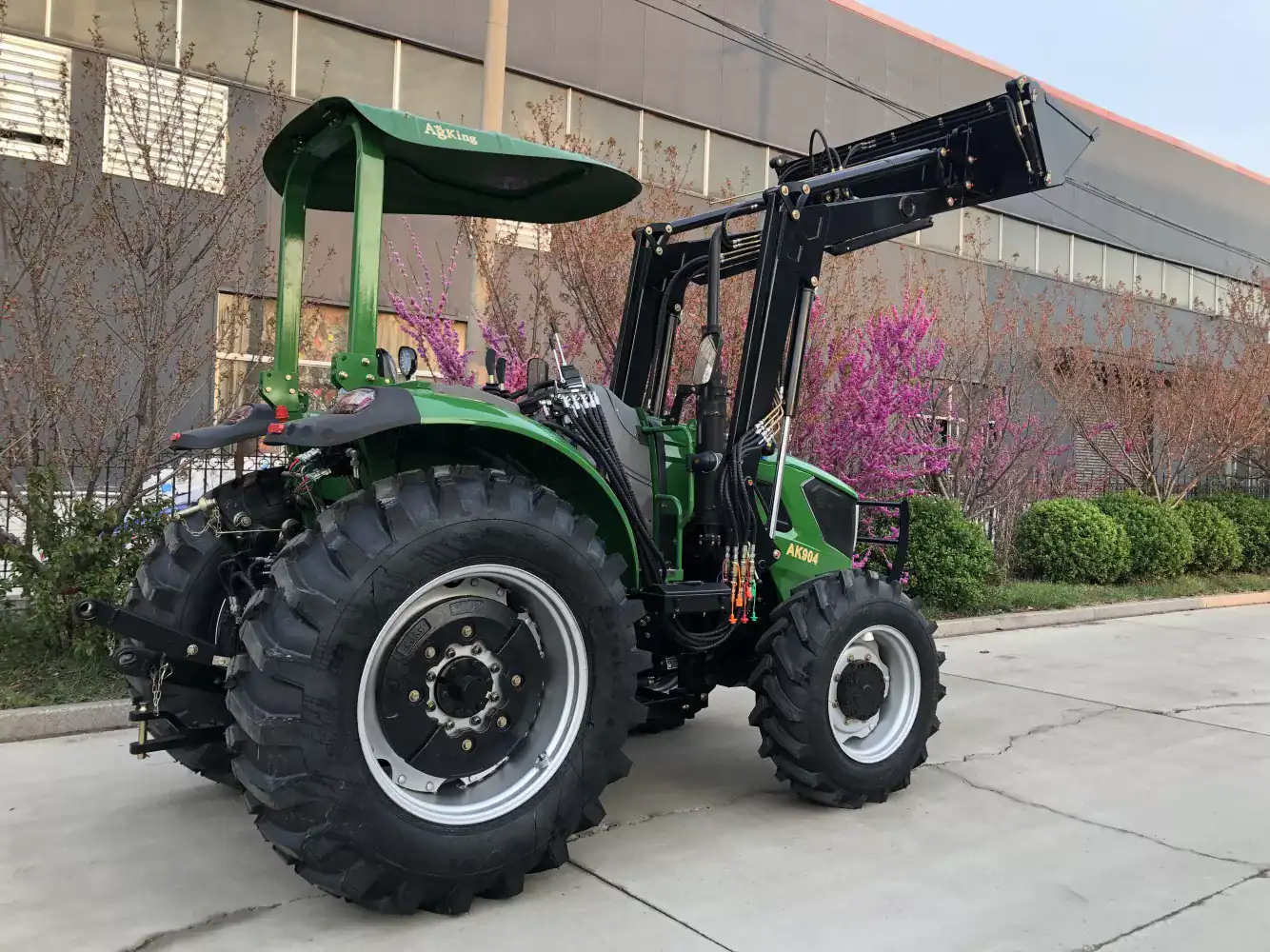

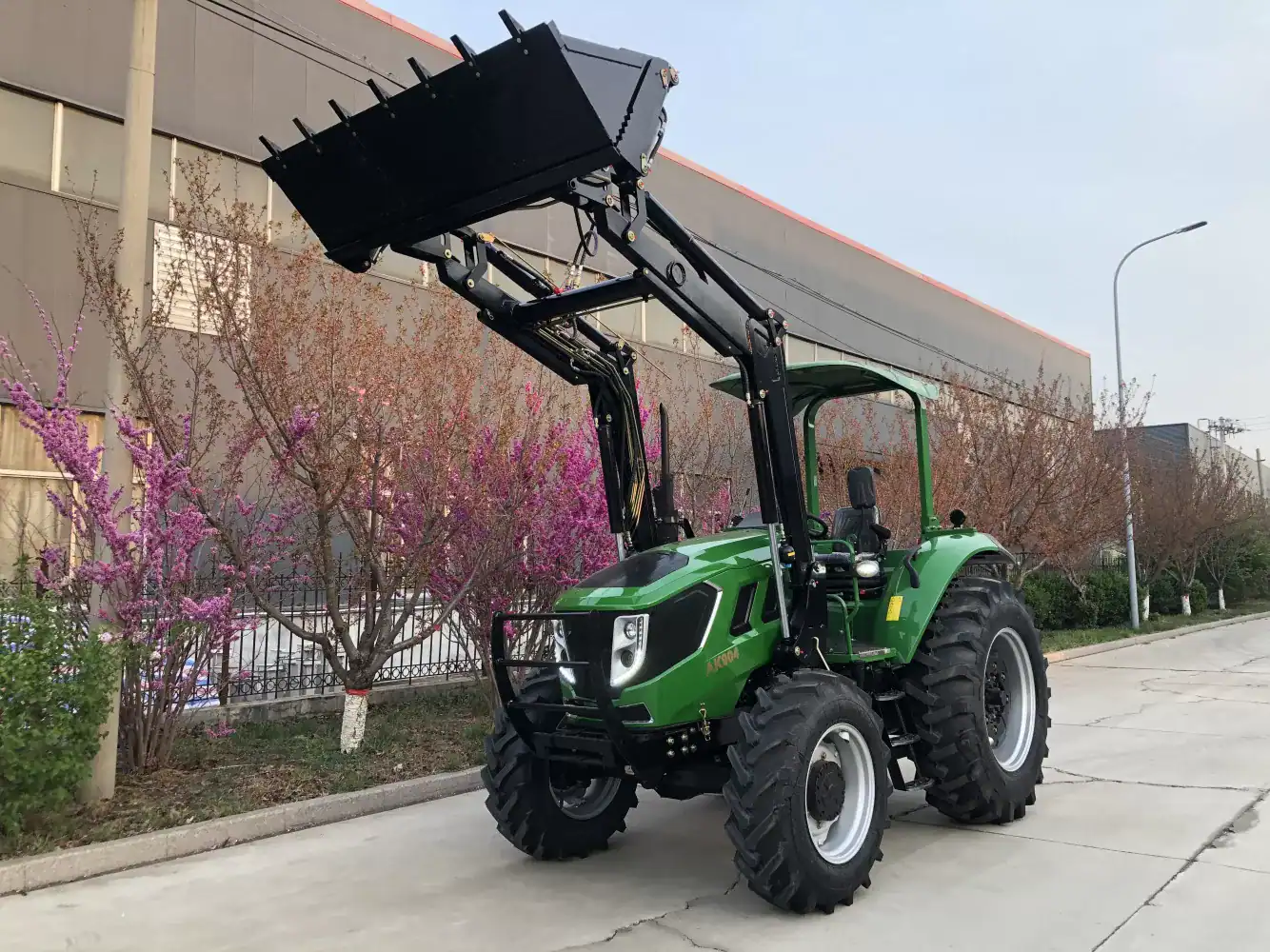

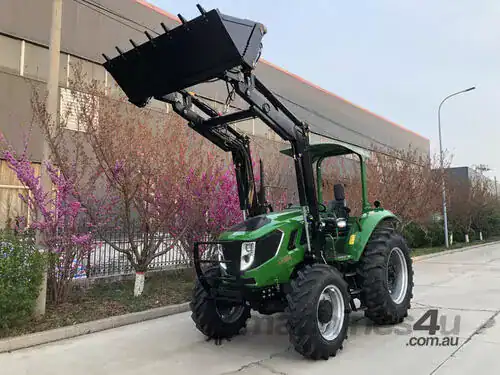

90hp Tractor AK904R
Tractor Packages available
The 90hp Tractor AK904R is a robust piece of machinery. It features a 90HP four-cylinder YTO diesel engine, providing reliable power for various tasks. Moreover, its four-wheel drive ensures excellent traction in different terrains.
In addition, the tractor has a 12-speed transmission with soft shuttle shift, enabling smooth operation in both forward and reverse. The differential lock enhances traction on challenging surfaces, while the oil disc brakes offer effective stopping power.

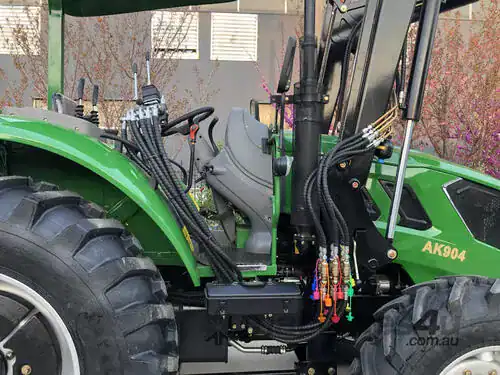

Furthermore, it includes two sets of remote hydraulics for versatile attachment use, along with a two-speed hand control PTO for flexibility with implements. The twin filter air intake system improves engine performance, and work lights provide visibility in low-light conditions. Lastly, the draw bar is ideal for towing and hitching various implements. This tractor is well-equipped for a range of agricultural or landscaping tasks!
Specifications
Tractor Model | 90hp Tractor AK904 | |||||||
Rated Power | 90hp | |||||||
Type | 4 wheel drive | |||||||
Dimensions of tractor | Length with front loader | 6100mm | ||||||
Width | 2180mm | |||||||
Height | 2880mm | |||||||
Tread | Front Wheel | 1610mm | ||||||
Rear Wheel | 1620-2020mm | |||||||
Wheel Base | 2200mm | |||||||
Mini Ground Clearance | 405mm | |||||||
Weight with front Loader | 5100kg | |||||||
Engine | Model | YTO LR4M5-23 | ||||||
Type | 4 cylinders, Water Cooled and 4-stroke | |||||||
Rated Power | 90HP (66.2KW) | |||||||
Rated speed | 2300r/min | |||||||
Double air filter | extra protection from dust | |||||||
Fuel | Diesel Oil | |||||||
Tire | Tire type | Agri tyre | Radial tyre | |||||
Front Wheel | 13.6-24 | 320/85R24 | ||||||
Rear Wheel | 18.4-34 | 460/85R30 | ||||||
Fuel tank capacity | 150L | |||||||
Hydraulic tank | 20L | |||||||
Clutch | Dry-friction,Two Stage,Ceramic disc | |||||||
Clutch safety start switch | Yes | |||||||
Easy clean radiator screen | Yes | |||||||
Tool box | Yes | |||||||
Service tools | Yes | |||||||

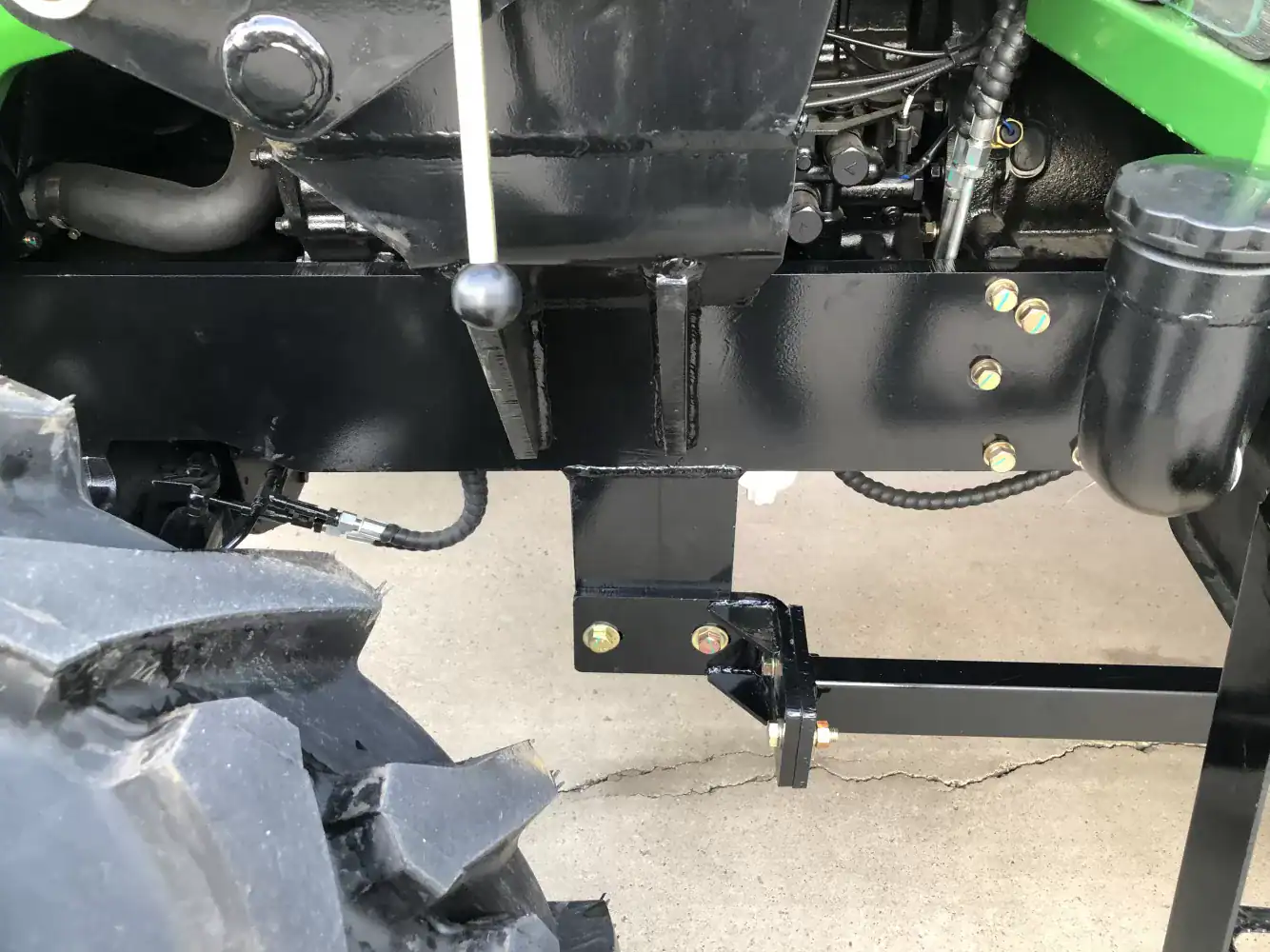

Swing draw bar | Yes | |||||||
Wheel ballast weight | 340kg(two layers) | |||||||
Steering | Power steering | |||||||
Air conditioning cabin | Full view cab with air conditioning,external service door to access cabin top for air con service,with USB charger | |||||||
Transmission Box | 16F+8R | |||||||
Speed range | Forward(1.5-32.2km/h)/ Reverse(2.3-33.2km/h) | |||||||
rear lift arm control lever | operates lift arm from rear of tractor | |||||||
rear remote hydraulic valve control | operator can control remote valves from the back | |||||||

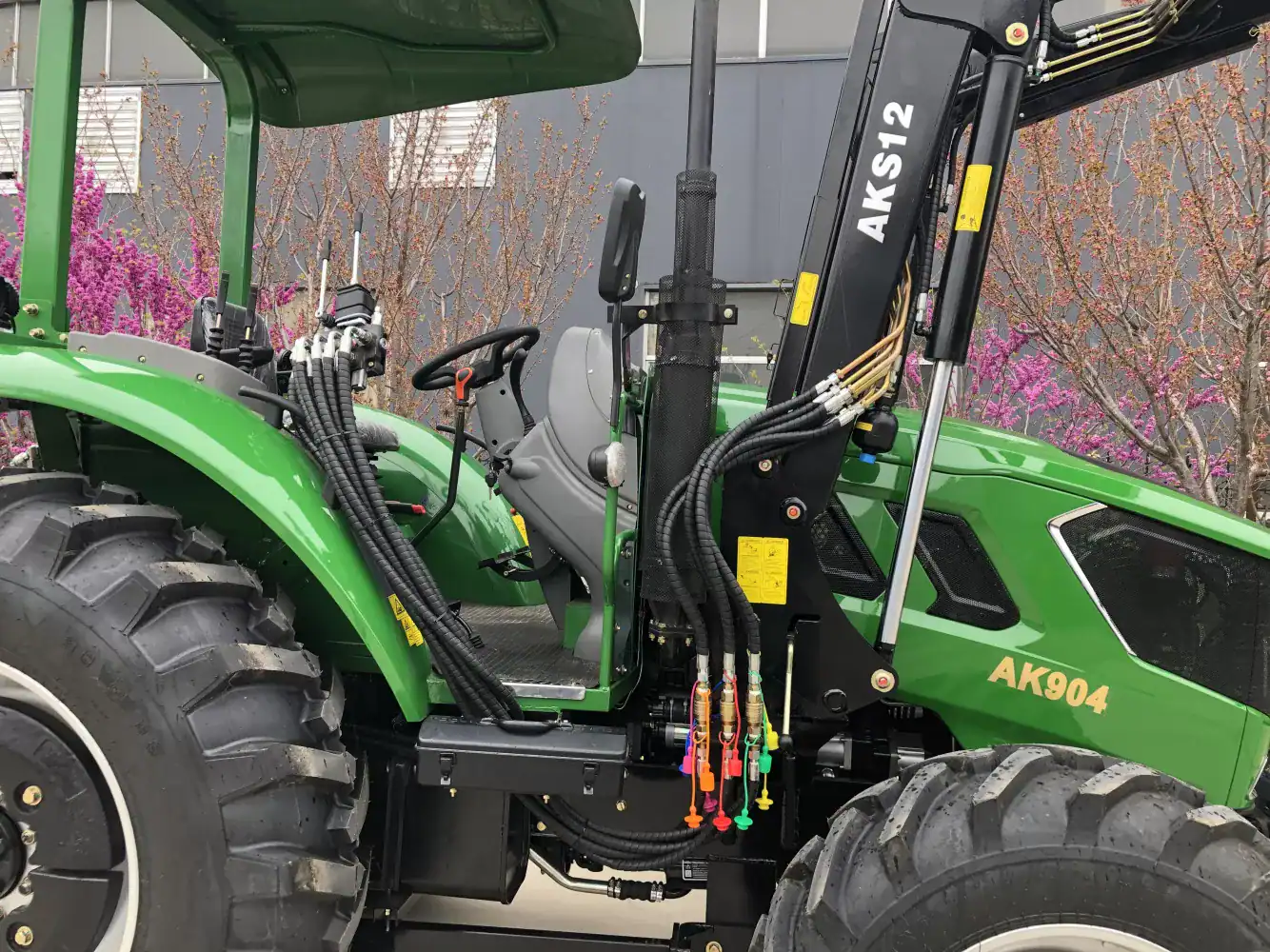

Hydraulic output | 2 sets of rear remotes,60L/min | |||||||

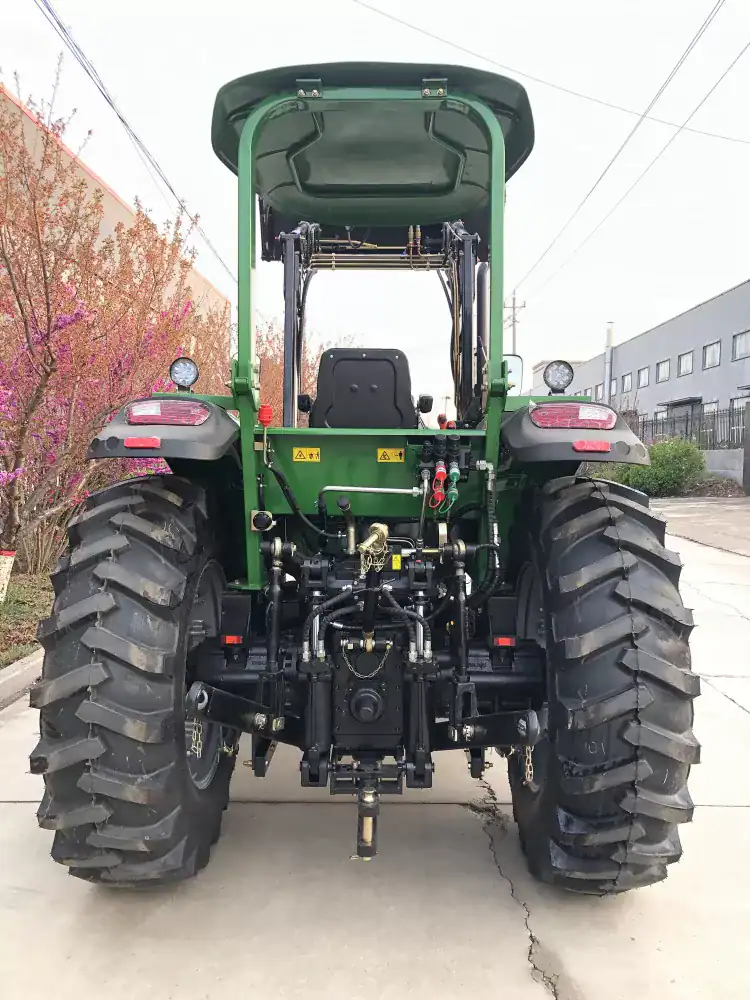

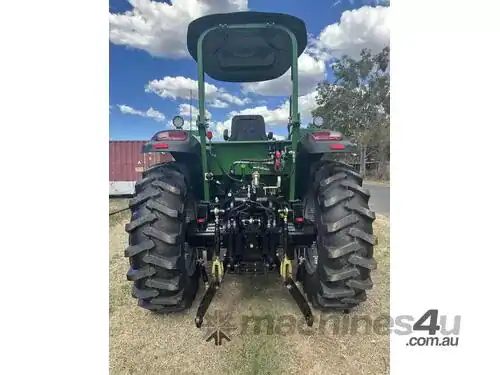

Suspension Type | three-point suspension rear auto hitch for lower link arms(Cat 3 ball pin) | |||||||
Lift capacity at 610mm behind hitch point | 2000kg | |||||||
PTO shaft | Type and Rev(r/min) | Non-independent type 540/1000 | ||||||
SplineSize | I35 Rectangle Spline With 6 teeth | |||||||
Spare Parts | Oil Filter, Fuel Filter, Fuses, Oil Seal, etc |

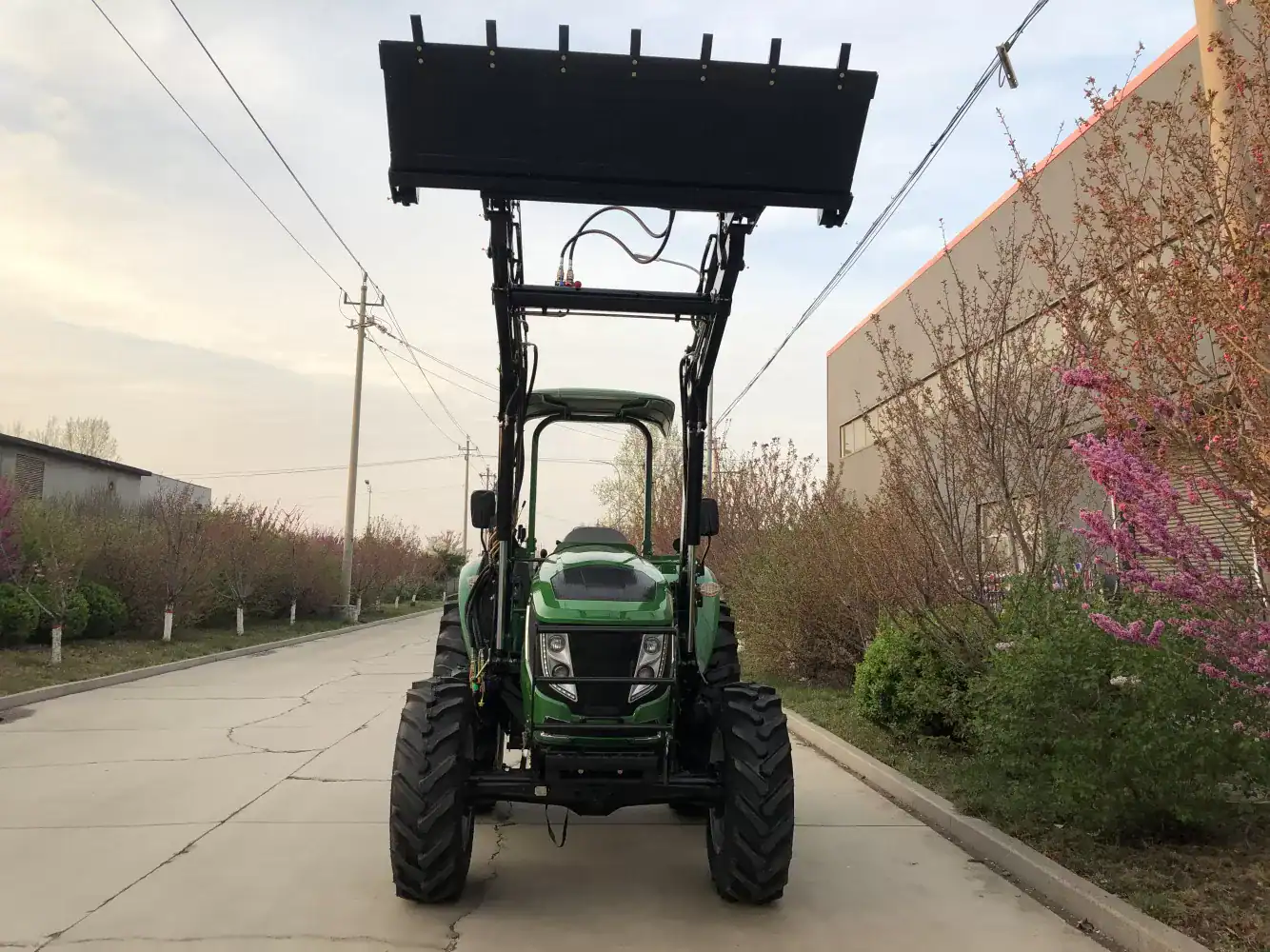

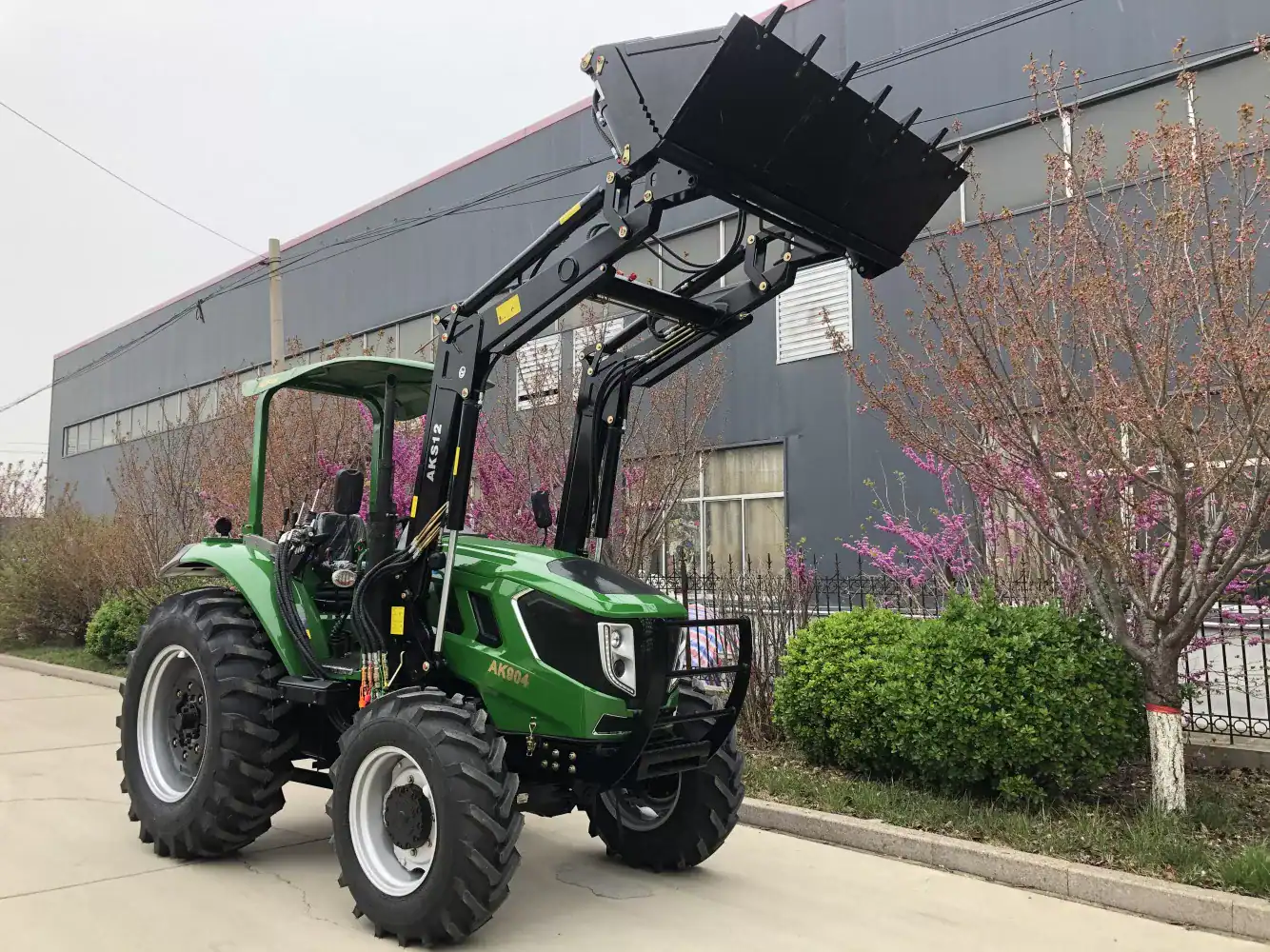

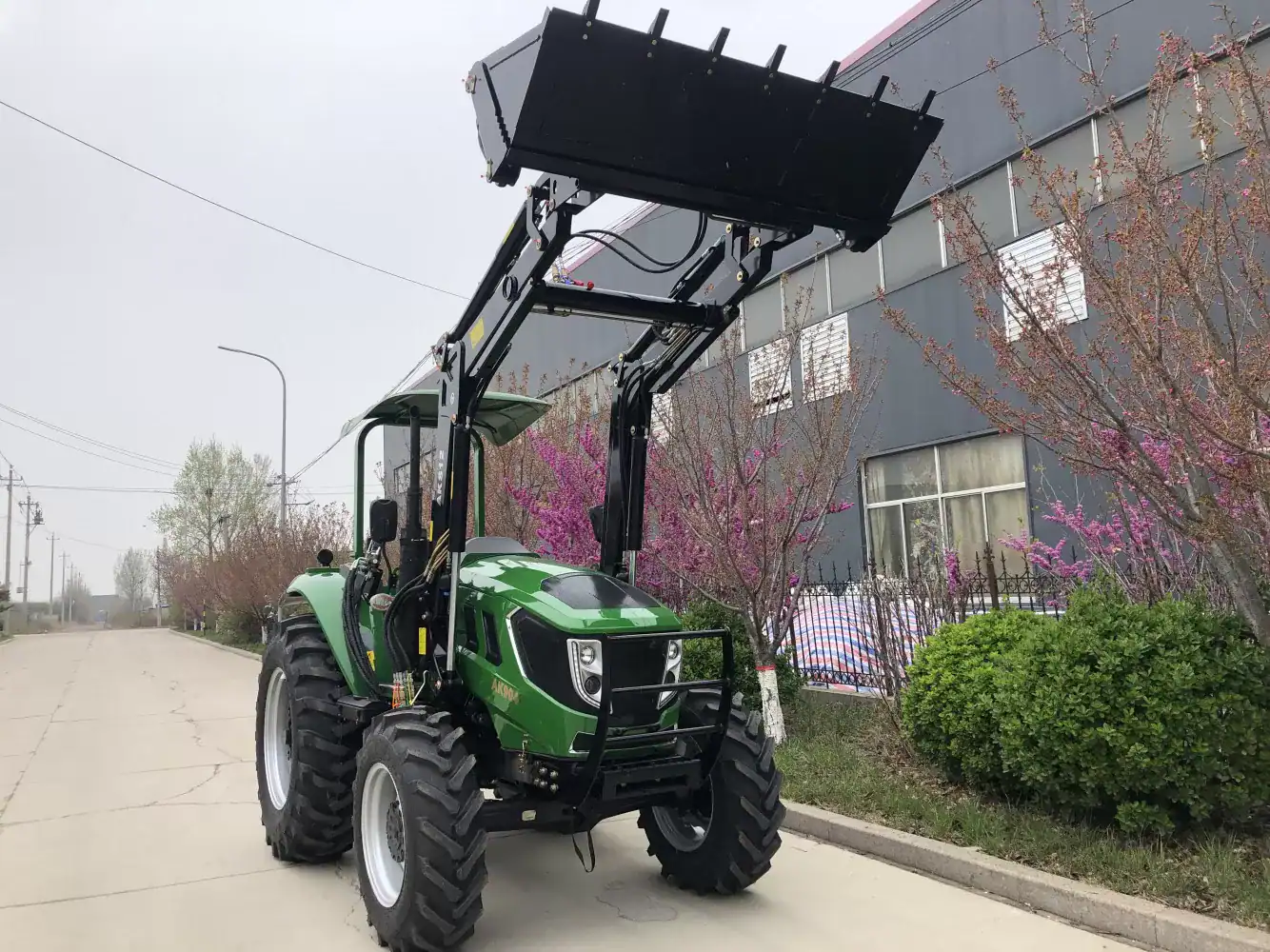

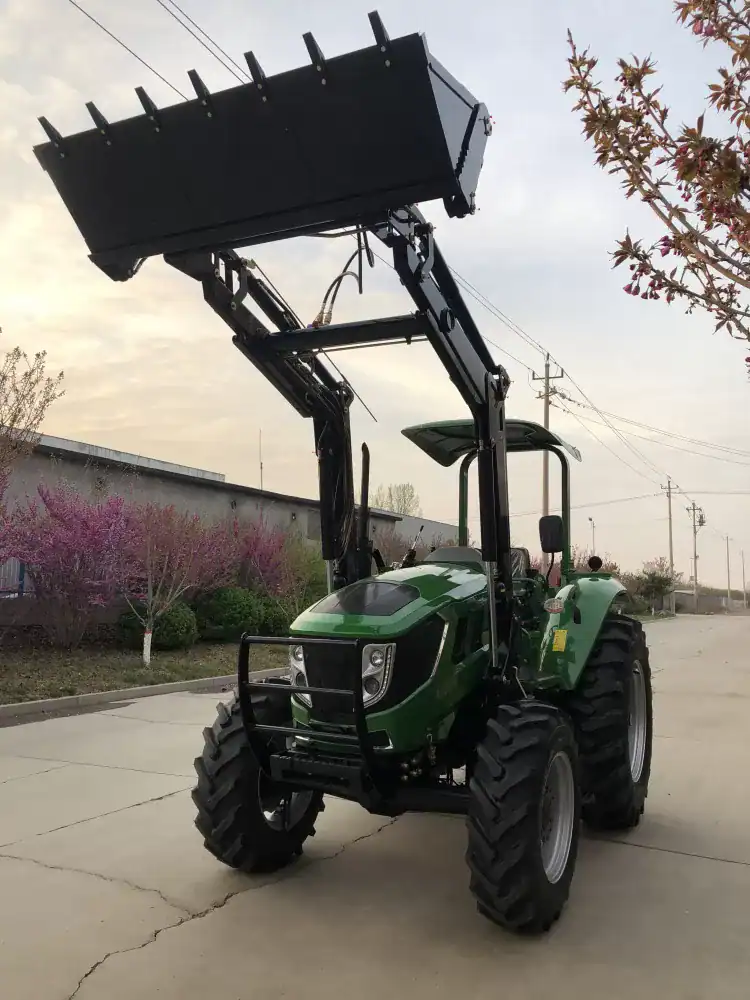

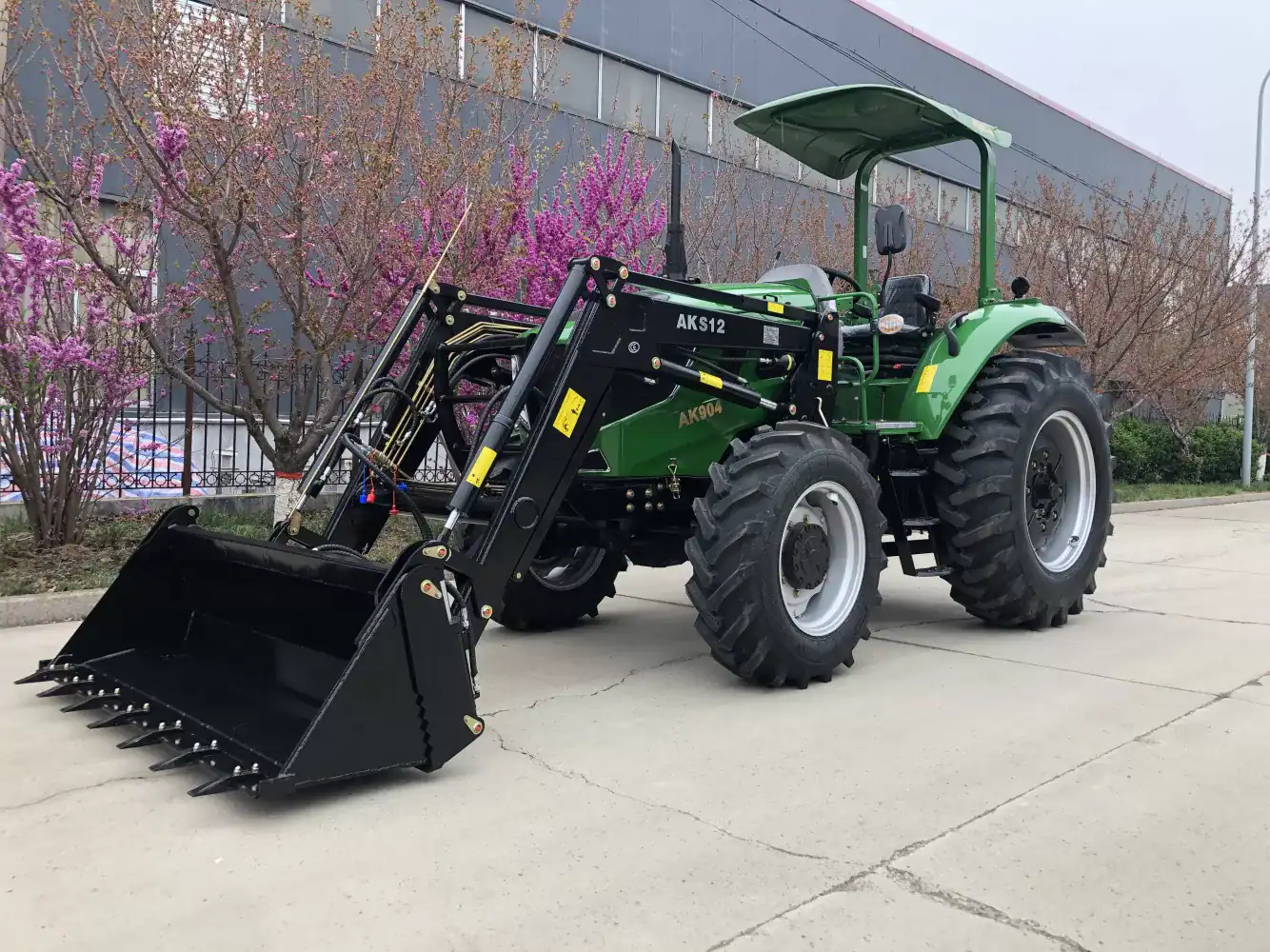

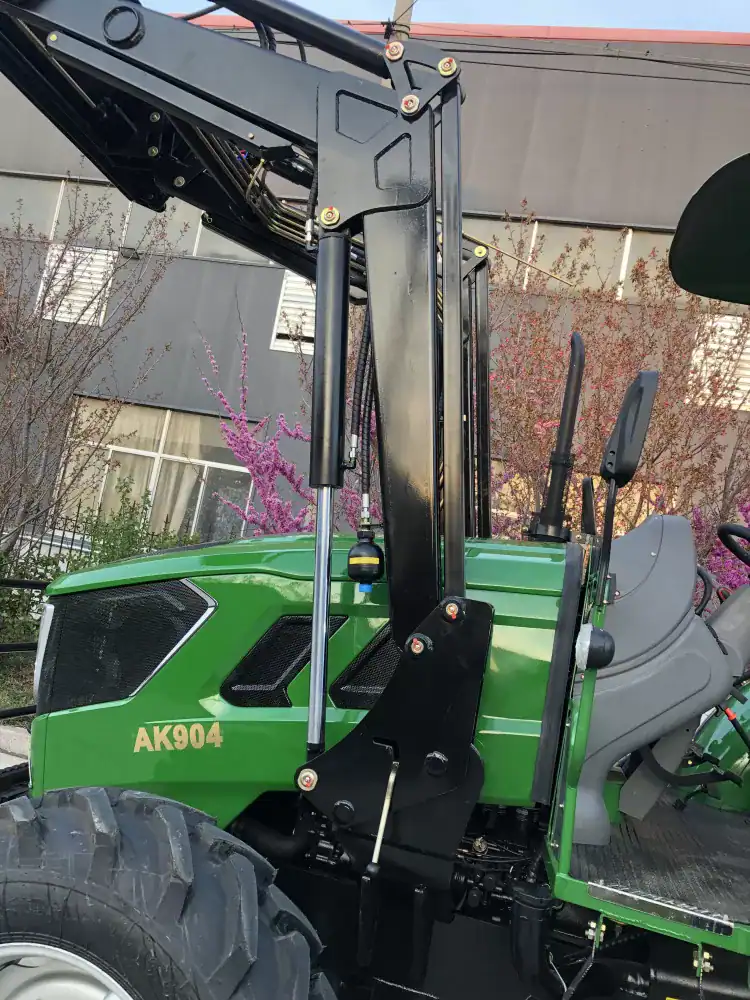

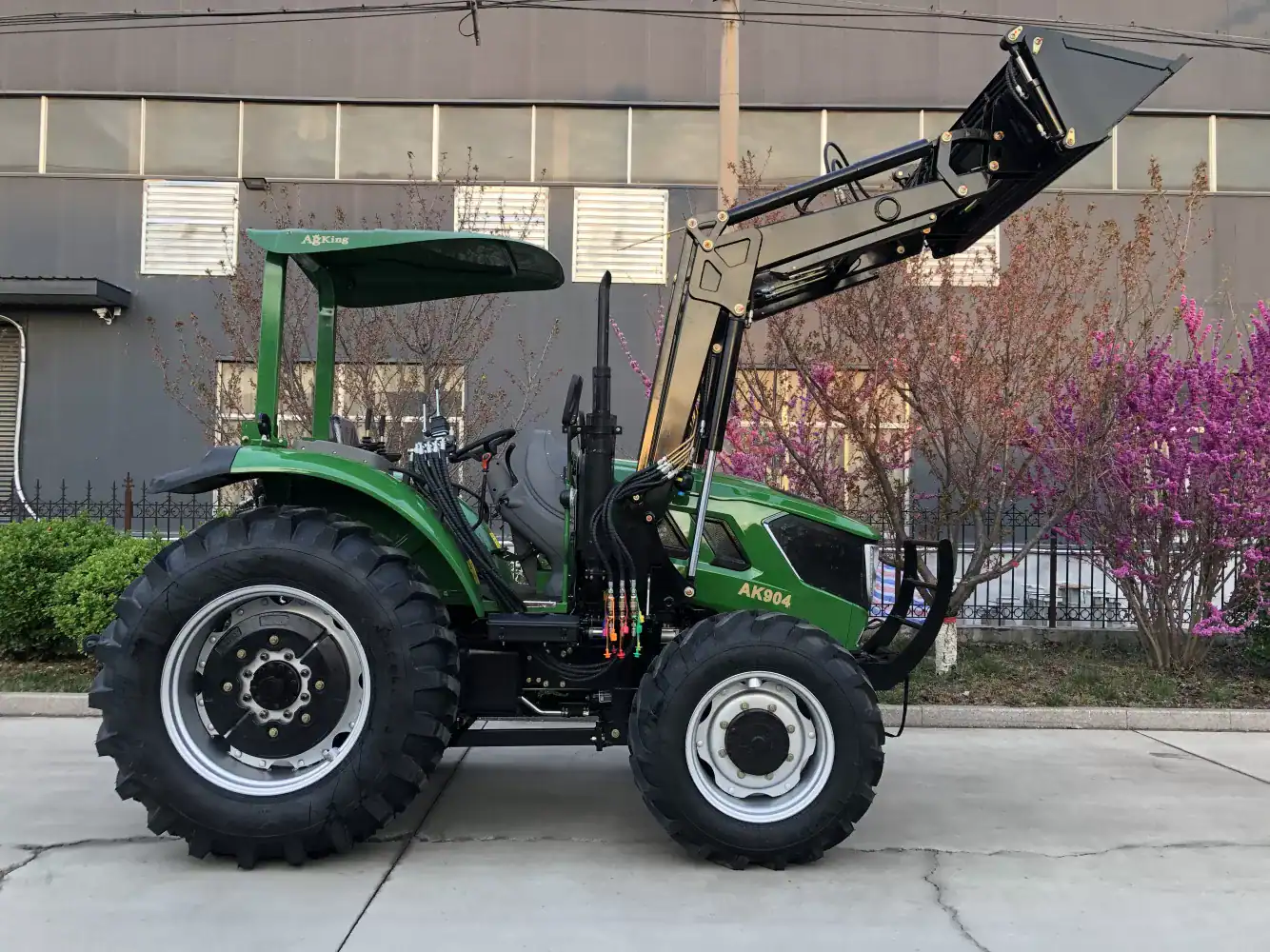

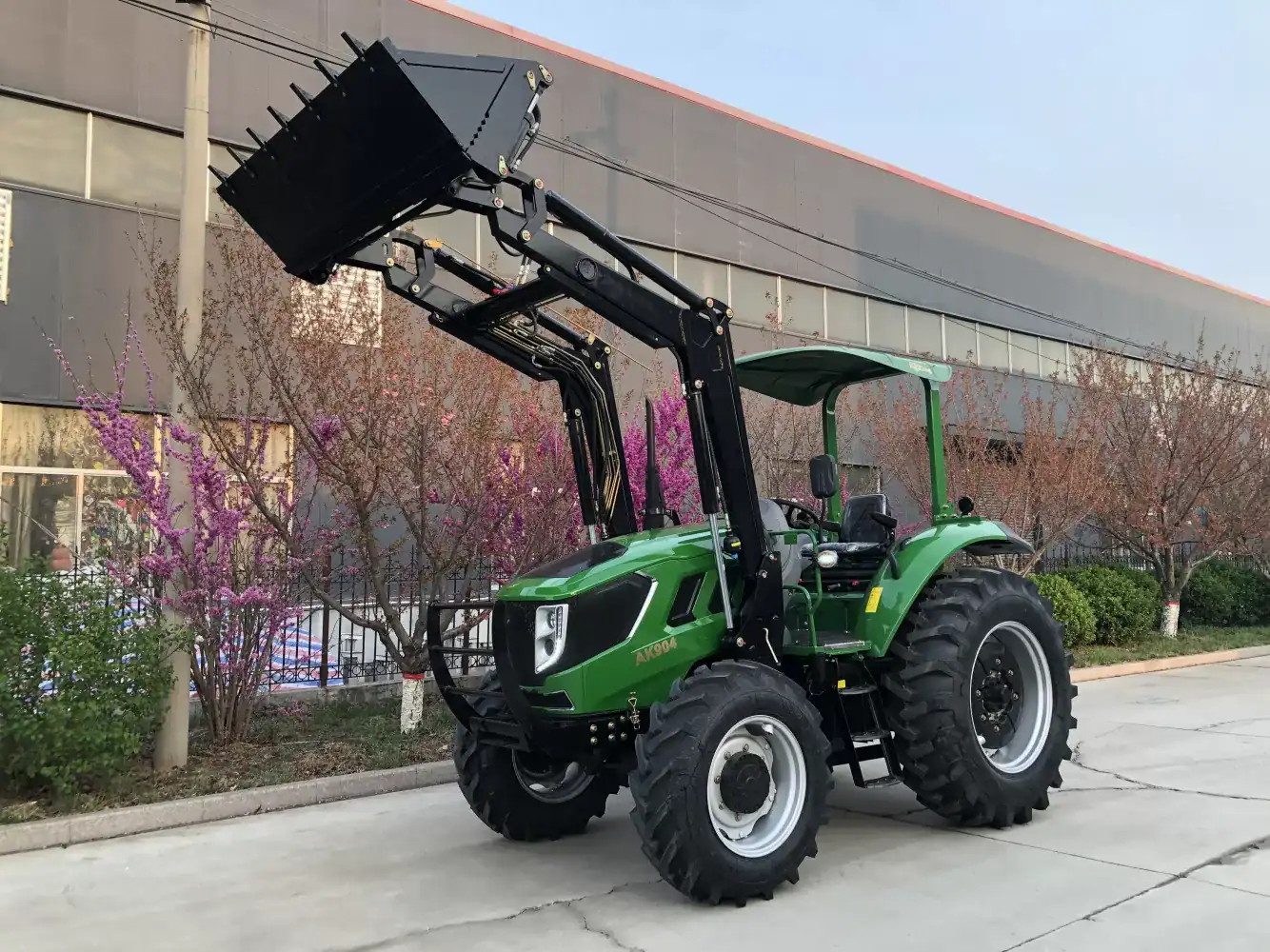

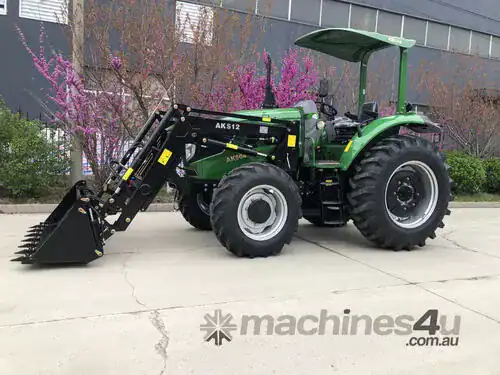

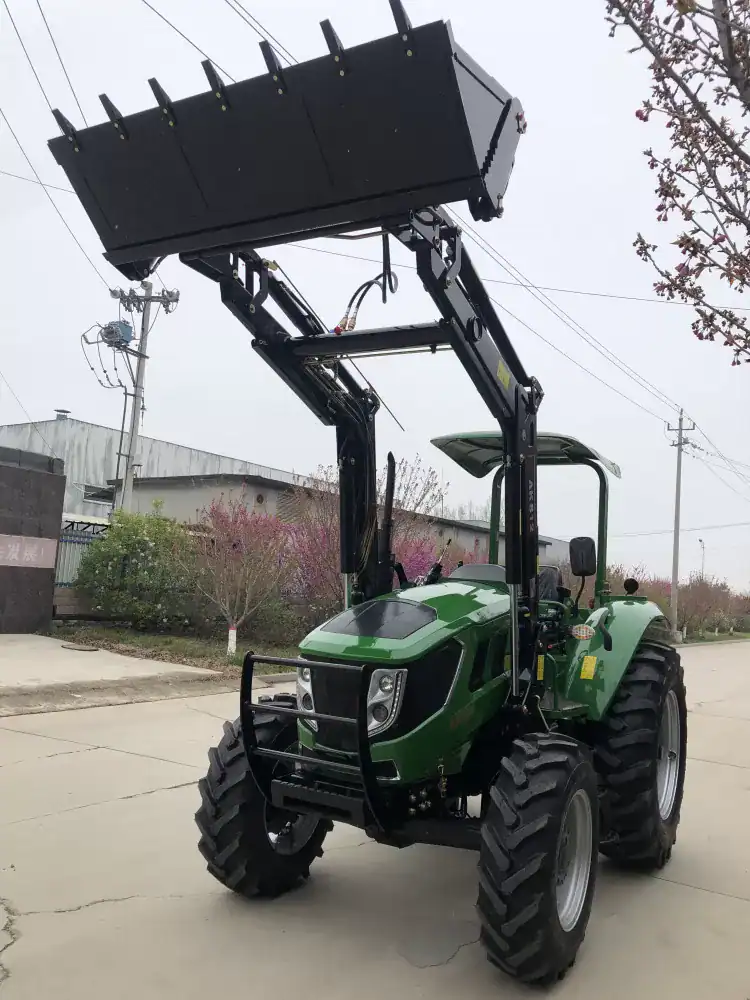

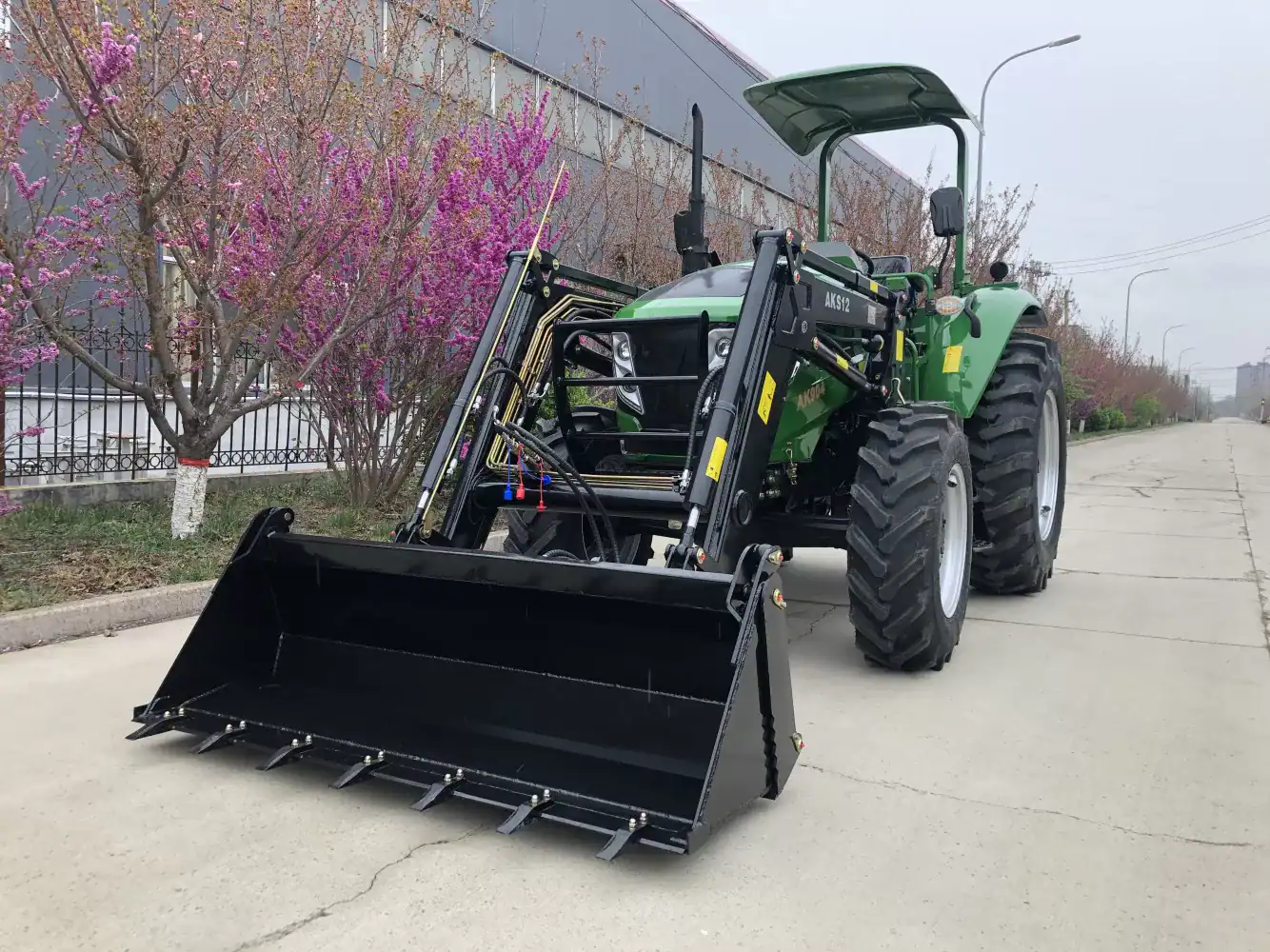

Front End Loader Model |
WS1500 | ||||||
Matching Tractor | AK 904 | ||||||
Specification | as shown in below drawings | Unit | |||||
Max lifting height at implement pivot pin | H | mm | 3710 | ||||
Dumping Height | A | mm | 2720 | ||||
Overloading Height | L | mm | 3490 | ||||
Dumping Distance | W | mm | 740 | ||||
Ground Clearance at Arm Pivot Pin | B | mm | 1780 | ||||
Max.Tip in Angle | X | degree | 54 | ||||
Tip out Angle | Z | degree | 58 | ||||
Crowd angle at lowered lift arm | V | degree | 145 | ||||
Digging Depth | S | mm | 180 | ||||
Lifting Force at implement pivot pin | Q1 | kg | 2308 | ||||
Q2 | kg | 1452 | |||||
Bucket Width | mm | 2000 | |||||
Bucket Capacity | m3 | 0.7 | |||||
Safe/Max Lifting weight | kg | 1200 / 1500 | |||||
Front end Attachments | Pallet forks, Hay forks, Bale grabber, Log grabber,Level Bar, Post Hole Digger, Rock Bucket, Clamp on Pallet Forks, Clamp on bale forks. |
