Description

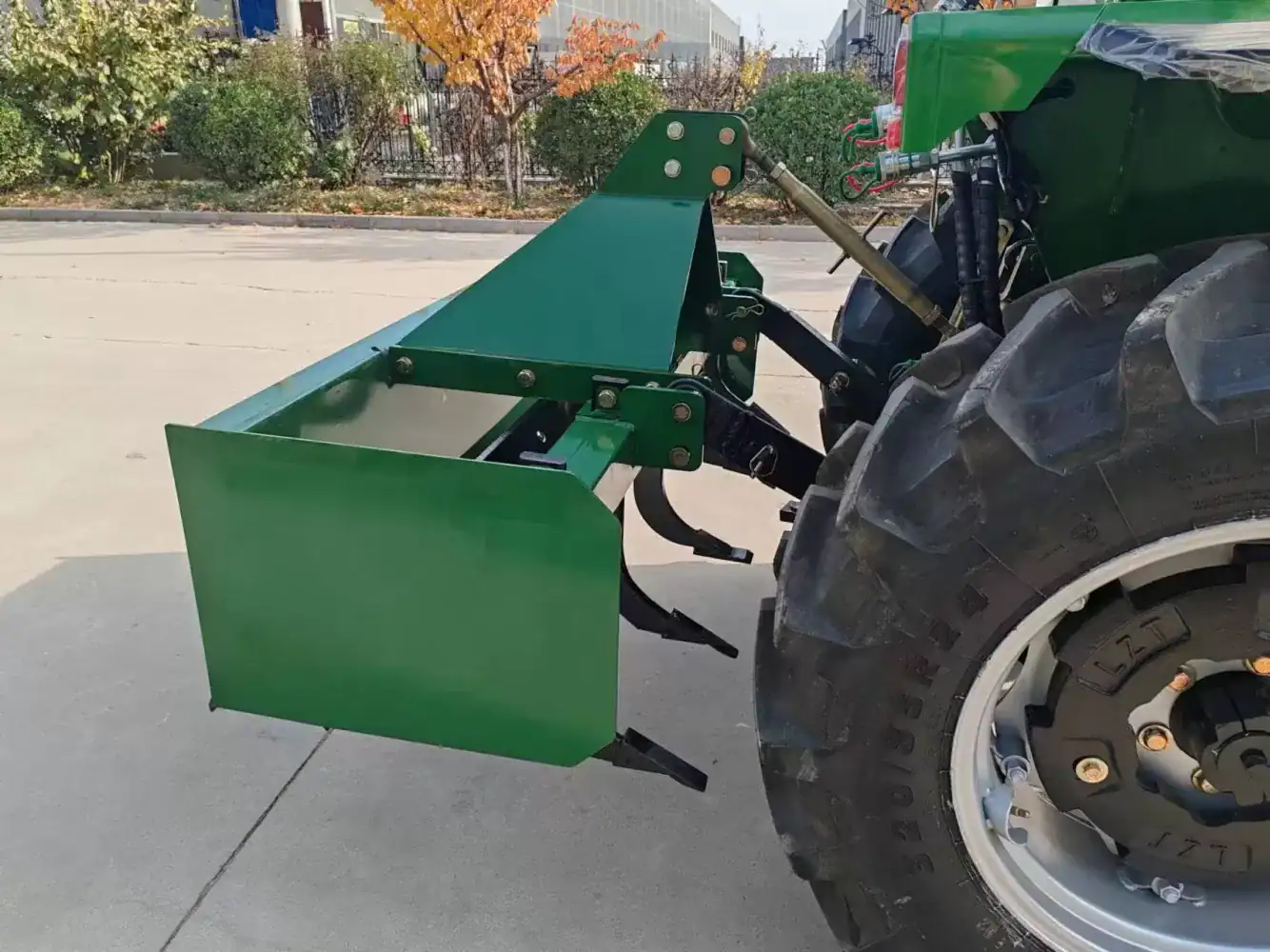

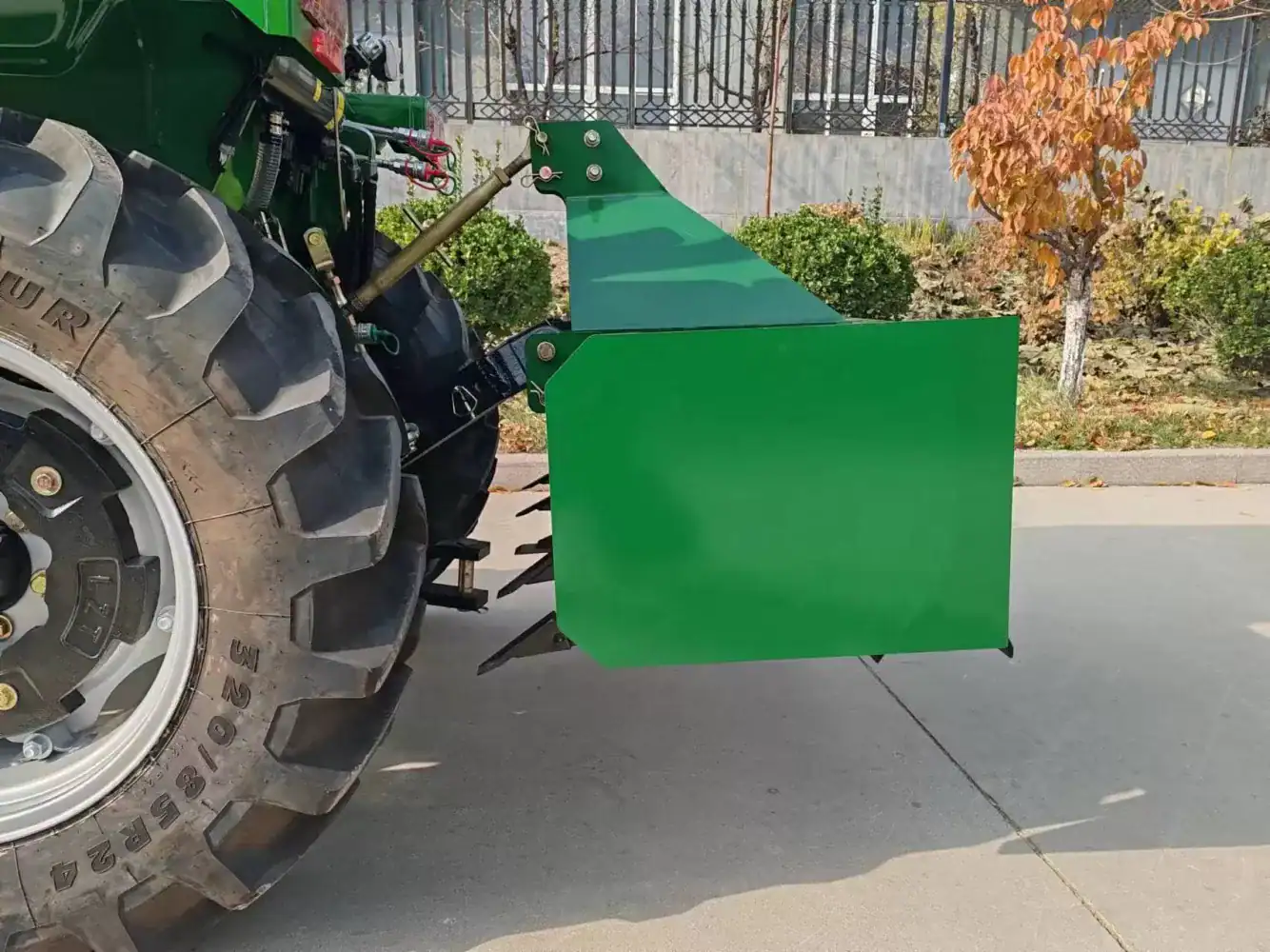

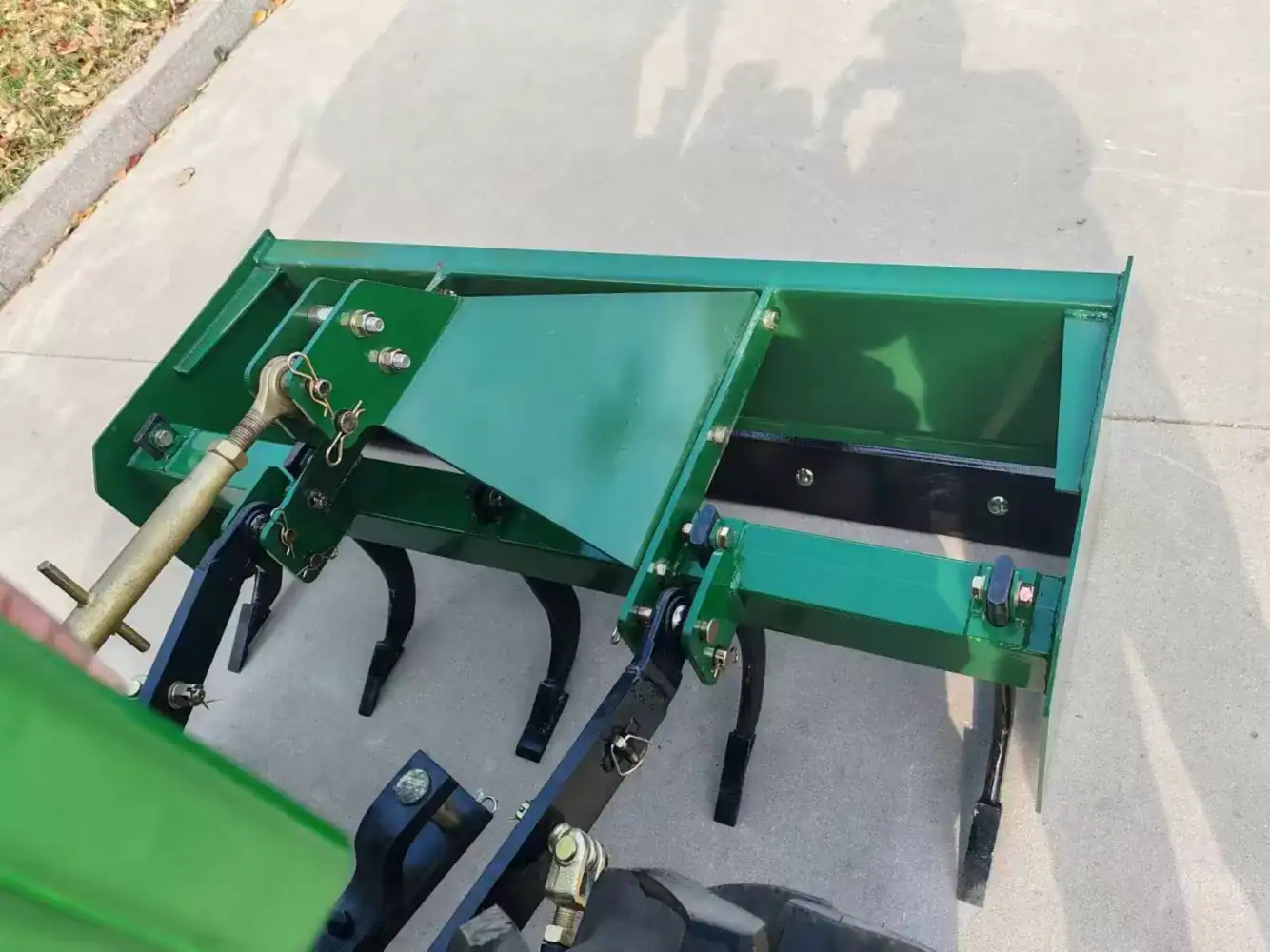

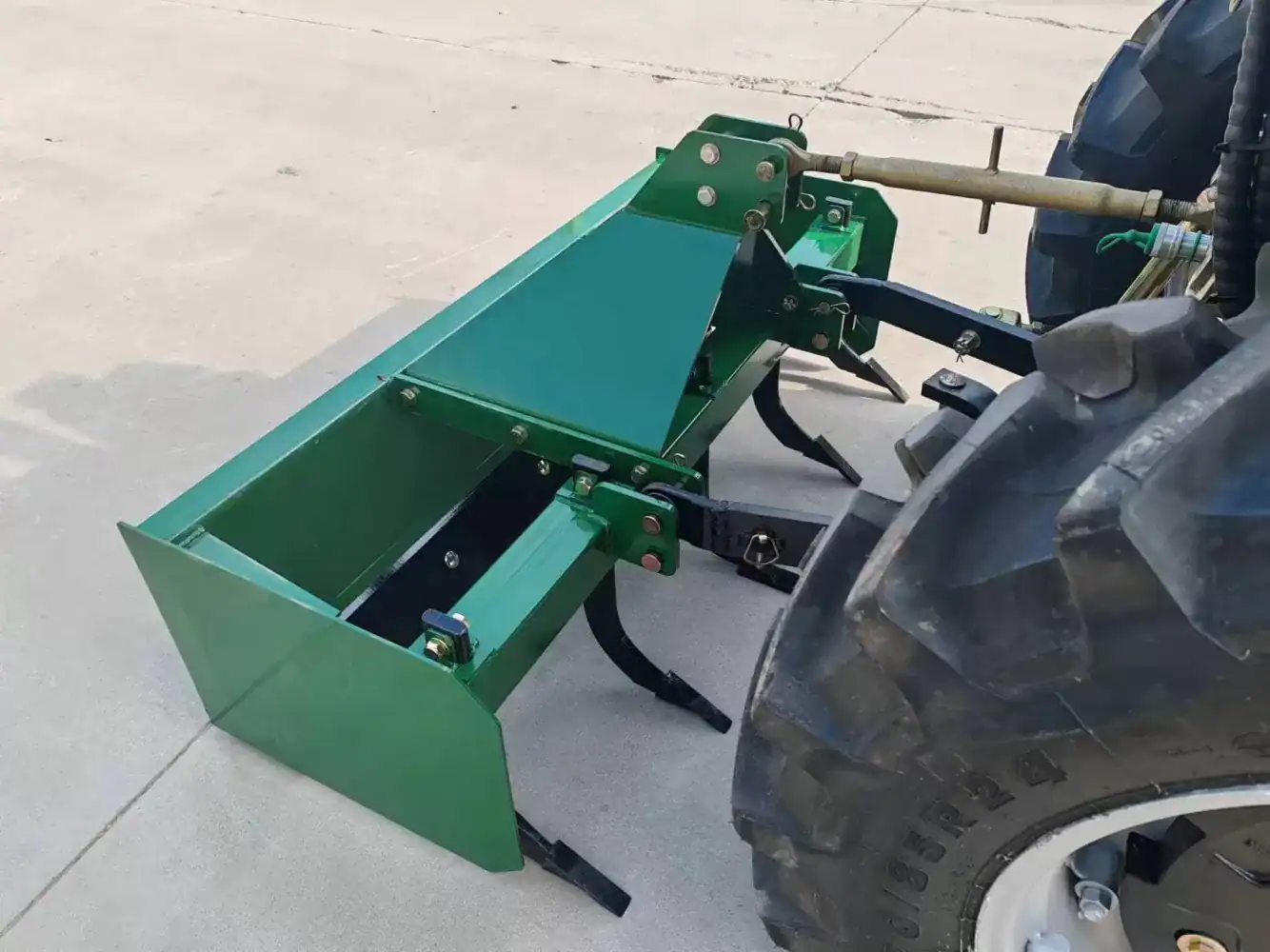

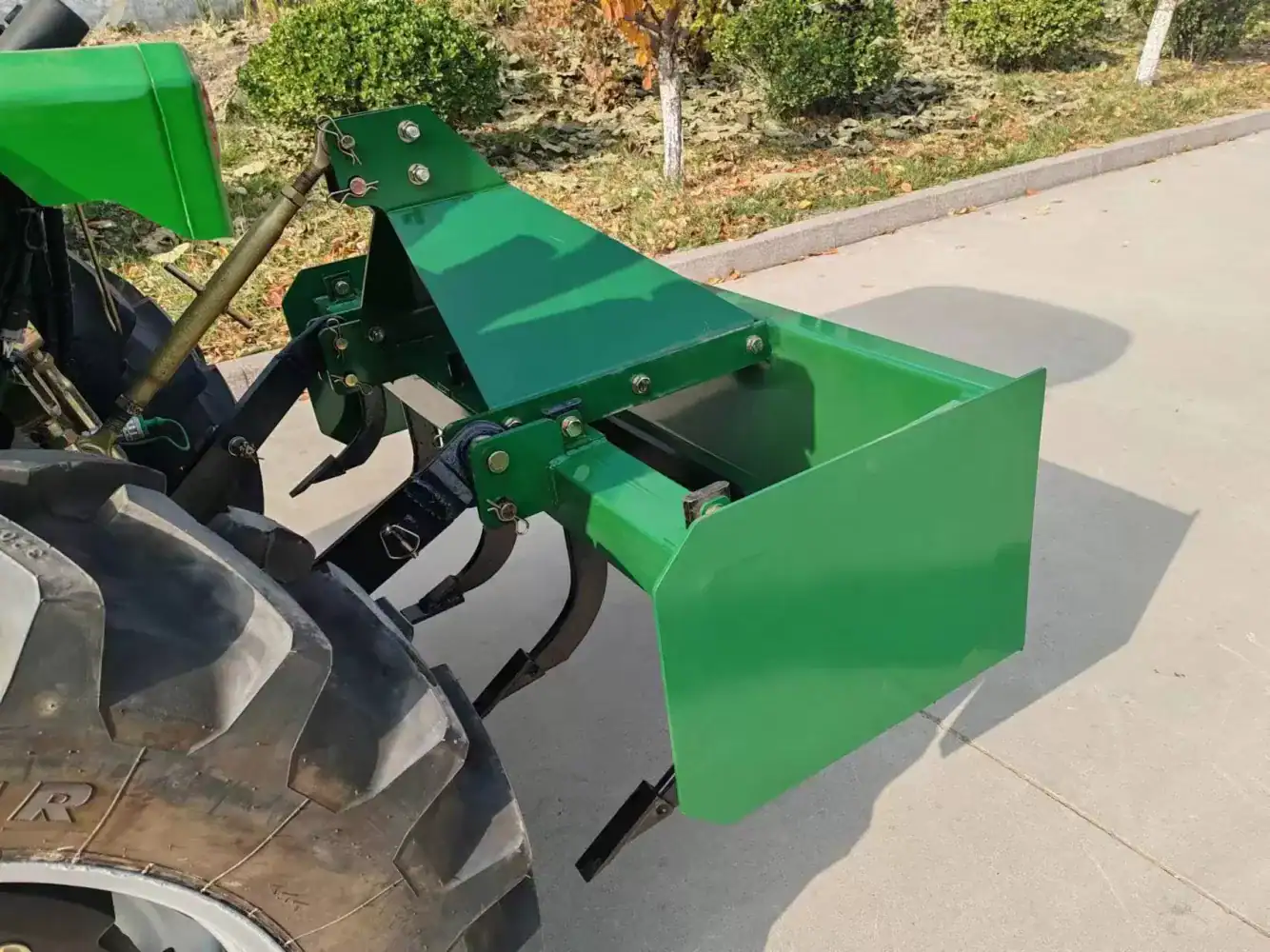

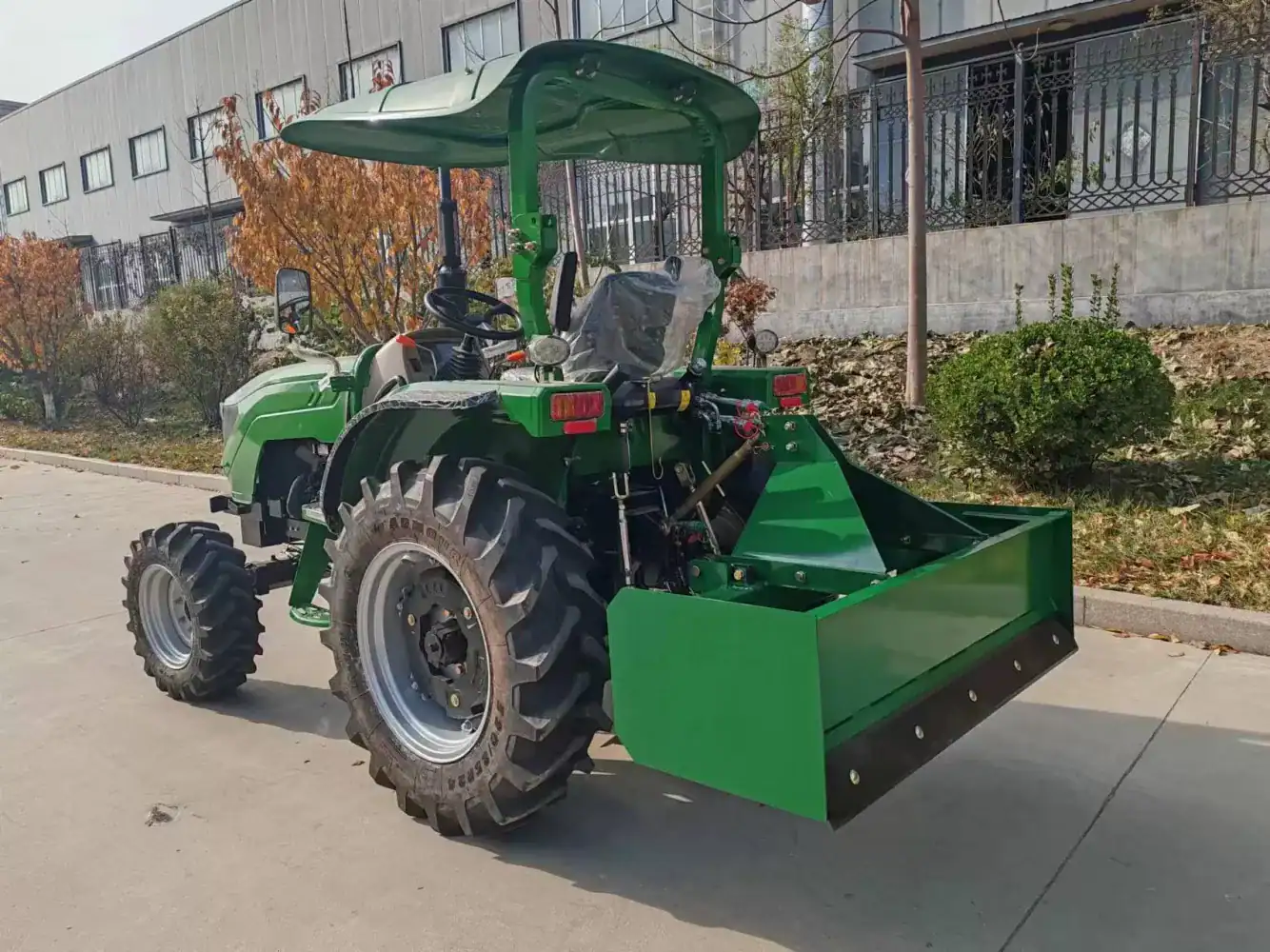

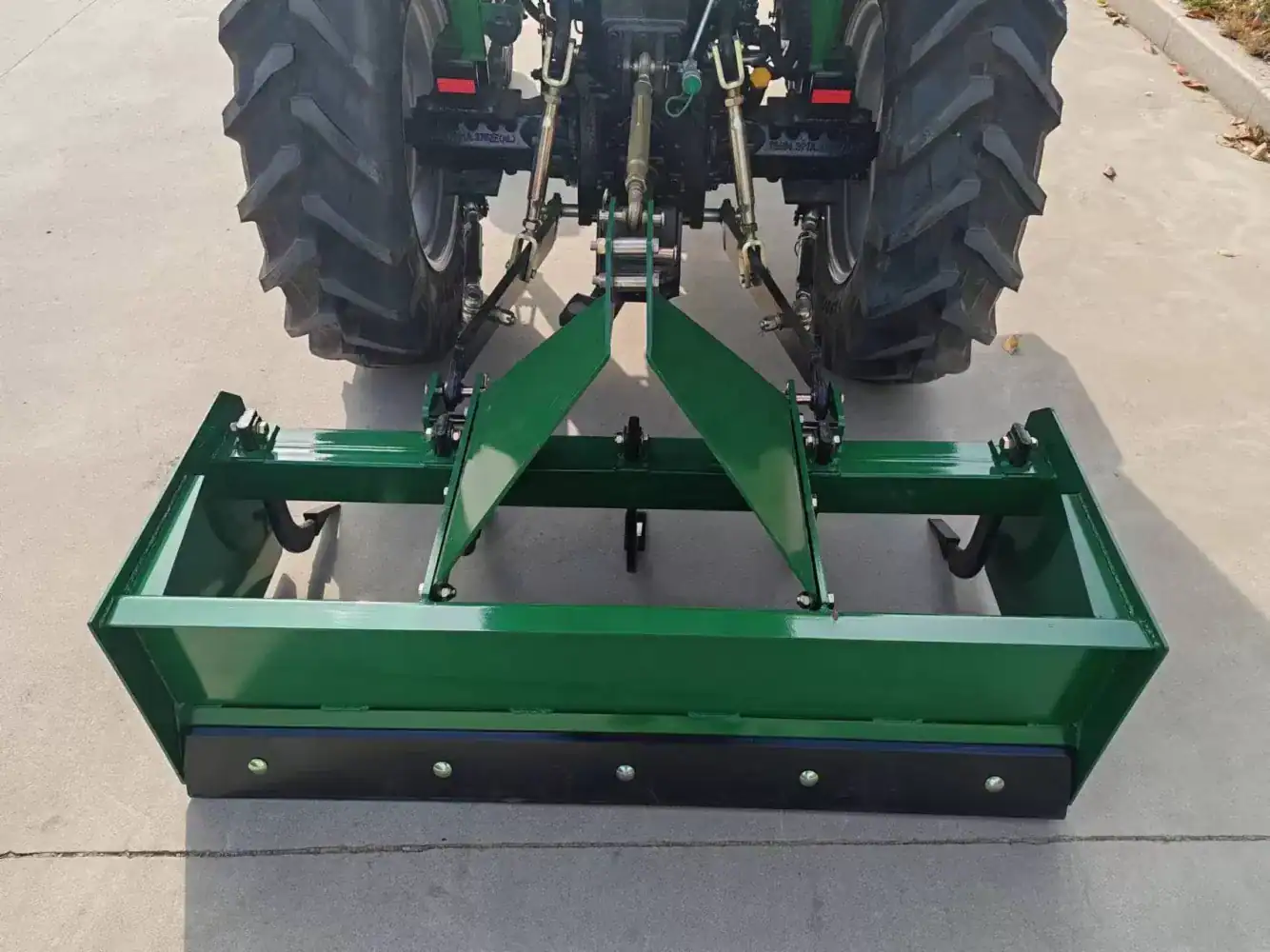

Box Scraper 6ft

Box Scraper 6ft (1800mm) with 6 adjustable Rippers Are ideal for landscaping, leveling, finish grading, back filling at building sites, feedlots, tracks, races, paddock leveling and more! Double (forward & reverse) cutting edges Rippers are reversible The height can be adjusted to loosen the soil at a desired depth or raised out of the way with 4 height settings & replaceable scarifiers. Box Scrapers to suit all Tractors.

AgKing has a range of Tractor Box Scrapers and other implements suited to most Tractors.

By AgKing

AgKing YouTube Channel

Box Scraper: The Ultimate Guide for Precision Land Leveling and Grading

If you need to level or grade your land, a box scraper is one of the most effective tools you can use. Whether you’re a landscaper, farmer, or contractor, a box scraper will help you create a smooth, even surface quickly and efficiently. In this guide, we’ll dive into everything you need to know about box scrapers—from their design and function to their benefits and applications.

What Is a Box Scraper?

A box scraper, also called a land leveler or grading box, is a heavy-duty attachment that levels and grades soil, gravel, and other materials. Typically, you use it with tractors, skid steers, or other heavy machinery. The scraper features a box-shaped frame with adjustable blades, which allows the operator to move material efficiently and create a uniform surface by smoothing uneven areas or removing debris.

In short, box scrapers are ideal for tasks where you need to create a flat or gently sloped surface, such as preparing construction sites, building roads, or setting up landscaping projects.

How Does a Box Scraper Work?

The box scraper works by using its adjustable cutting blades to dig into the ground, lifting and redistributing material to fill in low spots. Here are the key components of a box scraper:

• Blades: These are typically adjustable, allowing operators to control the depth of the scraping action. Depending on the material, the blades can scrape shallow or deeper layers.
• Box Frame: The box frame holds the blades in place, collecting and moving material evenly across the surface. It often features sidewalls that help contain the soil or gravel while moving it.
• Hitch or Mounting System: The box scraper attaches to the tractor, skid steer, or other machinery via a hitch. This makes it easy to attach and detach the scraper as needed.

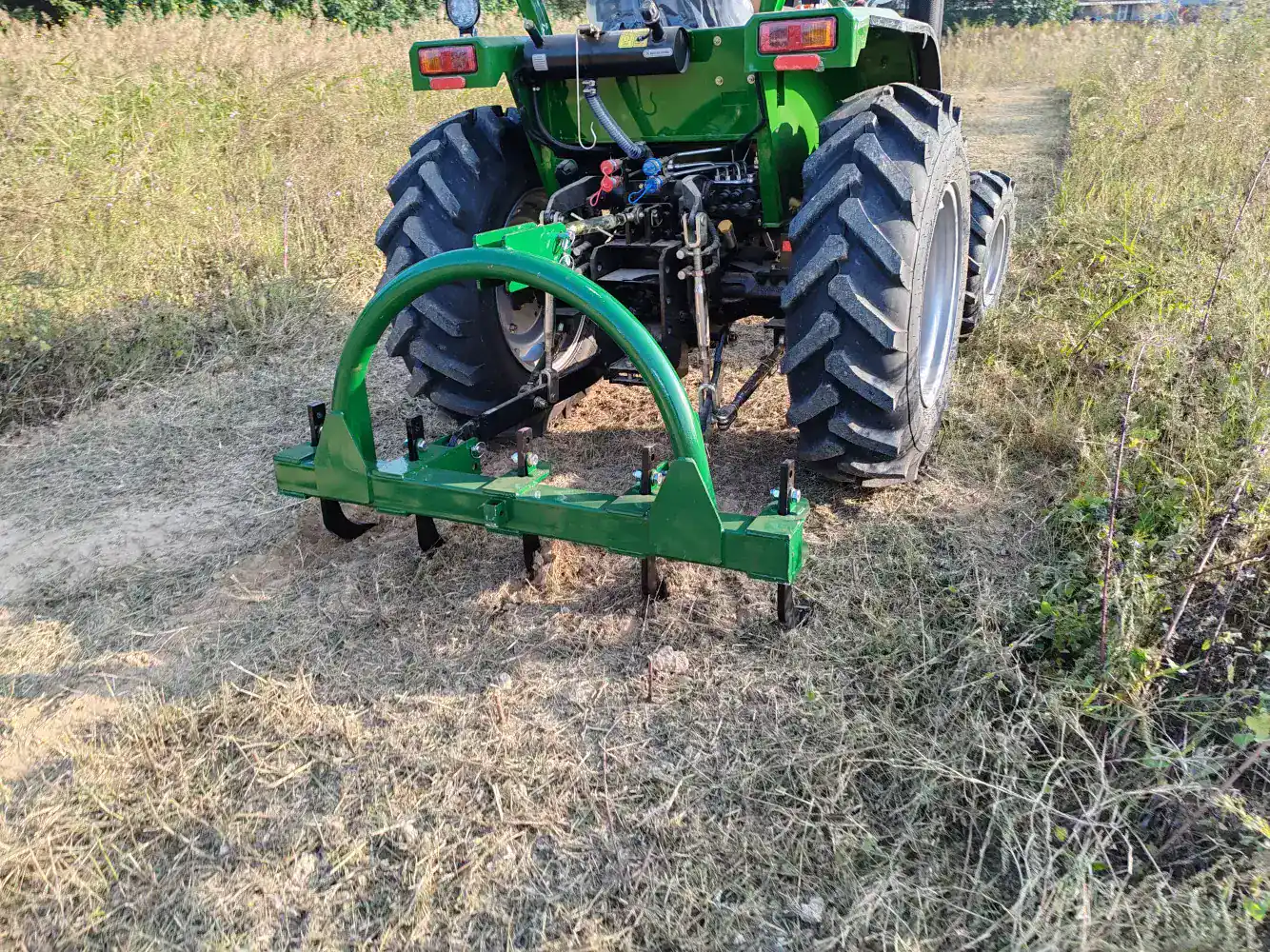

• Scarifiers: Some models include scarifiers, which break up hard soil before scraping it. This feature is especially useful in compacted or tough terrains.

By adjusting the depth and angle of the blades, operators can control the material movement, ensuring precise grading every time.

Types of Box Scrapers

Box scrapers come in several designs, each tailored for specific tasks. The most common types include:

1. Standard Box Scraper

The standard box scraper is the most commonly used type. It’s versatile and perfect for general grading and leveling. With a simple box frame and adjustable blades, this scraper works well with tractors and skid steers.

2. Heavy-Duty Box Scraper

Heavy-duty models are built to handle tougher tasks, such as working with compacted soil, gravel, or even light rock. These scrapers have reinforced steel frames and stronger blades to withstand the demands of harder surfaces.

3. Adjustable Box Scraper

An adjustable box scraper offers more flexibility. Its adjustable sidewalls and blade angles allow for precise control over material movement. These scrapers are ideal for those who require more accuracy in grading.

4. Laser-Guided Box Scraper

Laser-guided box scrapers use advanced technology to ensure exact precision. They employ laser systems to achieve the precise height or slope needed. These scrapers are typically used in specialized applications, such as road construction or sports field leveling.

Benefits of Using a Box Scraper

Using a box scraper offers numerous benefits that improve both the quality and efficiency of land leveling projects. Let’s explore the top advantages:

1. Precision and Efficiency

One of the biggest advantages of using a box scraper is its ability to create a smooth, even surface. The adjustable blades allow operators to make precise adjustments, resulting in uniform grading with minimal effort. This precision saves time and reduces the need for additional passes or adjustments.

2. Versatility

Box scrapers excel in a wide variety of applications. From landscaping and road construction to agricultural field preparation, box scrapers are built to handle a range of materials, including dirt, gravel, and even light snow.

3. Cost-Effective

Compared to other heavy machinery used for grading and leveling, box scrapers are generally more affordable. They require less maintenance, making them a cost-effective solution for land leveling.

4. Ease of Use

Despite their power, box scrapers are easy to operate. Their controls are intuitive, and most operators can quickly adapt to using them, even if they have little experience with heavy machinery.

5. Durability

Built from high-quality materials like steel, box scrapers are extremely durable. They are designed to withstand heavy-duty work, from scraping tough soil to moving large volumes of material, without compromising on performance.

How to Use a Box Scraper

Using a box scraper effectively requires a bit of practice, but once you get the hang of it, the process is simple. Here’s a step-by-step guide to using a box scraper:

Step 1: Attach the Box Scraper

Begin by attaching the box scraper to your tractor or skid steer. Use the hitch system to secure it firmly in place. Double-check that all safety pins and locks are properly fastened.

Step 2: Adjust the Blade Depth

Before starting, adjust the blade depth based on the level of material you need to move. For shallow grading, keep the blades at a higher setting. If you need to dig deeper, lower the blades to reach the desired depth.

Step 3: Drive Slowly

Start moving forward at a steady, slow pace. This allows the box scraper to collect and distribute the material evenly. Avoid driving too fast, as this can lead to uneven scraping and less precise grading.

Step 4: Monitor and Adjust

As you work, keep an eye on the surface level and make adjustments as needed. You may need to raise or lower the blades or change the angle to get the desired result.

Step 5: Final Touches

Once the surface is level, make a few final passes to smooth out any remaining bumps or ridges. Adjust the sidewalls of the scraper if necessary to keep the material contained.

Maintenance Tips for Box Scrapers

To maximize the lifespan and performance of your box scraper, regular maintenance is essential. Here are some key maintenance tips:

• Inspect the Blades: Regularly check the blades for wear or damage. If they become dull or chipped, sharpen or replace them to maintain optimal performance.
• Lubricate Moving Parts: Ensure that all moving components, such as the hitch and blades, are properly lubricated. This reduces wear and tear and helps maintain smooth operation.
• Check for Loose Bolts: After each use, inspect the box scraper for any loose bolts or fasteners. Tighten them as needed to prevent any parts from loosening during operation.
• Clean After Use: Always clean the scraper after each use. Dirt, mud, and debris can accumulate, reducing the scraper’s effectiveness. A quick wash will keep everything running smoothly.

Applications of Box Scrapers

Box scrapers are incredibly versatile and can be used in many industries. Here are some of the most common applications:

1. Landscaping

Box scrapers are perfect for landscaping tasks, such as leveling ground for new lawns, grading driveways, or preparing construction sites. They help create a smooth, even surface that’s ideal for planting or paving.

2. Agriculture

Farmers use box scrapers to prepare fields for planting. The scraper can level soil, spread compost, or grade land to improve drainage. It also helps break up compacted soil to create an ideal environment for crops.

3. Construction

Box scrapers are widely used in construction to level sites before laying foundations or paving roads. They also help grade materials like sand or gravel, ensuring an even base for further construction.

4. Road Construction

In road building, box scrapers are used to level and smooth the surface of the roadbed. They ensure that the road is graded evenly, providing proper drainage and a smooth driving surface.

5. Snow Removal

In winter, some box scrapers can be equipped with attachments to help clear snow from large areas such as parking lots or private roads. This makes them a useful tool for snow removal in colder climates.

Conclusion

A box scraper is an invaluable tool for anyone involved in land leveling, grading, or material movement. Its combination of precision, versatility, and cost-effectiveness makes it a must-have for contractors, landscapers, farmers, and DIY enthusiasts. Whether you are preparing land for construction, working on a farm, or completing a landscaping project, a box scraper will help you achieve a smooth, even surface in less time and with minimal effort.

Moreover, by understanding how a box scraper works, learning how to use it properly, and maintaining it well, you can maximize its performance and efficiency. As a result, investing in a box scraper will streamline your projects, save you time, and deliver a professional finish to your grading and leveling tasks. Therefore, if you want to improve your land grading results, consider adding a box scraper to your equipment today!
