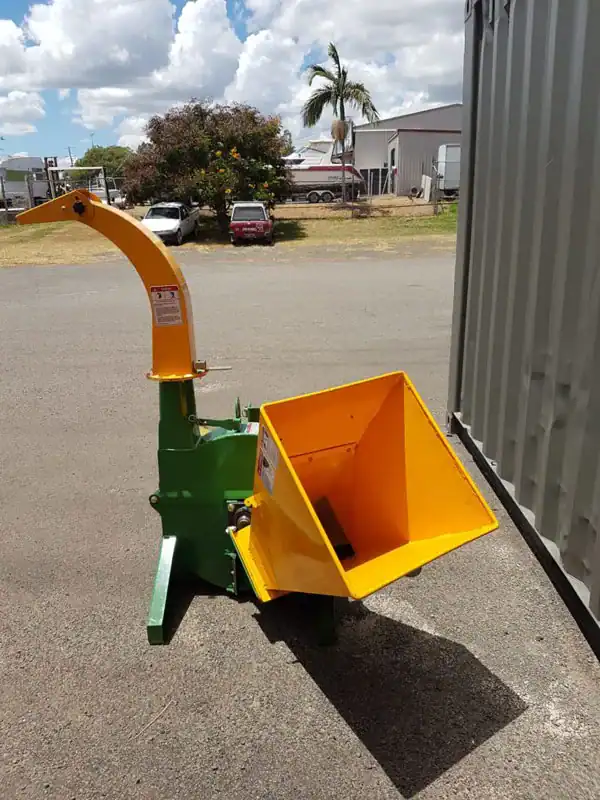

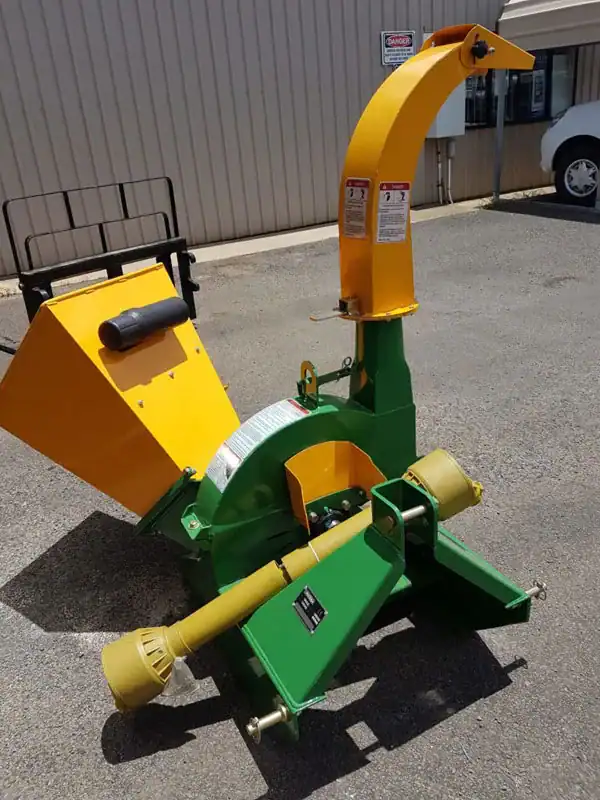

PTO Wood Chipper 6″
PTO Wood Chipper 6″ from AgKing is a simple, low maintenance machine designed to be easy to access and service. The rotor bearings and parts are machined to precision CNC standards.
The momentum of the precision balanced rotary wheel is designed to help reduce tractor PTO Wood horse power thereby reducing fuel consumption.
It has specially designed paddles fitted to the rotor creating a vacuum effect, as a result it helps to clear small chips and lighter materials. Access to the chipper PTO Wood housing for service is easy and only requires removing one or two bolts.
Features
- PTO driven with slip clutch
- balanced heavy duty 80kg rotor wheel
- 6 x 150mm reversible blades
| AKS series | |||||
| 1.Low maintenance machine designed to be easy to access and service | |||||
| 2.Discharge hood can rotate 360 degrees,adjustable cute | |||||
| 3.Hydraulic feeding system rollers | |||||
| 4.Low shock and noise | |||||
| Model | AKS42S | AKS42R | AKS62S | AKS62R | AKS92R |
| Max. dia. of feeding | 100mm(4”) | 100mm(4”) | 150mm(6”) | 150mm(6”) | 230mm(9”) |
| Power | Tractor (35~60hp) | Tractor (35~60hp) | Tractor (60~80hp) | Tractor (60~80hp) | Tractor (75~100hp) |
| Flywheel diameter | 630mm | 630mm | 740mm | 740mm | 940mm |
| Flywheel weight | 50kg | 50kg | 94kg | 94kg | 171kg |
| No.of blade | 4 | 4 | 4 | 4 | 4 |
| Dimension of feed hopper | 500×500mm | 500×500mm | 580×580mm | 580×580mm | 620×620mm |
| Feeding system | Self Feeding | Hydraulic Feeding, Adjustable Speed stop-reverse-forward function | Self feeding | Hydraulic Feeding, Adjustable Speed stop-reverse-forward function | |
| Sawdust measurement | thickness ≤6mm | ||||
| Feeding outlet rotation angle | 360° | ||||
| Dimension (L×W×H) | 1470×1260×1650mm | 1750×1450×2020mm | 2100×1680×2100mm | 2100×1680×2100mm | 2280×1980×2520mm |
| Weight | 250kg | 340kg | 360kg | 510kg | 720kg |
| Packing size (L×W×H) | 1140×910×1260mm | 1130×810×1800mm | 1220×910×2100mm | 1220×910×2100mm | 1300×1150×215-mm |
