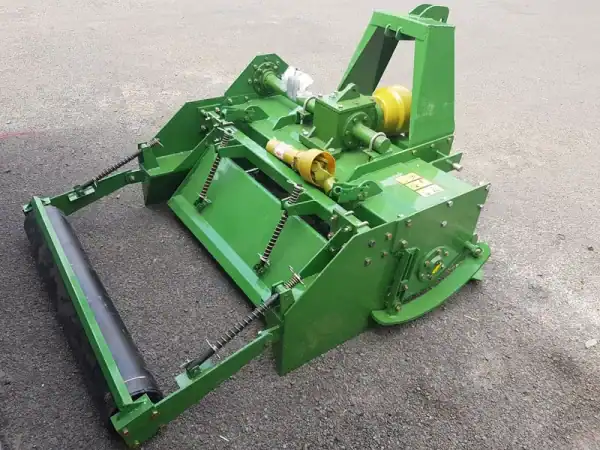

Rotary Hoe and Bed Former 1500mm

1500mm 5ft Rotary hoe and combined bed former for forming up garden beds. The bed former includes a rear roller for better compaction and is adjustable. ROTARY HOE CAN BE SEPARATED FROM BED FORMER. Included is a PTO drive shaft and slip clutch. It has a 3 point linkage system with Cat 1 pins. The 1500mm model has 9 rotors with 4 blades per rotor and 2 Leading edge Rippers for good purchase in the soil. The base of the formed bed will be 1500 mm while the top will be 1200 mm.

warranty-badge
AgKing’s Genuine 12 months Warranty covers parts that are faulty, other than caused by normal wear and tear. Items deemed faulty must be returned to AgKing or a suitable contractor designated by AgKing for the purpose. As AgKing supplies to the smaller acreage and hobby farmers, the warranty does not apply to industrial, commercial, or contractor usage of the equipment. Specific details of the warranty are provided with each tractor and implement.
Available Options
Quantity
Quantity

Description

Rotary Hoe With Bed Former 1500mm

Rotary hoe and combined bed former 1500mm for forming up garden beds. The bed former includes a rear roller for better compaction and is adjustable. Included is a PTO drive shaft and slip clutch. It has a 3 point linkage system with Cat 1 pins. The 1500mm model has 9 rotors with 4 blades per rotor and 2 Leading edge Rippers for good purchase in the soil.

AgKing has a range of bed forming equipment suitable for most Tractors.

RHBF

Key Features
1. Heavy duty rotary hoe and combined bed former for forming up garden beds
2. Bed former includes a rear roller for better compaction and is adjustable
3.Rotary hoe can be separated from bed formers for choice
4. Including PTO drive shaft and slip clutch,3 point linkage with Cat.1 pins


Model ZGLN-120 ZGLN-150 ZGLN-180 ZGLN-200
Matched power (hp) 20-30hp 35-40hp 45-55hp 55-65hp
Working width (cm). 120 150 180 200
working depth
(cm)
12cm 12cm 12cm 12cm
No.of knives 30 36 42 48
Type of knife L-860 L-860 L-860 L-860
No.of ridge 1 1 2 2
Width of ridge
(m)
≤1.0meter ≤1.3meter ≤1.6meter ≤1.8meter
Height of ridge
(cm)
0~25cm 0~25cm 0~25cm 0~25cm
Total weight
(kg)
380 460 570 600
Overall Dimension
(mm)
(L) 1400 1700 2000 2200
(W) 800 800 800 800
(H) 700 700 700 700
PTO axle rotary speed
(r/min)
540
Linkage Standard three-point mounted
For use with these Tractors as well as others – (click on item for details)
40hp tractor DQ404 55hp tractor DQ554 70hp tractor AK704 80hp tractor DQ804
