PTO Cement Mixer or Tractor Concrete Mixer

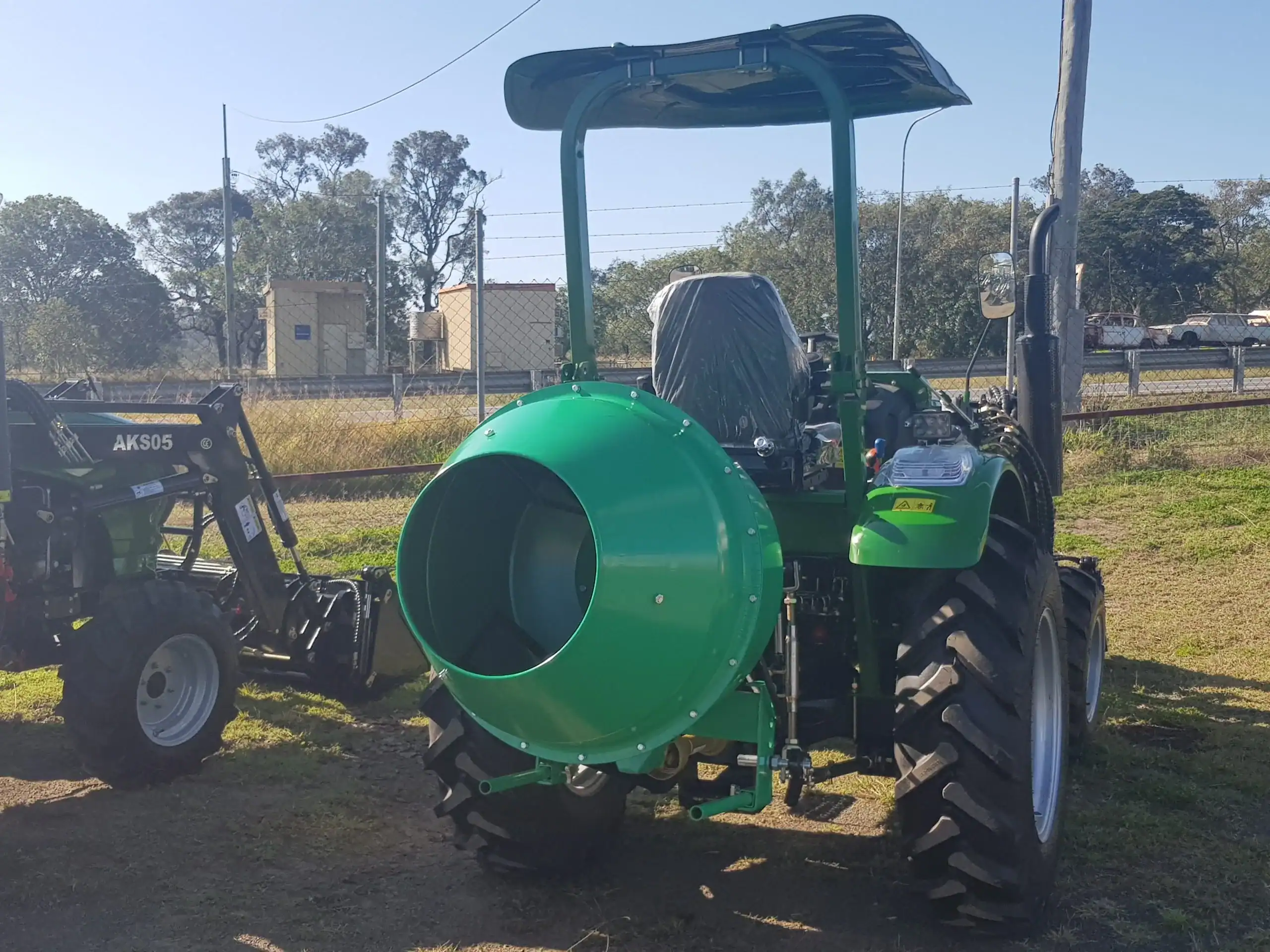

PTO Cement Mixer ( 5 cubic feet ) fitted with tractor 3 point mount and PTO drive shaft and cat hitch pins. Includes top link arm and hydraulic tilt ram.
Tractor Concrete Mixer
| Tractor Concrete Mixer Key Features | |

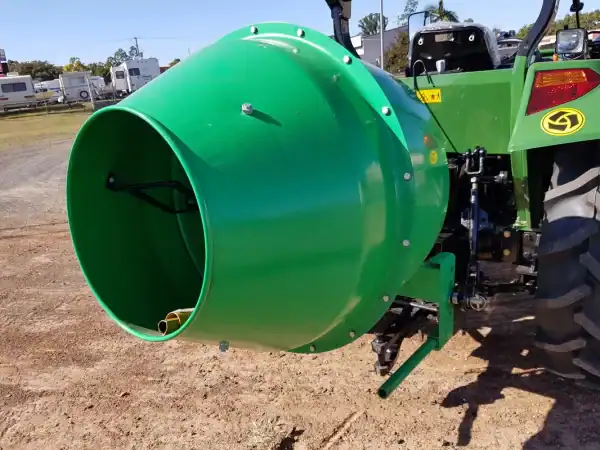

| 1.Two piece steel drum construction with internal paddles for uniform mixing and clean dumping. | |
| 2. Compact,trouble free,long life design with few moving parts | |
| 3. Ideal for mixing feed,fertilizer,inoculating seed, potting soil and other mixing jobs. | |
| 4. Hydraulic top link cylinder provides positive dump control | |
| 5. Parking stand for easy storage | |
| 6. Number 40-roller chain drives mixing drum | |

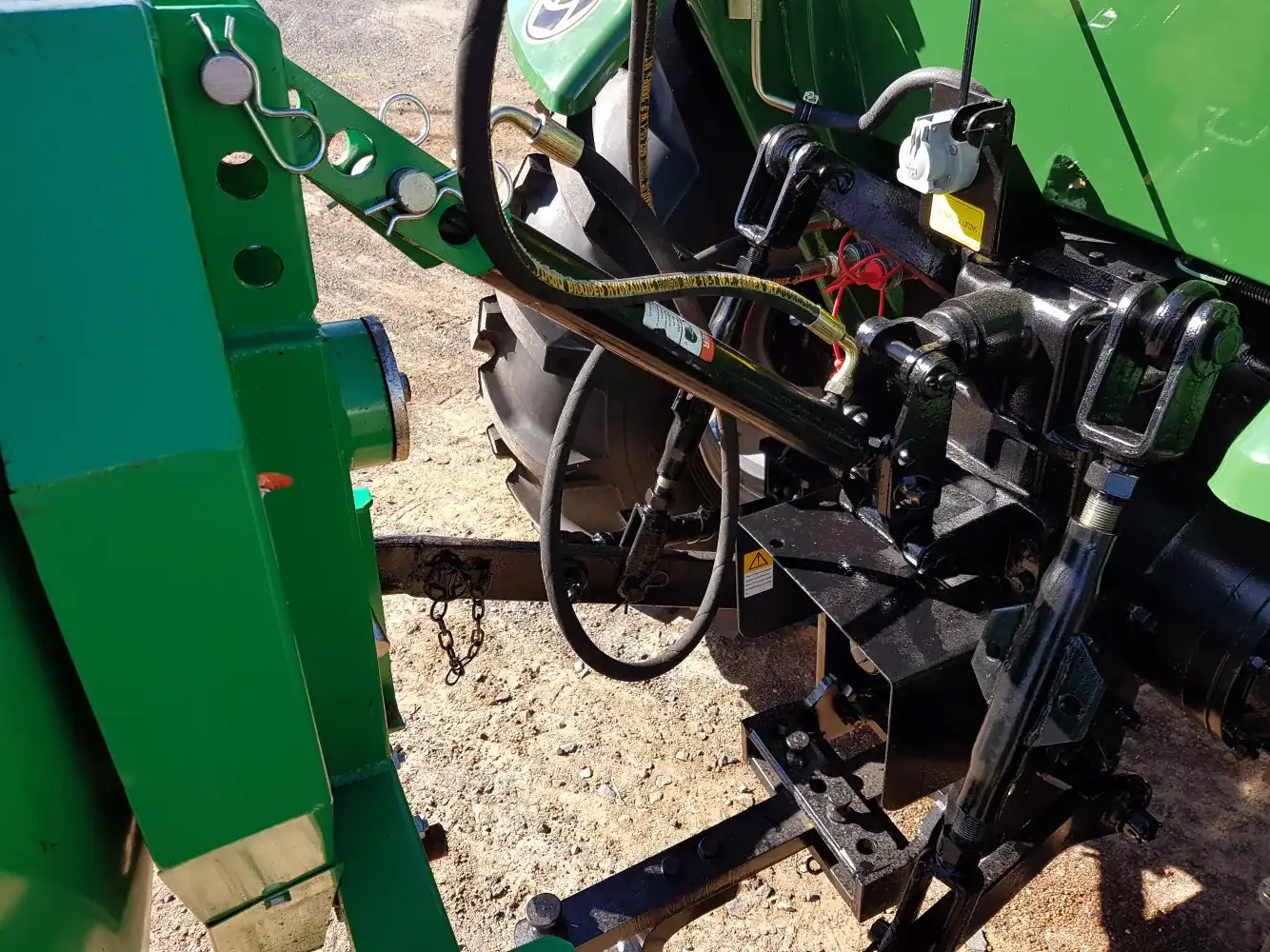

| 7. Adjustable Cat.1 hitch allows easy hook up to most tractors. | |
| 8. Sealed ball bearings provide long service life with reduced maintenance | |
| Model | AKCM |
| Capacity | five cu./ft.(1 bag mix) |
| Drum opening | 17.5”/444mm |
| Diameter of drum | 17.5”/444mm |
| Drum construction | 2-piece bolted |
| PTO speed | 540rpm |
| Drum drive | chain |
| Drive ratio | 8.77:1 |
| Hydraulic top link positions | three |
| Hitch requirement | Cat.1(7/8′ Diameter.lift pins) |
| Hydraulic top link cylinder type | double acting |
| Lower pull pin positions | four |
| Parking stands | standard |
| Matched power | 25-100hp |
| Net weight | 105kg |
| Tractor Cement Mixer for use with these tractors and others – (click on item for details) | |||
| 90hp tractor AK904 | 75hp tractor AK754 | 65hp tractor AK654 | |
Tractor Concrete Mixer is, indeed, a piece of equipment that is powered by the power take-off (PTO) of a tractor. Furthermore, it is designed to mix cement, aggregate such as sand or gravel, and water to form concrete. Additionally, the mixer is usually mounted on the tractor’s three-point hitch for easy operation. Consequently, the PTO cement mixer is a versatile piece of equipment that is perfect for small to medium-sized construction projects, such as repairing driveways, sidewalks, patios, and more.
Tractor Cement Mixer Applications:
First, mixing concrete for foundations and footings; next, mixing grout or mortar for brick or block walls; furthermore, mixing concrete for driveways, slabs, and patios; in addition, mixing concrete for retaining walls; moreover, preparing concrete for resurfacing projects; additionally, mixing concrete for pool decks and other outdoor areas; similarly, mixing concrete for barn floors and other animal enclosures; finally, mixing concrete for sidewalks, curbs, and other pavement areas
